Hardware options installation 31
4.

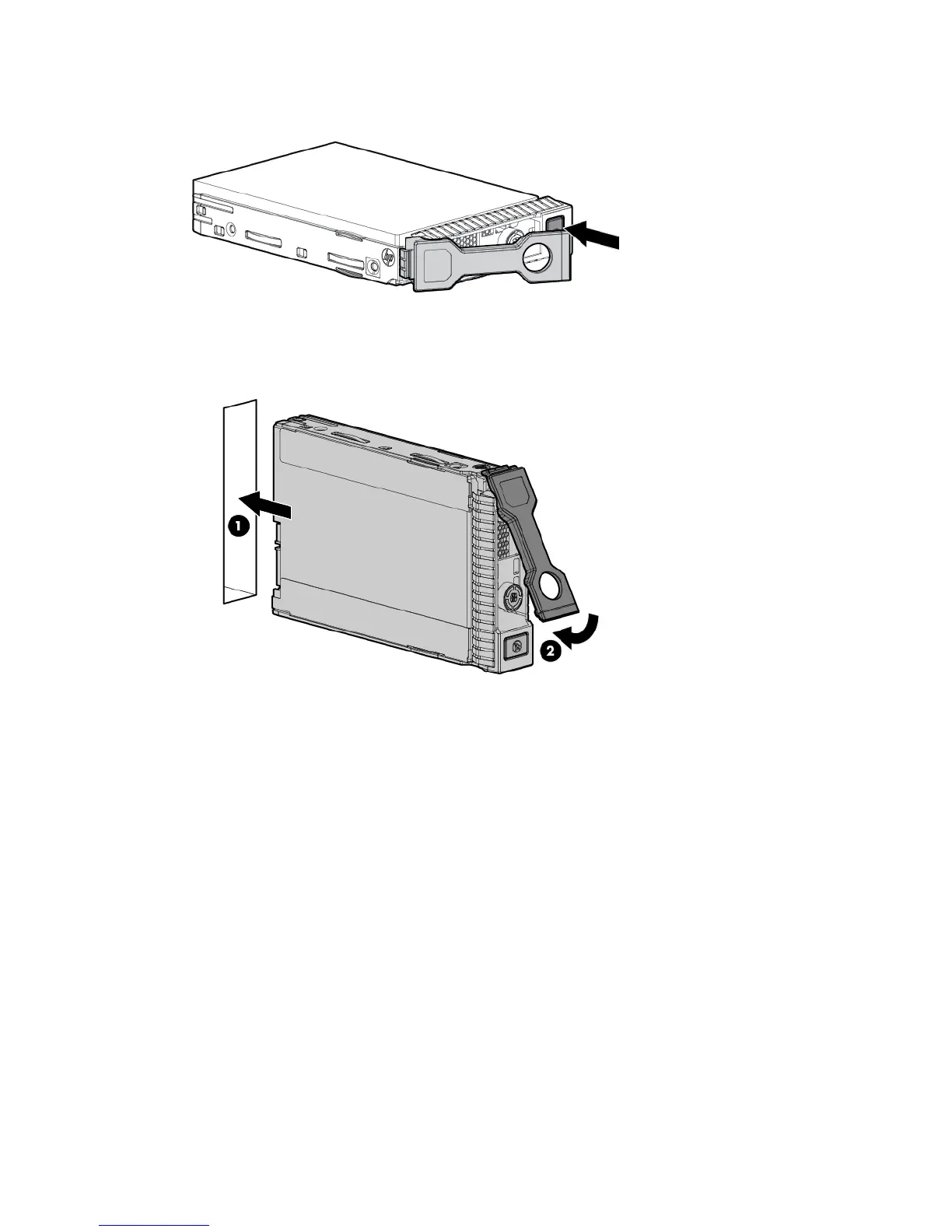

Prepare the drive.
5. Install the drive.
6. Determine the status of the drive from the drive LED definitions.
7. Close and lock the tower bezel.
Drive cage options
Four-bay LFF hot-plug drive backplane option
To install the component:
1. Power down the server (on page 16).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Remove the tower bezel (on page 17).
