Hardware options installation 35
9.

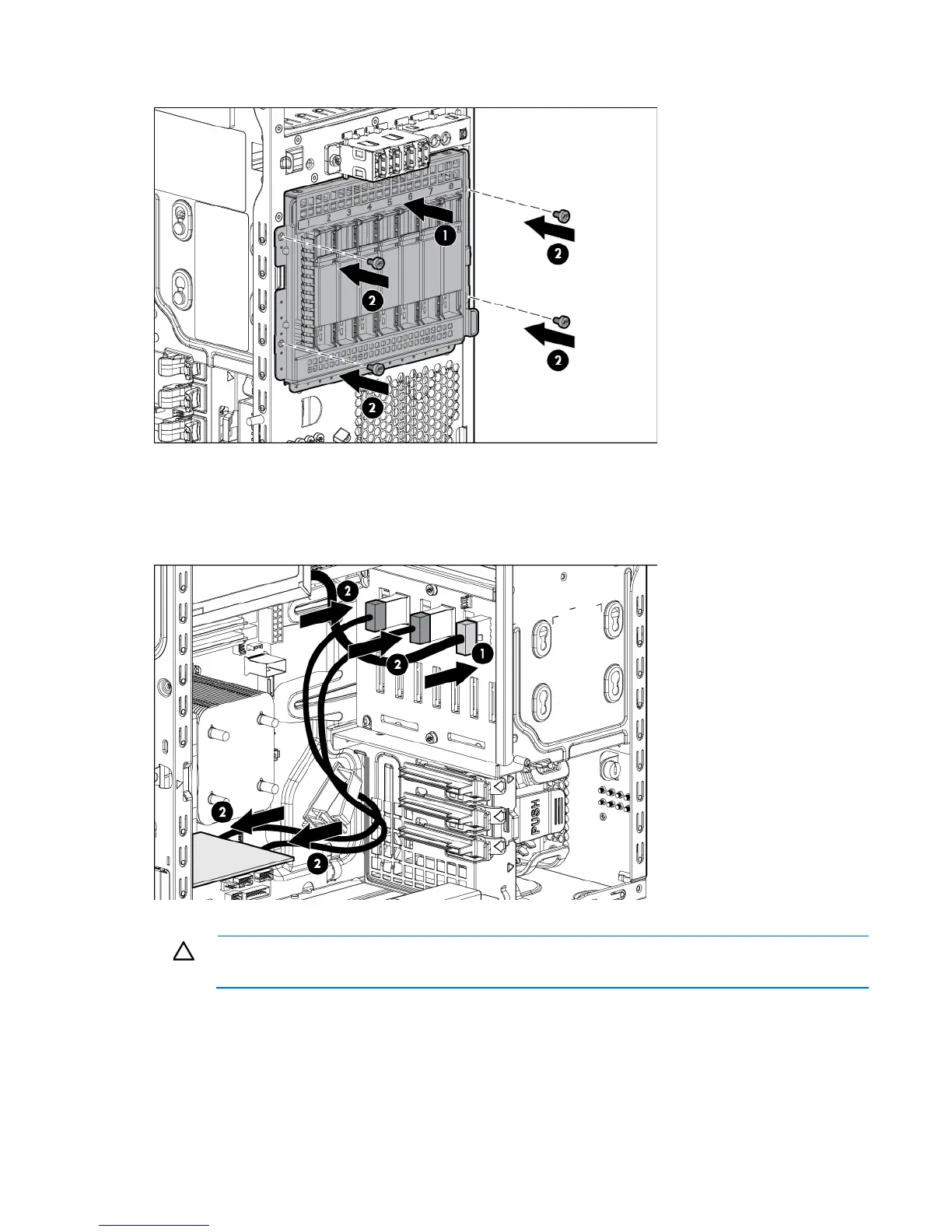

Install the SFF drive cage assembly.
10. Connect the drive backplane cables:
a. Connect the power cable to the backplane.
b. Connect the Mini-SAS cables to the backplane and to an optional Smart Array controller.
For cable routing information, see "Eight-bay SFF drive cabling (on page 62)."
11. Install the drives ("Drive options" on page 28).
CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless
all bays are populated with either a component or a blank.
12. Install the air baffle (on page 20).
13. Install the access panel (on page 19).
14. Install the tower bezel (on page 17).
15. Connect each power cord to the server.
