Hardware options installation 56

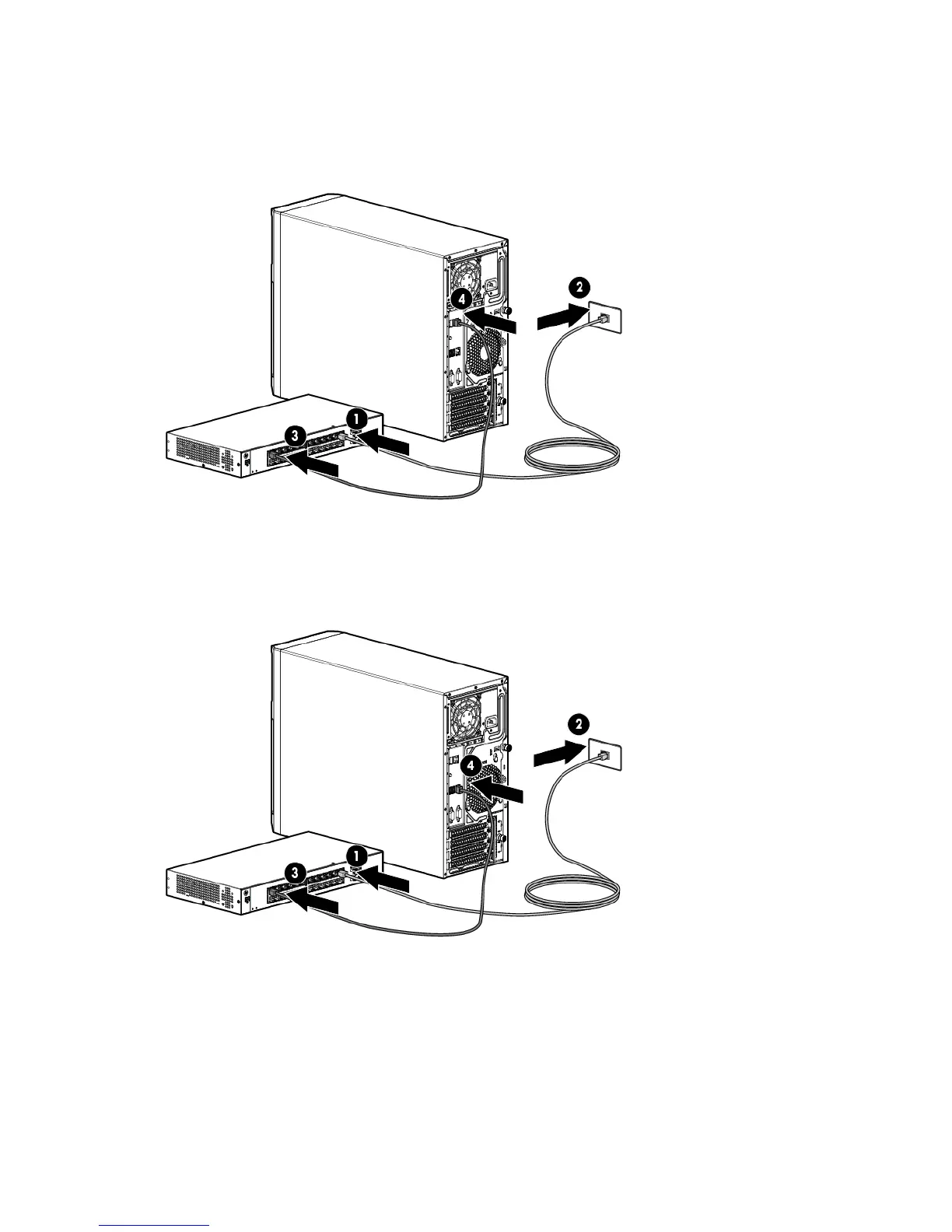

To establish a simple Ethernet connection:
1. Connect an Ethernet cable to the switch, and then connect the cable to a network jack.
2. Connect an Ethernet cable to the server NIC connector 1 or 2.
3. Connect the cable to any switch network port.
To establish an Ethernet connection with iLO functionality by using the dedicated iLO connector:
1. Connect an Ethernet cable to the switch, and then connect the cable to a network jack.
2. Connect an Ethernet cable to the server dedicated iLO connector, and then connect the cable to any
switch network port.
To establish an Ethernet connection with iLO functionality by using the shared iLO connector:
1. Access the iLO RBSU by rebooting the server, and then pressing F8 during POST.
