Hardware Options Installation 49
5. Open the DIMM slot latches.

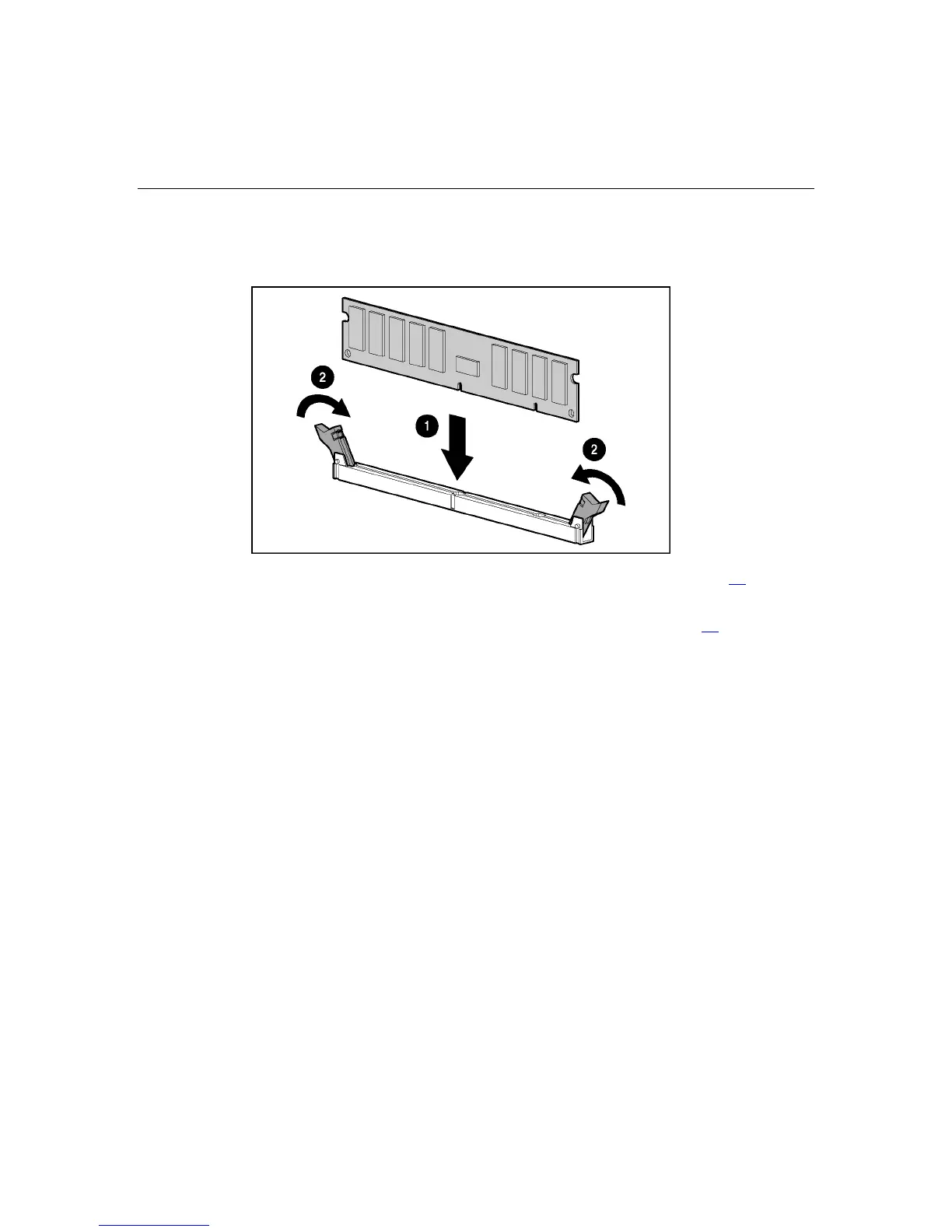

6. Install the DIMM.
7. Replace the front bezel ("Removing Front Tower Bezel" on page 23
), if
applicable.
8. Replace the access panel ("Removing Access Panel" on page 23
).
Interleaving and Non-Interleaving Memory Configuration
This server supports both interleaving and non-interleaving memory
configurations. Interleaving memory increases bandwidth by allowing
simultaneous access to more than one block of data (for example, overlapping
Read-Writes). This is accomplished by dividing the system memory between
pairs of DIMMs and Writing-Reading blocks of data to/from both
simultaneously. In order to take advantage of memory interleaving, identical
DIMMs must be installed in pairs. DIMMs can also be installed singularly in slot
1 only if memory interleaving is not desired.
