HP ProLiant s6500 Chassis - Page 26

Installing components 26
2.
Loosen the screws that secure the center wall to the bottom of the chassis.

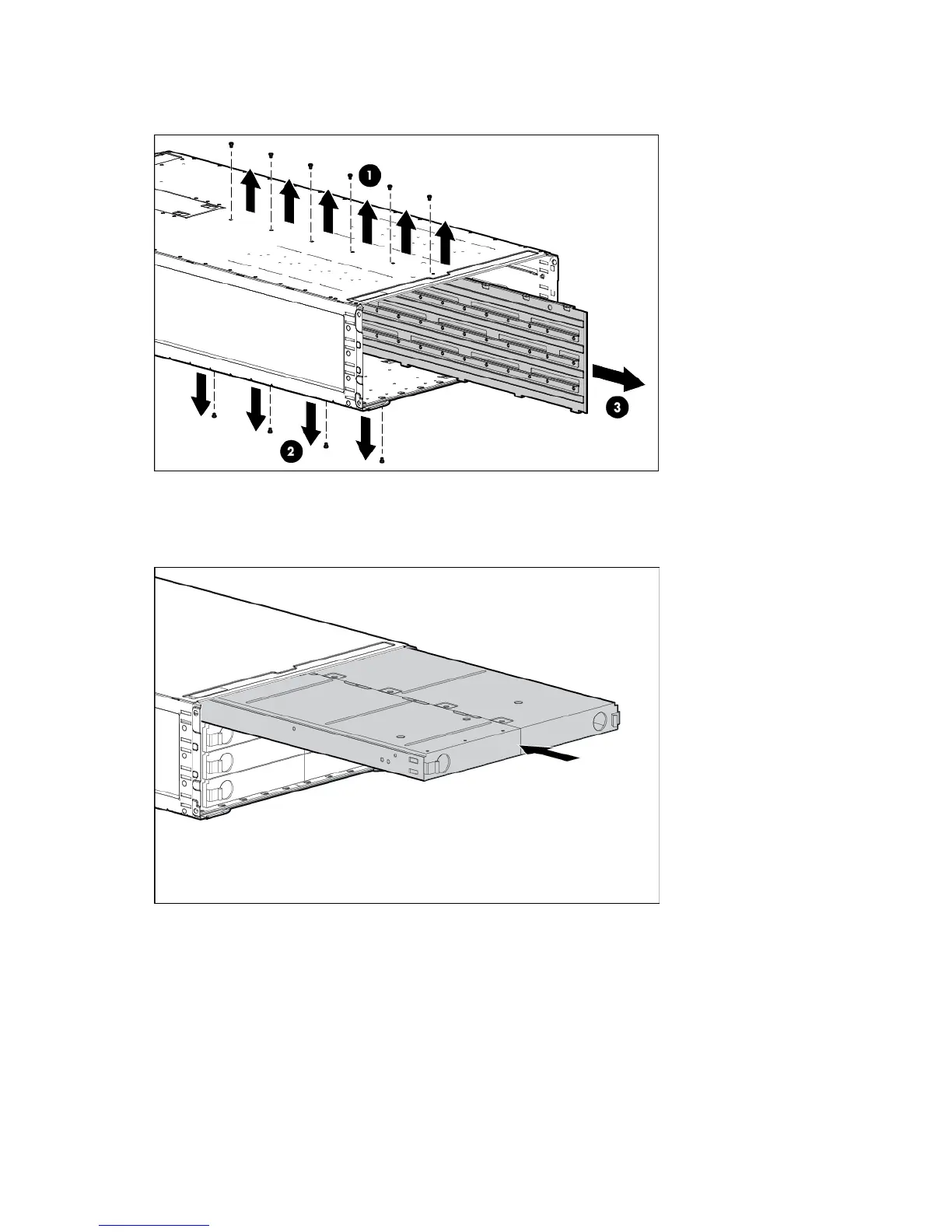

3. Slide the center wall in the direction of the arrow indicated in the following figure.
4. Rotate the center wall.
5. Remove the center wall from the chassis.
6. Install the full-width tray or blank.
