Standard Operation Procedure
Tabulator： Issue Department：
Xin-Xin Chen NPSU-PPE
Auditor ：
Ethan Lai
Steps：
Document No. : Pyxis400 DISASS’Y SOP Station :
Operation Name : Ver. : Date :
Note: If finding anything uncommon, notice foreman or assistant at once.
Fixture list (Specification)
Qty.
Fixture list (Specification)
Qty.
4(1/1)
2017/5/23
1.00
Glove Requirements: Full-fingered gloves
Electric Screwdriver (S-6000MS) 1
Bits Type: T15,φ=5mm,L=60mm 1
Take out Thermal Module

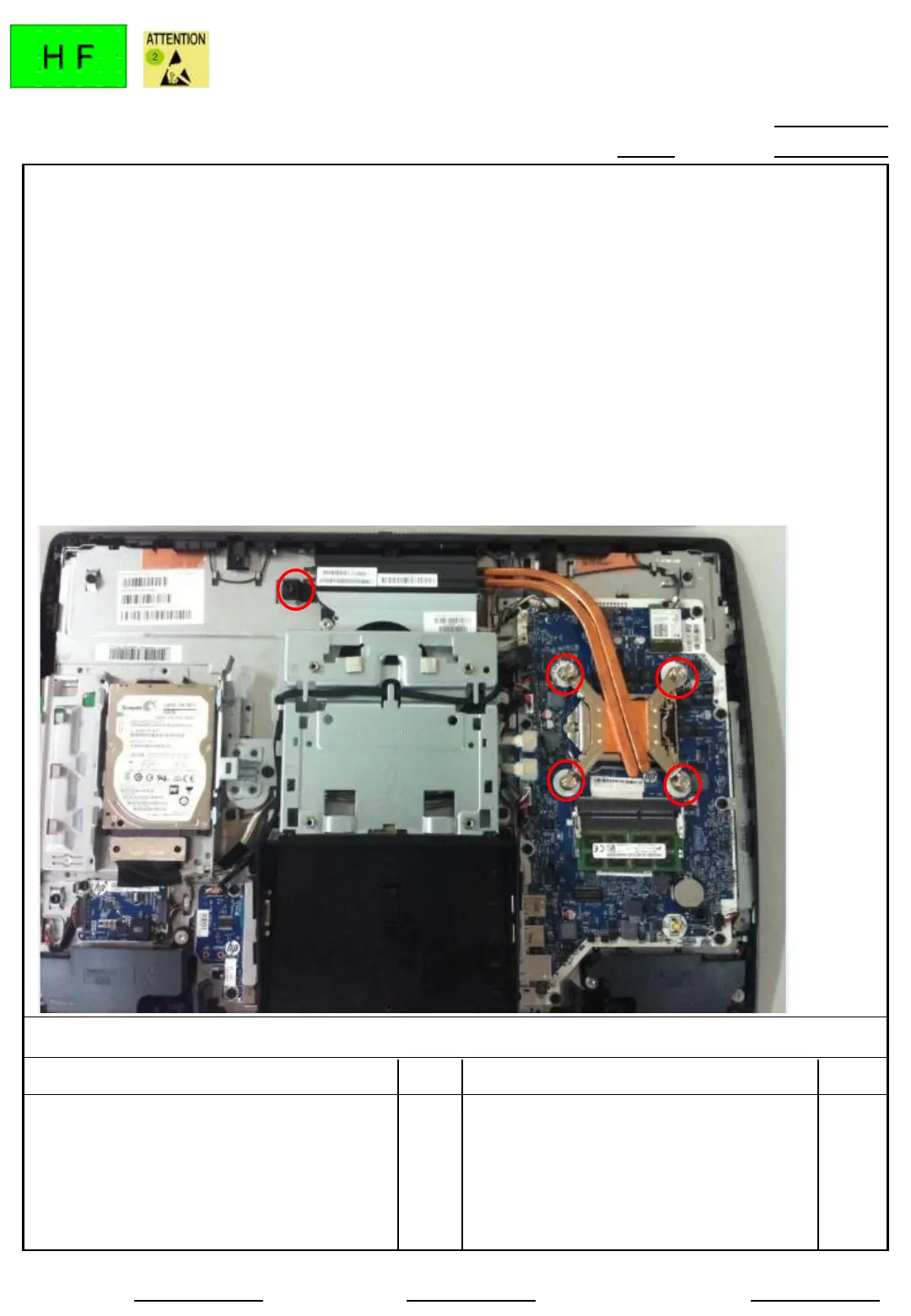

Fig. 1
1. Unscrew (Torx Pin-Head × 5) all joints to take
out Thermal Module (Fig. 1).
Torsion: 4.0 ± 1.0 kgf.cm
Take the screwdriver vertically to the screw
holes.
2. Put Thermal Module into the material box.
To Next Page
