HP ProOne 600 G3 Disassembly Instructions

Standard Operation Procedure
Tabulator： Issue Department：
Xin-Xin Chen NPSU-PPE
Auditor ：
Ethan Lai
Steps：
Document No. : Pegasus600 DISASS’Y SOP Station :
Operation Name : Ver. : Date :
Note: If finding anything uncommon, notice foreman or assistant at once.
Fixture list (Specification)
Qty.
Fixture list (Specification)
Qty.

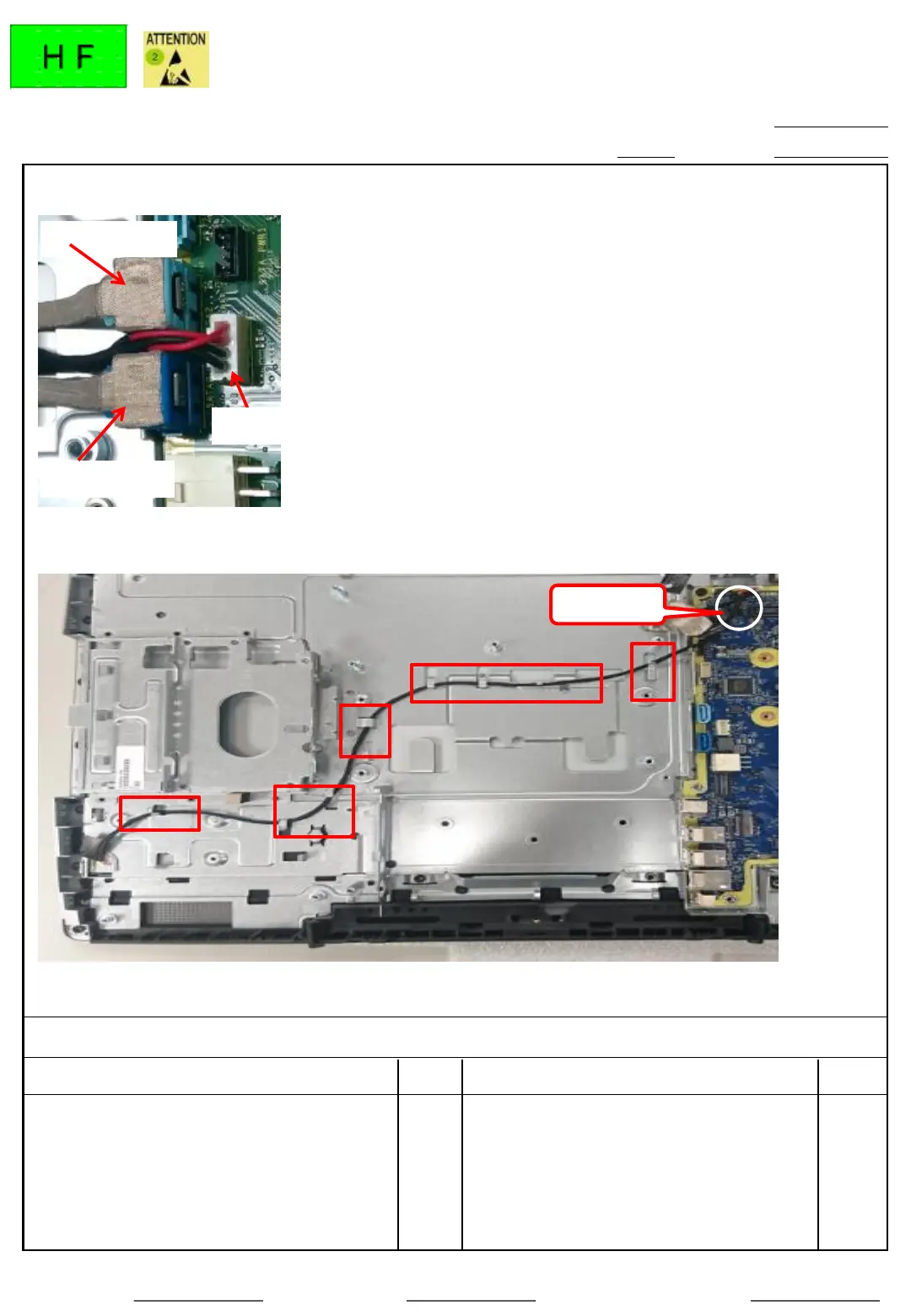

Disconnect cables
15(1/1)
2017/5/23
1.00
1. Disconnect ODD SATA cable, HDD SATA
cable and Power cable from the connectors
of M/B side (Fig. 2).
2. Pull out Backlight cable from the hooks, then
pull out it vertically from the top of connector
on M/B (Fig. 1).
 Be careful not to make the pin heads of the
connector are crooked.
Glove Requirements: Half-finger gloves
Fig. 1
Fig. 2
白線
HDD SATA
ODD SATA
Power
CNTR
