HP ProOne 600 G3 Disassembly Instructions

Standard Operation Procedure
Tabulator： Issue Department：
Xin-Xin Chen NPSU-PPE
Auditor ：
Ethan Lai
Steps：
Document No. : Pegasus600 DISASS’Y SOP Station :
Operation Name : Ver. : Date :
Note: If finding anything uncommon, notice foreman or assistant at once.
Fixture list (Specification)
Qty.
Fixture list (Specification)
Qty.
6(1/1)
2017/5/23
1.00
Glove Requirements: Half-fingered gloves
Electric Screwdriver (S-3000MS) 1
Bits Type: #0,φ=5mm,L=60mm 1

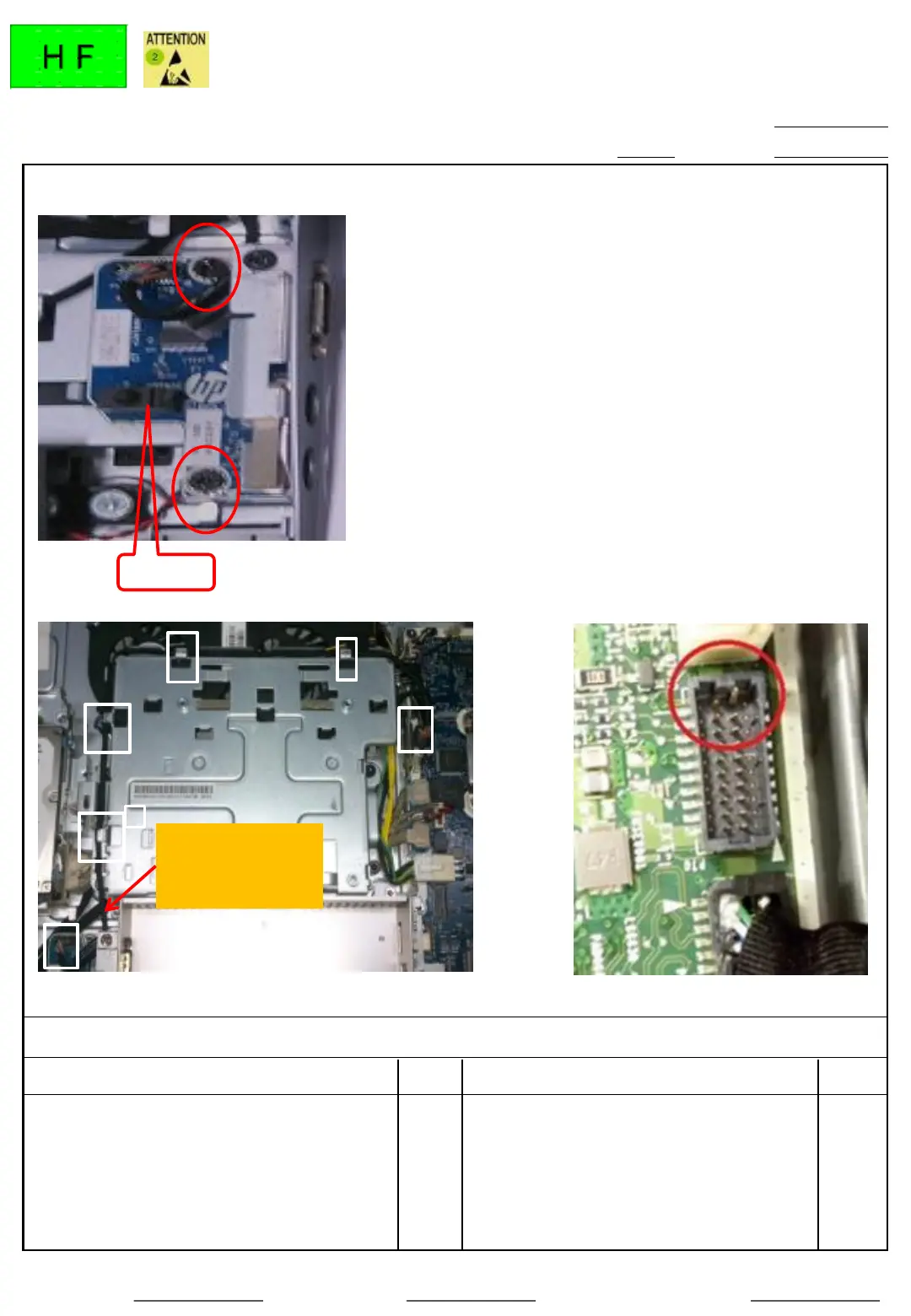

Take out I/O board
Fig. 2
1. Unscrew (× 2) all joints to take out I/O board
and disconnect I/O cable (Fig. 1, 2).
 Torsion: 4.0 ± 1.0 kgf.cm
 Take the screwdriver vertically to the screw
holes.
 Put I/O board and two screws into the
material box.
 Switch can’t fall off.
2. Be careful not to make the pin heads of the
I/O connector are crooked (Fig. 3).
 Pull out the I/O cable vertically from the top
of the I/O connector.

Fig. 1
Fig. 3
Switch
Follow the
routing to pull
out I/O cable
