HP ProOne 600 G3 Disassembly Instructions

Standard Operation Procedure
Tabulator： Issue Department：
Xin-Xin Chen NPSU-PPE
Auditor ：
Ethan Lai
Steps：
Document No. : Pegasus600 DISASS’Y SOP Station :
Operation Name : Ver. : Date :
Note: If finding anything uncommon, notice foreman or assistant at once.
Fixture list (Specification)
Qty.
Fixture list (Specification)
Qty.
Take out DDR and CPU
1
7(1/1)
2017/5/23
1.00
Ion fan 1
Glove Requirements: Half-finger gloves

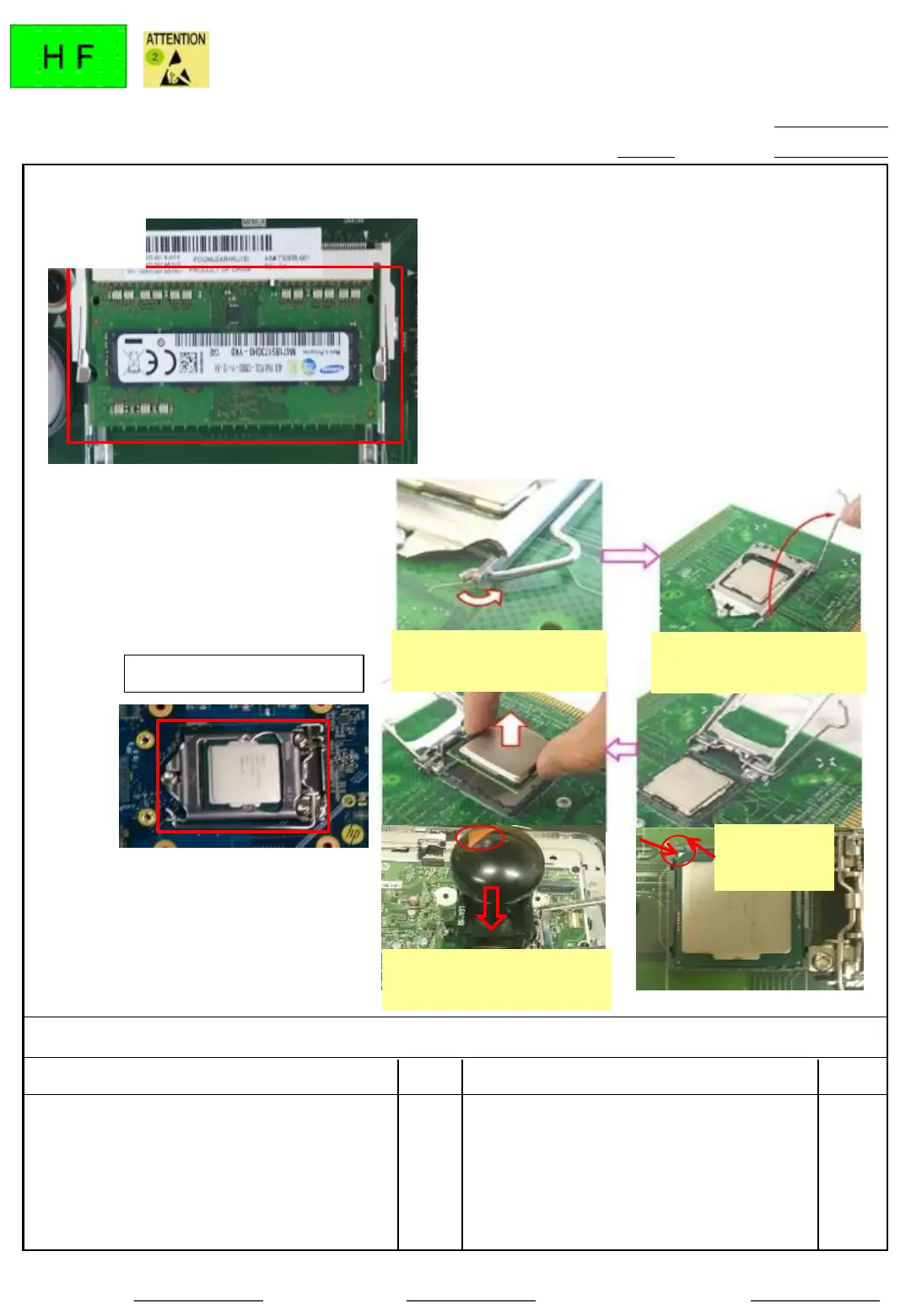

1. Take out DDR and put it into the material box
(Fig. 1).
 Expand the springs on the both sides of the
DDR socket.
2. Take out CPU illustrated as Fig. 2, then put it
into the tray.
 Don’t touch the pin heads of CPU.
 Open the bracket by pulling off the link and
take out CPU.
Fig. 1
2. Open the bracket
by pulling off the link
1. Press the link and
push it to the right
Press the fixture, then
take out CPU vertically
CPU DISASS’Y steps:
Diagonally
consistent
Fig. 2
