2-21
Installing the switch
Installation procedure
PS1810-24G Switch

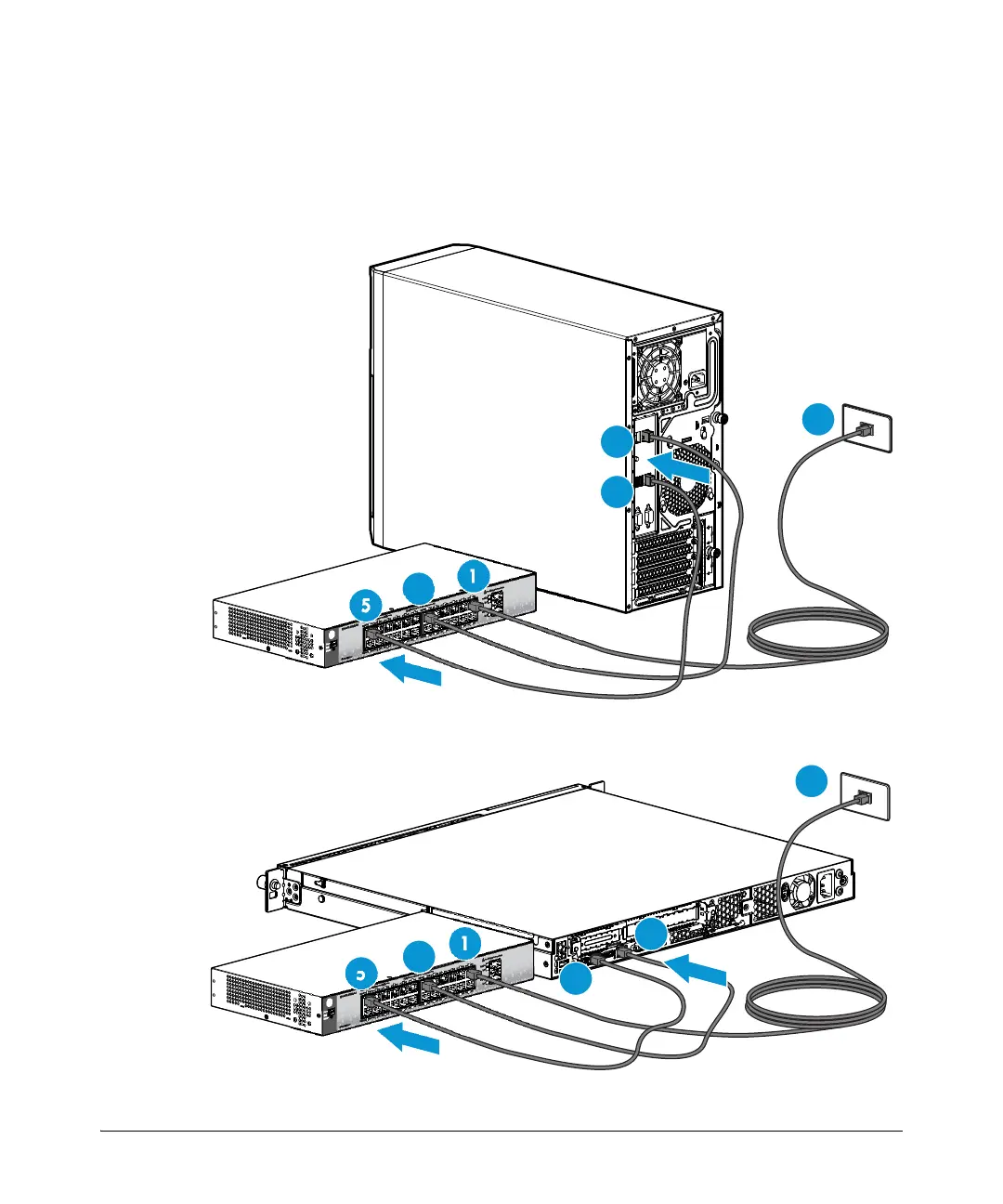

Connect the PS1810-24G Switch
to an HP ProLiant ML310e Gen8 v2 Server or an
HP ProLiant DL320e Gen8 v2 Server
.
HP ProLiant ML310e Gen8 v2 Server
HP ProLiant DL320e Gen8 v2 Server
1
3
2
4
6
5
1
3
2
4
6
5
32
34
