933582-001 for gray models
L16702-001 for pink models
L16707-001 for purple models

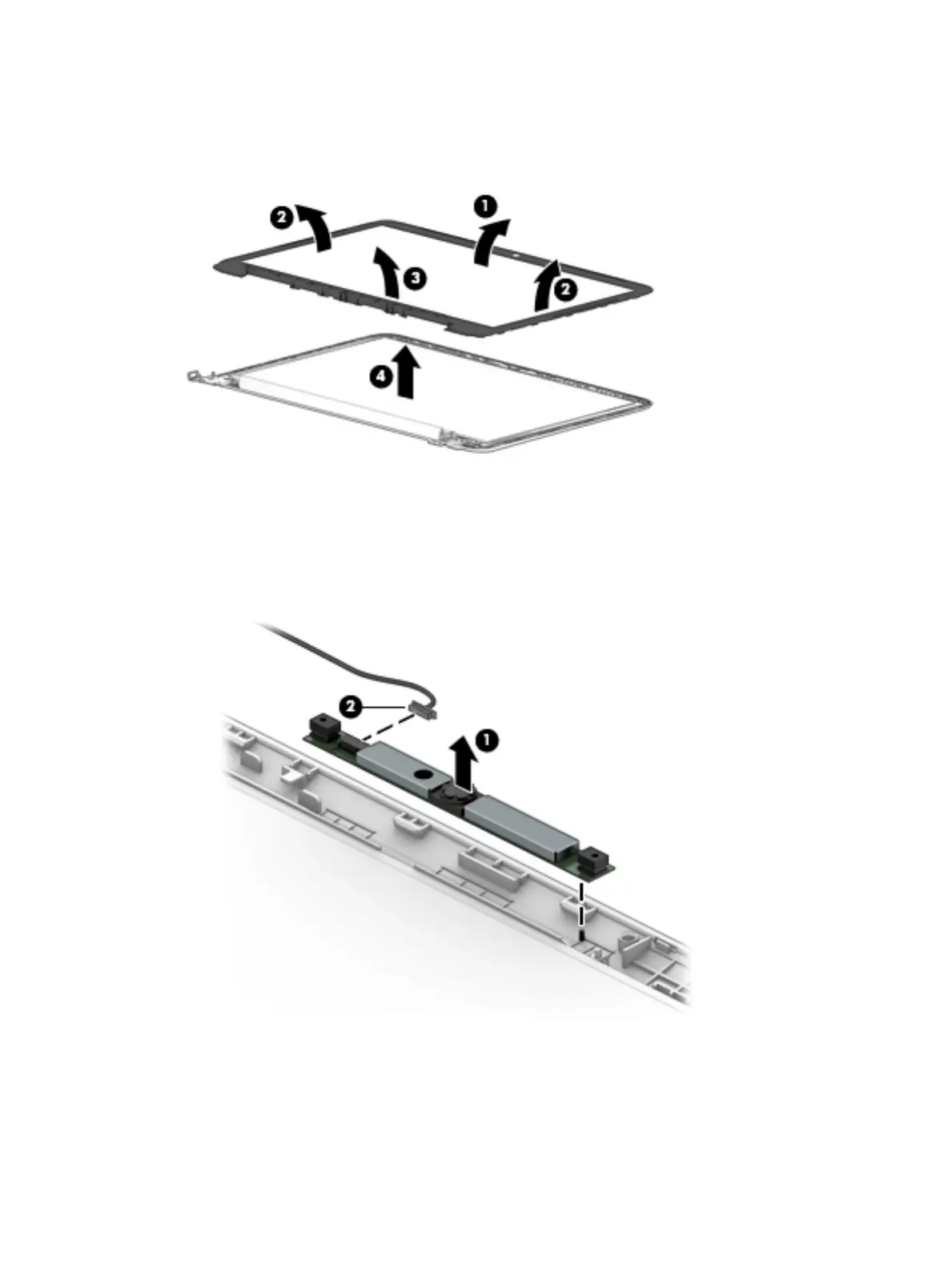

5. If it is necessary to replace the webcam/microphone module:
a. Detach and lift the module (1) from the display back cover. (The webcam/microphone module is
attached to the display back cover with double-sided adhesive.)
b. Disconnect the webcam/microphone module cable (2) from the module.
The webcam/microphone module is available using spare part number 766523-025.
6. If it is necessary to replace the display panel:
a. Remove the four Phillips PM2.0×3.0 screws (1) that secure the display panel to the
display back cover.
38 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
