Replacing the access panel

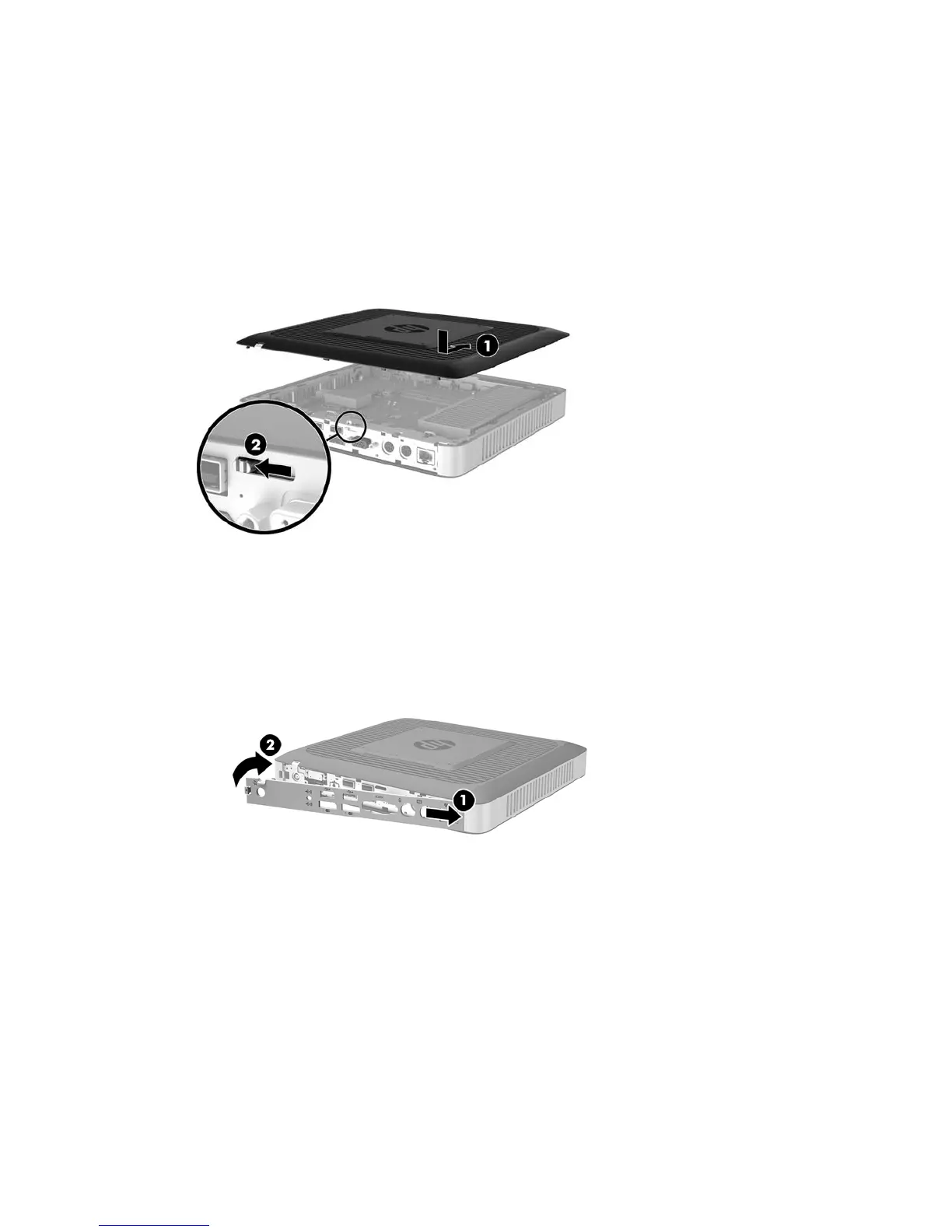

To replace the access panel:
1. Position the access panel on the chassis, approximately 6 mm (.24 in) inside the edge of the chassis. Slide
the panel toward the front of the chassis (1) until it locks into place.
2. Move the access panel latch (2) to the left to secure the access panel.
3. Insert the hooks on the right side of the rear I/O panel (1) into the right side of the back of the chassis,
rotate the left side (2) to the chassis, and then press it to the chassis until it locks in place.
12 Chapter 3 Hardware changes
