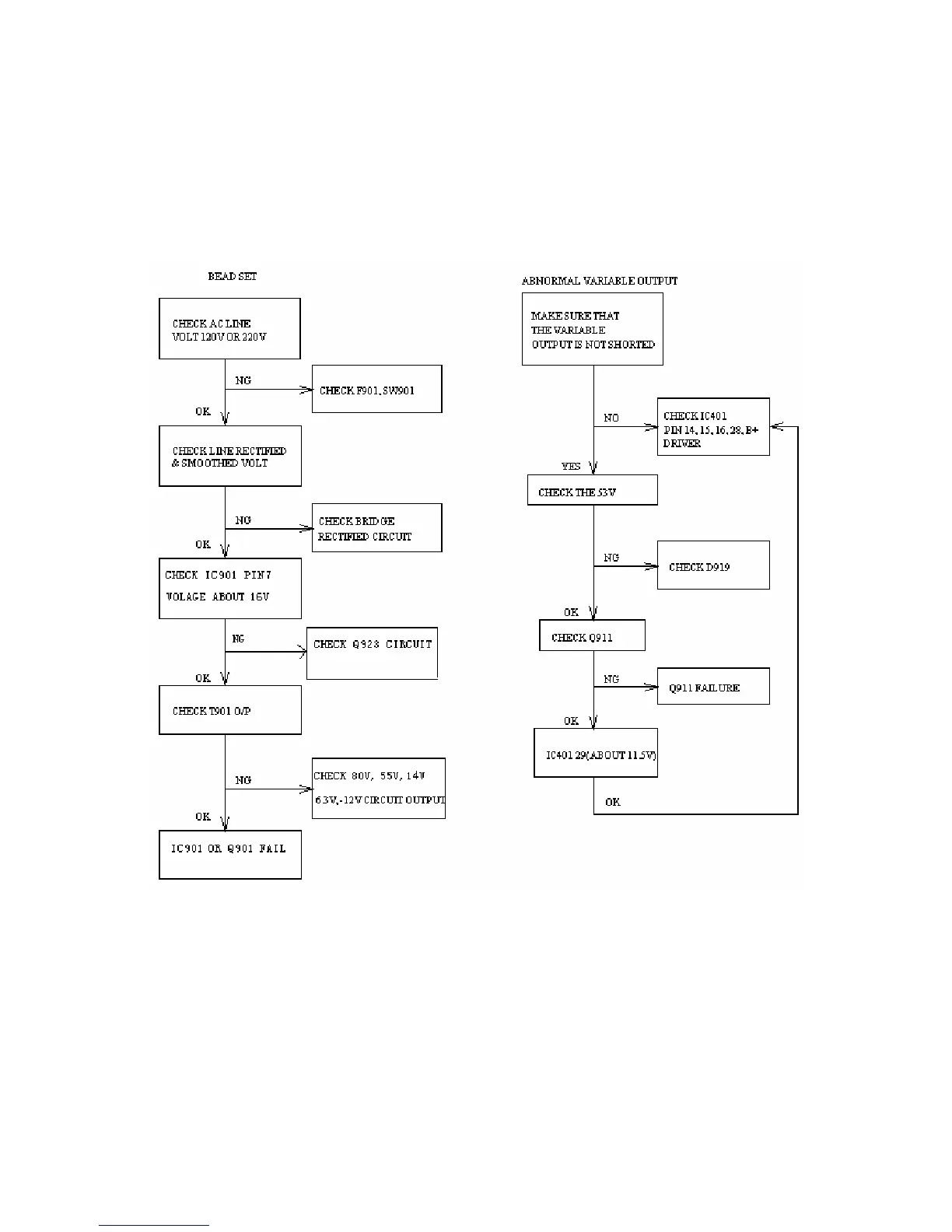

6-9 POWER SUPPLY TROUBLE SHOOTING CHART
BEFORE CHECK SW.REG. PLEASE REFER TO THE POWER SUPPLY BLOCK DIAGRAM
POWER SUPPLY OUTPUT: (A) VARIABLE OUTPUT : 65V ~ 165V
(DEPENDING EPENDING UPON H.SYNC FREQUENCY)
(B) CONSTANT OUTPUT : 6.3V, 14V, -12V, 80V
To Next Page
