HP Vp15 Service Manual

15" LCD Color Monitor HP VP15
17

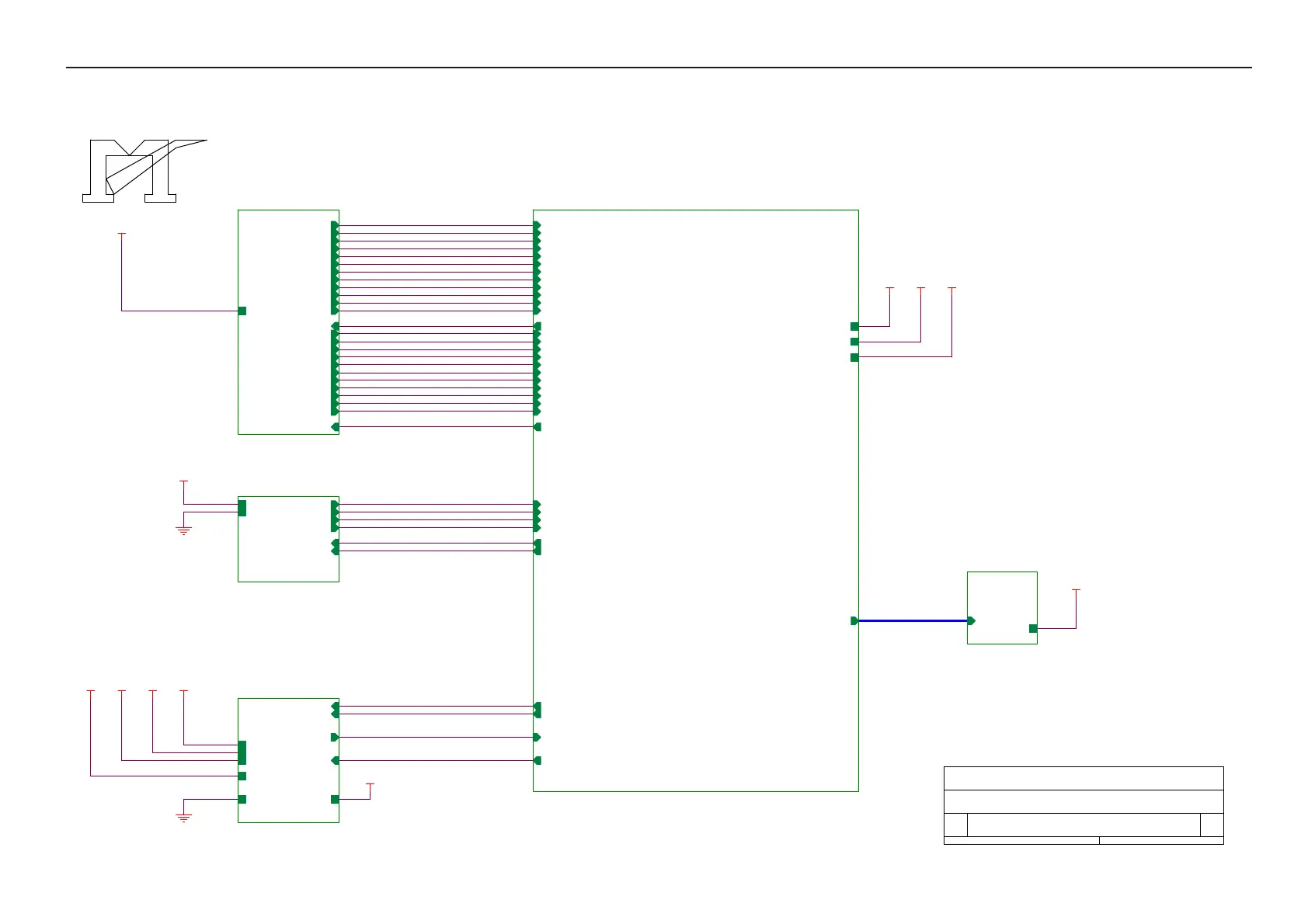

7. Schematic
7.1 Main Board
XGA/SXGA
B6
7.AUDIO
OUT-R-
OUT-R+
OUT-L+
OUT-L-
VCC5V
DGND
VOLUME
AUD IO_SD
VLCD
+5V
VCC5V
PA[0..9]
VCC1.8 VCC5V
+5V
VCC3.3
LVDS OUTPUT
B3
4.INPUT
RIN
GIN
BIN
VSY NC
GNDR
GNDG
GNDB
DET_VGA
HSYNC
SOG
B+
CLK-
DET_DVI
CLK+
R+
G+
R-
B-
G-
DDCA_SDA
DDCA_SCL
DDCD_SDA
DDCD_SCL
DDC_WP
+5V
HPD_CTRL
+5V
VLCD
VCC1.8
B4
5.SCALER
RIN
GIN
SOG
BIN
GNDR
GNDG
GNDB
HSYNC
VSYNC
Adj_BACKLIGHT
VCC1.8
Vcc3.3
VCTRL
R+
R-
G-
G+
B+
B-
CLK+
CLK-
DDCD_SDA
DDCD_SCL
DET_DVI
DDCA_SDA
DDCA_SCL
DET_VGA
on_BACKLIGHT
on_Panel
+5V
DDC_WP
PA[0..9]
HPD_CTRL
OUT-R-
OUT-R+
OUT-L+
OUT-L-
VOLUME
AUD IO_SD
B5
6.PANEL INTERFACE
VLCD
PA[0..9]
G2252-1-X-X-2-070313
F
TOP
AOC (Top Victory) Electronics Co., Ltd.
B
1
7
Wednesday , March 14, 2007
Title
Size Document Number Rev
Date: Sheet
of
B2
3.POWER
on_Panel
on_BACKLIGHT
Adj_BACKLIGHT
VCC1.8
VLCD
+5V
VCTRL
VCC3.3
VCC5V
DGND
HP VP15 TSUM16AWK-LF SCHEMATIC
VCC3.3
