HP Vp15 Service Manual

15" LCD Color Monitor HP VP15
25

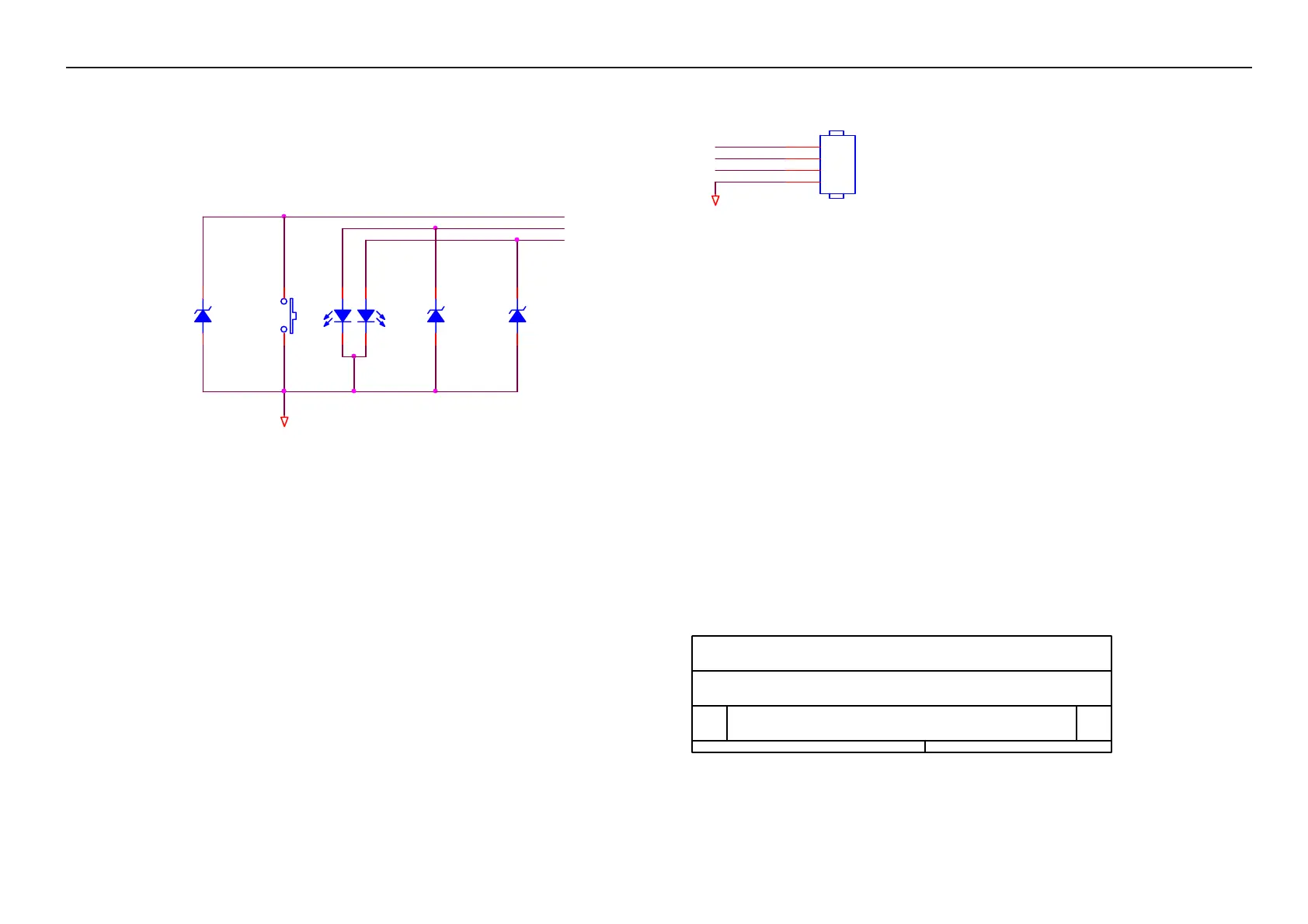

7.3 Key Board
LED_GRN/BLUE
GND
G2283-1-P-X-1-070414
1
Power Key
AOC (Top Victory) Electronics Co., Ltd.
A
2
2
Saturday , April 14, 2007
Tit le
Size Document Number Rev
Date: Sheet
of
LED001
LED
1 2
3 4
ZD005
NC
1 2
SW005
SW
POWER_ KEY
LED_ORANGE
ZD007
NC
1 2
ZD006
NC
1 2
GND
LED_GRN/BLUE
CN004
CONN
1
2
3
4
LED_ORANGE
POWER_ KEY
