17"
LCD
Color
Monitor
HP
W1707
10

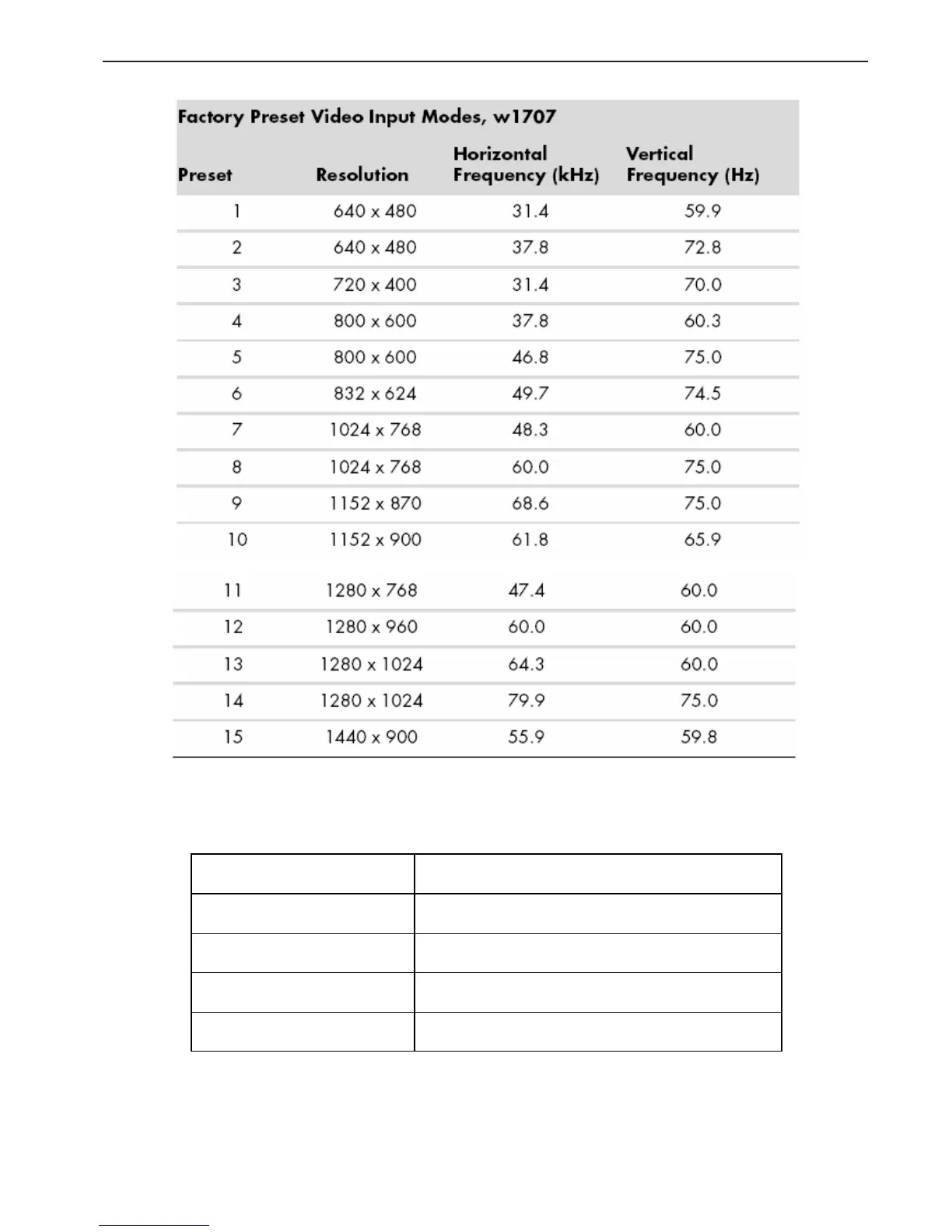

4.2 Factory Preset
Display Modes
4.3
Power
Supply
Requirements
Parameter
Range
AC Input V
oltage
90 to 265V
AC Input Frequency
45 to 63 Hz
Inrush Current
50A
MAX
A
T 220V
AC and 30A
A
T 120V
AC
Leakage Current
5 mA
MAX at 120V
AC
9
11
Table of Contents
Default Chapter
1
Table of Contents
1
Revision List
2
1 Monitor Specification
3
2 LCD Monitor Description
4
3 Operation Instruction
5
General Instructions
5
Control Button
5
Adjusting the Picture
6
4 Input/Output Specification
9
Input Signal Connector
9
Factory Preset Display Modes
10
Power Supply Requirements
10
5 Panel Specification
11
General Feature
11
Optical Characteristics
12
6 Block Diagram
13
Software Flow Chart
13
Electrical Block Diagram
15
7 Schematic
17
Main Board
17
Power Board
21
Key Board
24
8 PCB Layout
25
Main Board
25
Power Board
27
Key Board
28
IR Board
28
9 Maintainability
29
Equipments and Tools Requirement
29
Trouble Shooting
30
10 White-Balance, Luminance Adjustment
36
11 Mechanical Instructions
38
12 Monitor Exploded View
43
13 BOM List
44
14 Different Parts List
56
