17" LCD Color Monitor HP W1707
43

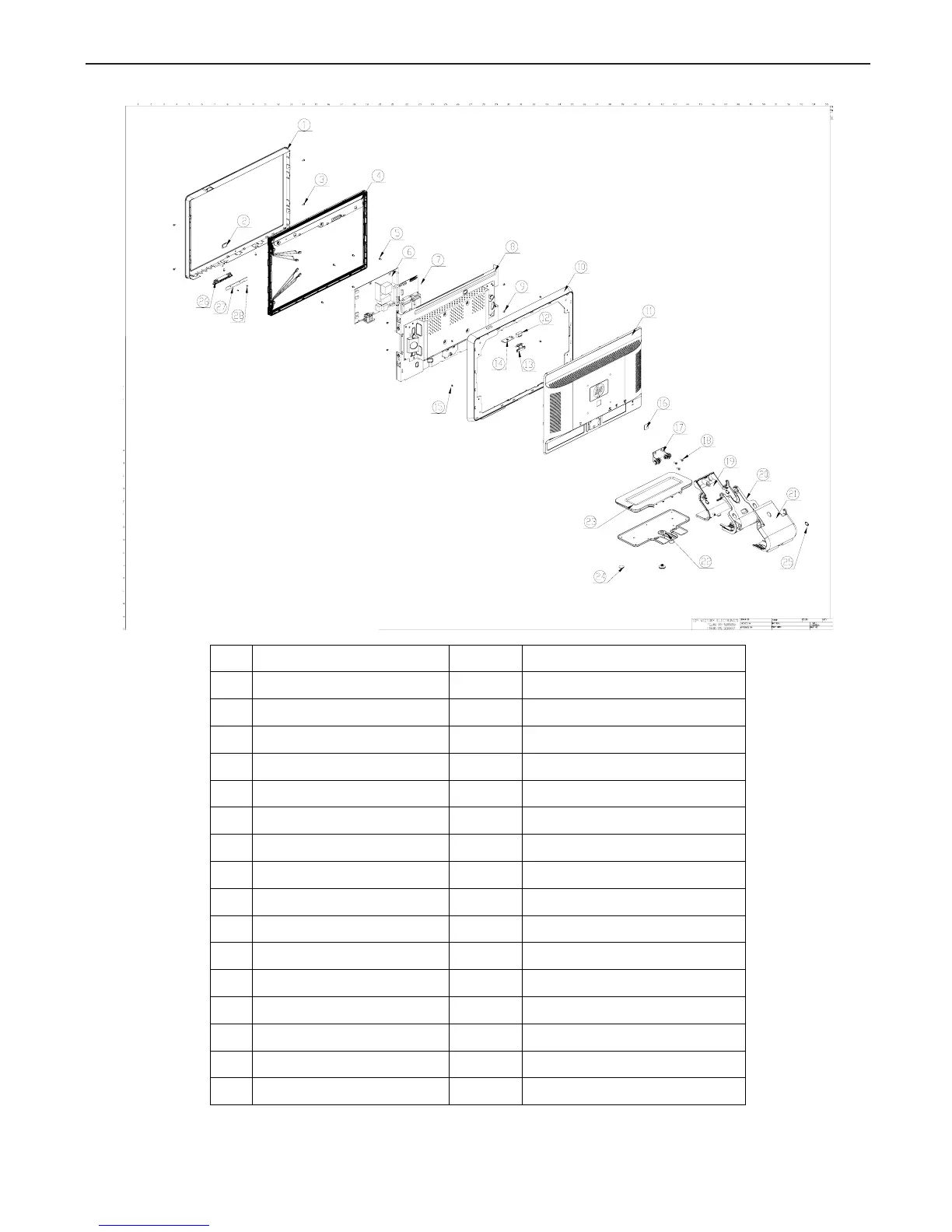

12. Monitor Exploded View
NO. Description NO. Description
1 BEZEL 17 HINGE
2 LOGO 18 SCREW
3 SCREW 19 BASE FRONT COVER
4 PANEL 20 BASE DIE CSTING
5 SCREW 21 BASE REAR COVER
6 POWER BOARD 22 BASE METAL
7 MAIN BOARD 23 BASE TOP COVER
8 MAIN FRAME 24 FOOT RUBBER
9 SCREW 25 RUBBER PLUG
10 REAR RING 26 KEY PAD
11 REAR COVER 27 KEY BOARD
12 POWER BUTTON 28 SCREW
13 POWER DIFFUSER 29 EPE BAG FOR MONITOR
14 IR BOARD 30 EPE BAG FOR BASE
15 SCREW 31 MYLAR
16 GATE PLUG 32 EPS(L/R)
