17" LCD Color Monitor HP W1707
11
5. Panel Specification
LM171WX3-TLB2 is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent
Lamp(CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive
type display operating in the normally white mode. It has a 17.1 inch diagonally measured active display area with
WXGA+ resolution (1440 vertical by 900 horizontal pixel array) Each pixel is divided into Red,Green and Blue
sub-pixels or dots which are arranged in vertical stripes.

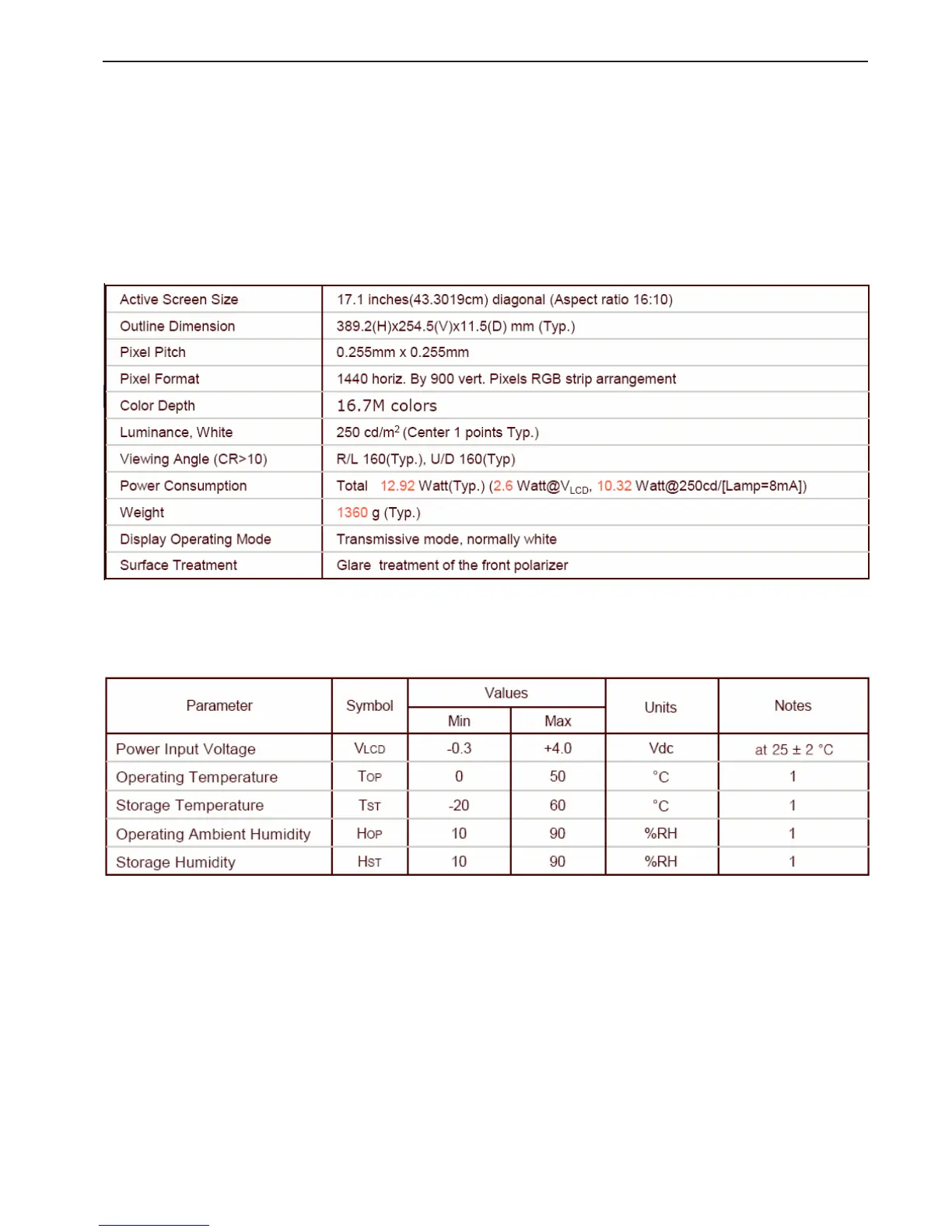

5.1 General Feature
Absolute Maximum Ratings
