Setting Up the Monitor
User’s Guide 3–5
Preparing the cantilever-base monitor for wall-mounting
1. Disconnect the power cable and any other cables from the monitor.
2. Remove the monitor base. Refer to “Removing the Monitor Base.” Keep the monitor panel screen down on a flat,
soft area.

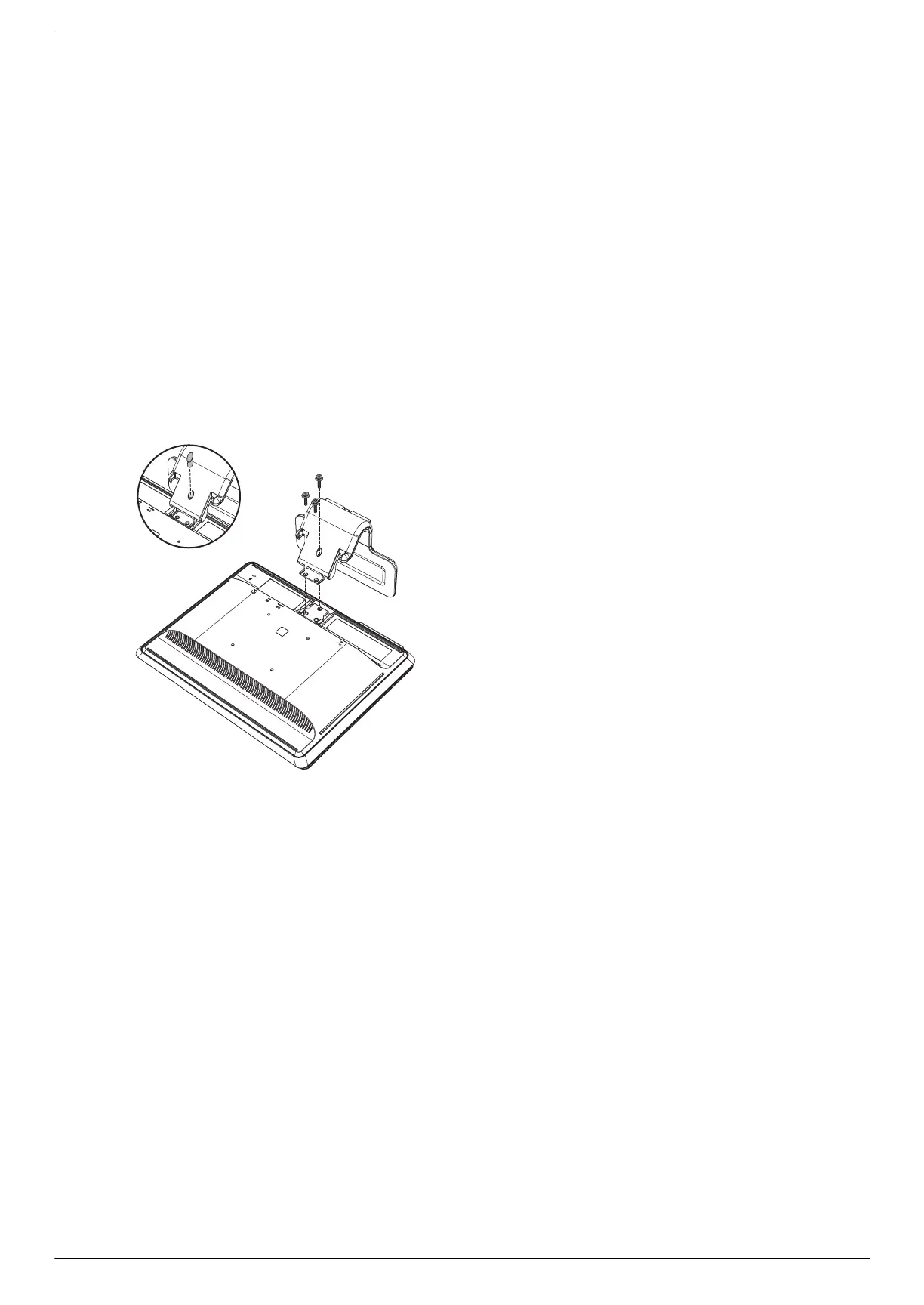

3. After the base is removed, remove the rubber plug on the neck of the monitor. You will see a screw below the
rubber plug and two additional screws on the panel.
4. Remove all three screws.
5. Remove the neck from the monitor.
6. Save the removed items (rubber plug, screws, neck, and base) for future use.
7. Follow the instructions included with the mounting fixture to ensure that the monitor is safely attached.
The four-threaded mounting holes that are on the back of the panel are compliant with the VESA standard for
mounting flat-panel monitors. The vp15 monitor uses the 75 mm spacing standard, while the other models use the
100 mm spacing standard.
Use the four holes to attach a swing arm or other mounting fixture.
