Connector Pin Assignments

Maintenance and Service Guide B–3

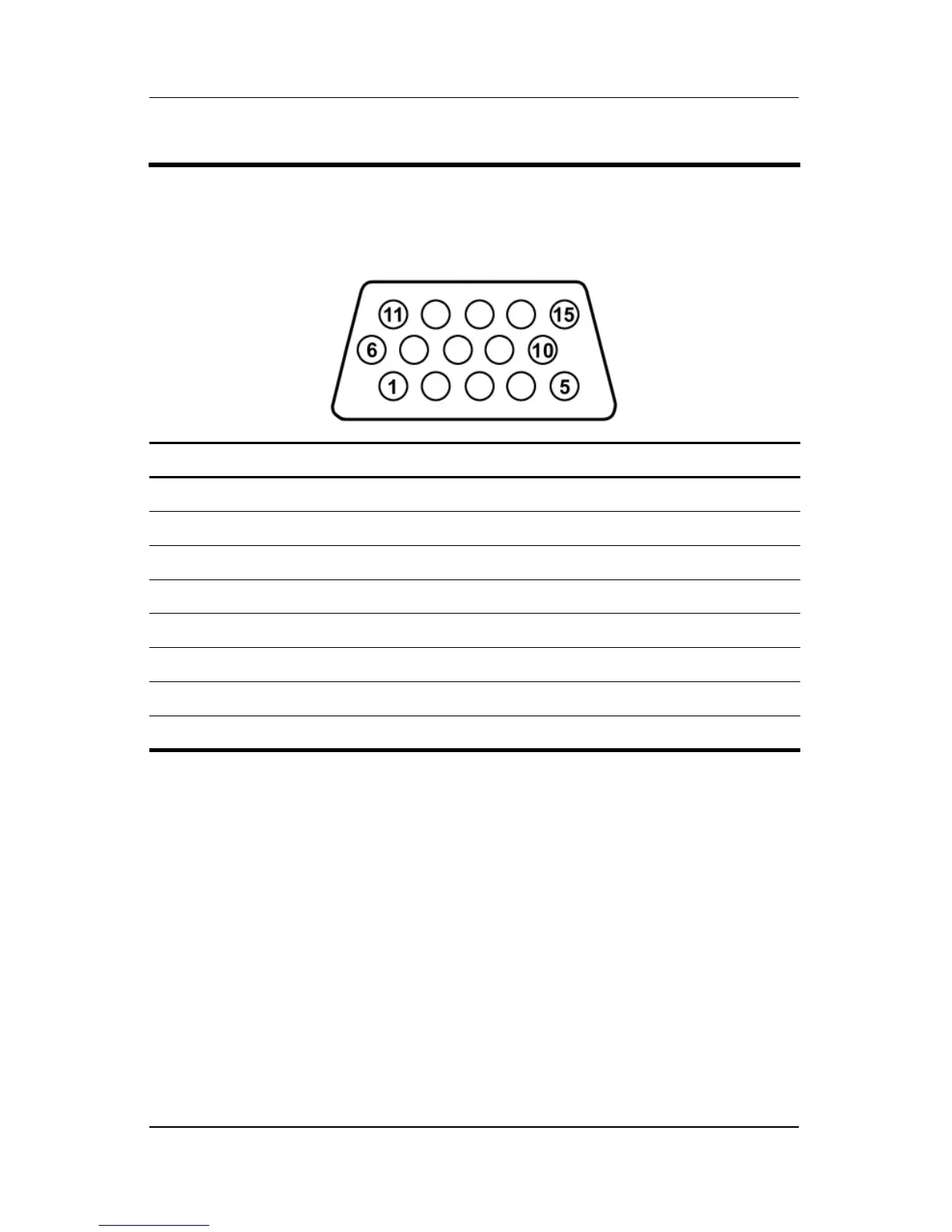

Table B-3

External Monitor Port

Pin Signal Pin Signal

1 Red analog 9 +5 VDC

2 Green analog 10 Ground

3 Blue analog 11 Monitor detect

4 Not connected 12 DDC 2B data

5 Ground 13 Horizontal sync

6 Ground analog 14 Vertical sync

7 Ground analog 15 DDC 2B clock

8 Ground analog
