14. To use the Driver Disk during the installation process, begin the installation with “boot: linux dd” and
follow the installation instructions.
NIC LED behaviors

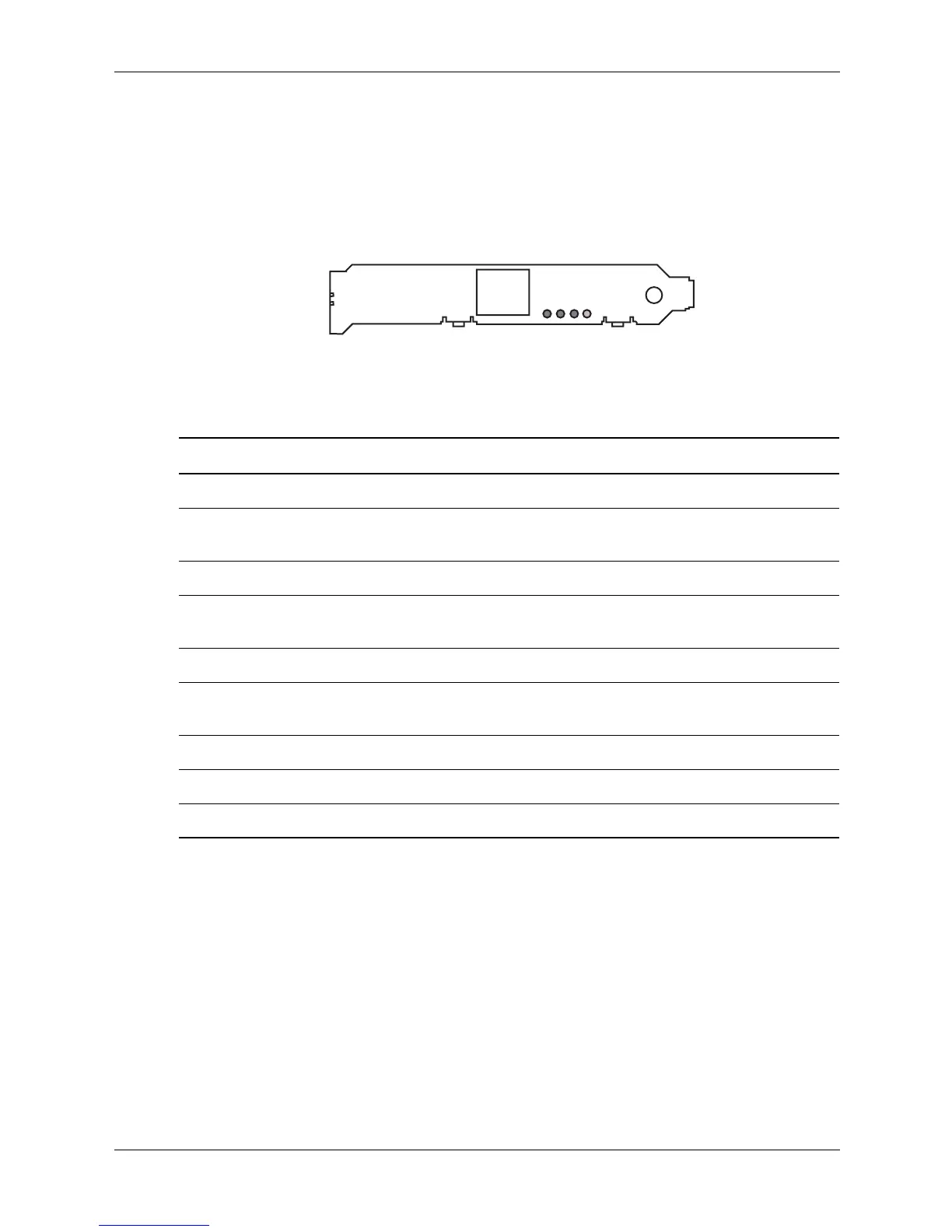

The faceplate on the 10/100/1000BASE-T NIC provides an RJ-45 connector for connecting the NIC to
another network device.
The NIC has four LEDs, one for each port speed option (10 Mbps, 100 Mbps, and 1000 Mbps), and one for
ACT (activity). The three port speed LEDs indicate active links, and the ACT LED indicates data transfer
status. After the NIC is installed and the cables are connected properly, the appropriate speed LED is lit
and the ACT LED is on if data traffic is present. The following table describes the LED states:
LED State Description
1000 ON 1000-Mbps Ethernet link.
OFF No 1000-Mps link. There might be link at a different speed, a bad cable
or connector, or a configuration mismatch.
100 ON 100-Mbps Ethernet link.
OFF No 100-Mps link. There might be link at a different speed, a bad cable or
connector, or a configuration mismatch.
10 ON 10-Mbps Ethernet link.
OFF No 10-Mps link. There might be link at a different speed, a bad cable or
connector, or a configuration mismatch.
ACT Blinking Brief bursts of data are detected on the port.
ON Streams of data are detected on the port.
OFF No data is detected on the port.
1000
100
10
ACT
