2. Remove and discard the counter-sunk shipping screw at the side of the DX115 case.

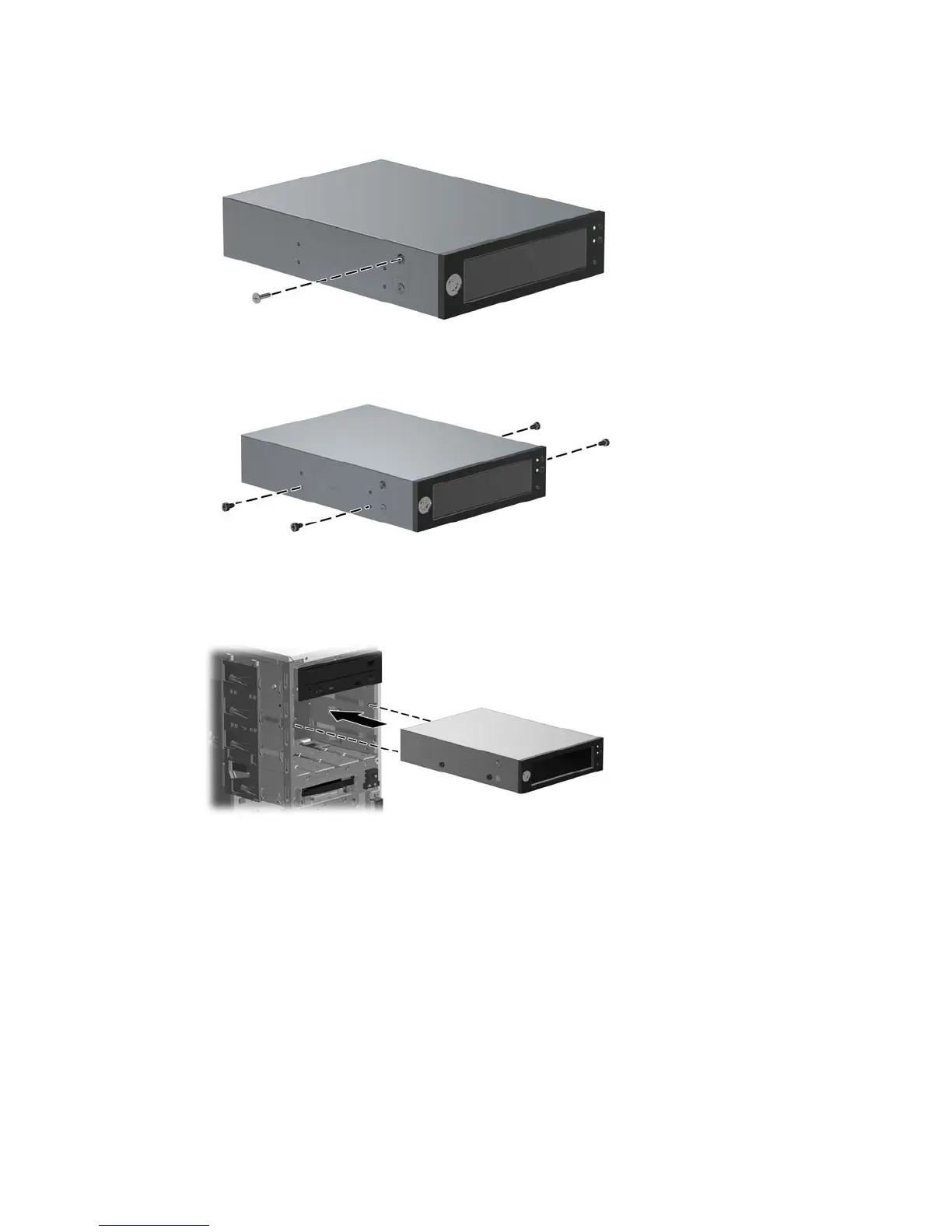

Figure 15 Removing the shipping screw
3. Install four (supplied) M3 x 5mm screws (black) in the lower four mounting holes.
Figure 16 Installing the mounting screws
4. Lift the green release lever for the optical bay and slide the DX115 unit into the bay until it is
stopped by the release latch as shown in the figure below.
Figure 17 Installing the DX115 case
ENWW
Step 2—Installing the DX115 case into the optical drive bay
11
