HP Z210 - 1 Product overview; Product features

HP Z200 SFF computer
To install a DX115 case in a Z200 SFF computer:
1. Remove the front bezel:
a. If necessary, remove the bezel security screw, located beside the middle bezel release tab.

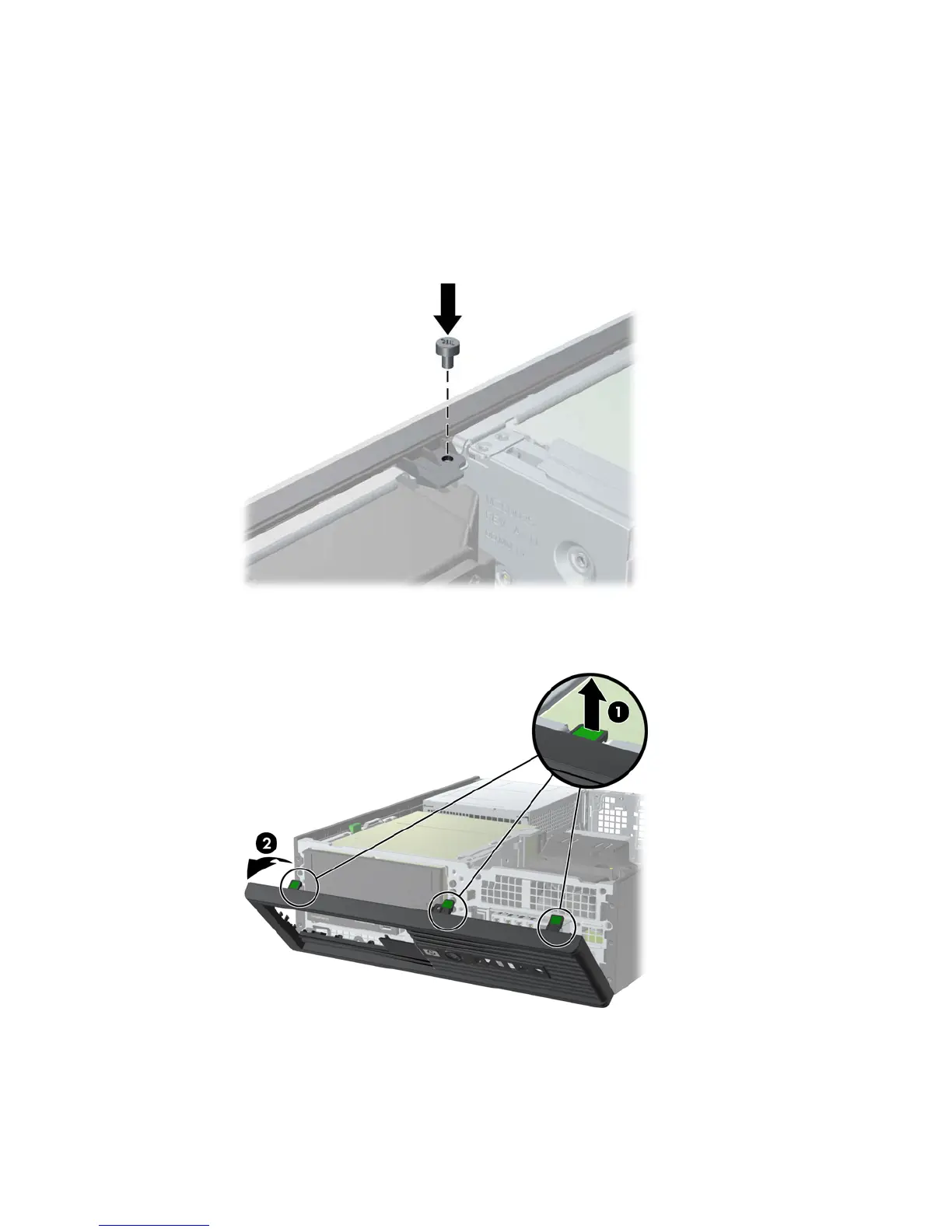

Figure 2 Removing the bezel security screw
b. Lift the release tabs (1), and then rotate the front bezel off the chassis (2).
Figure 3 Removing the front bezel
ENWW
Step 2—Installing the DX115 case into the optical drive bay
5
