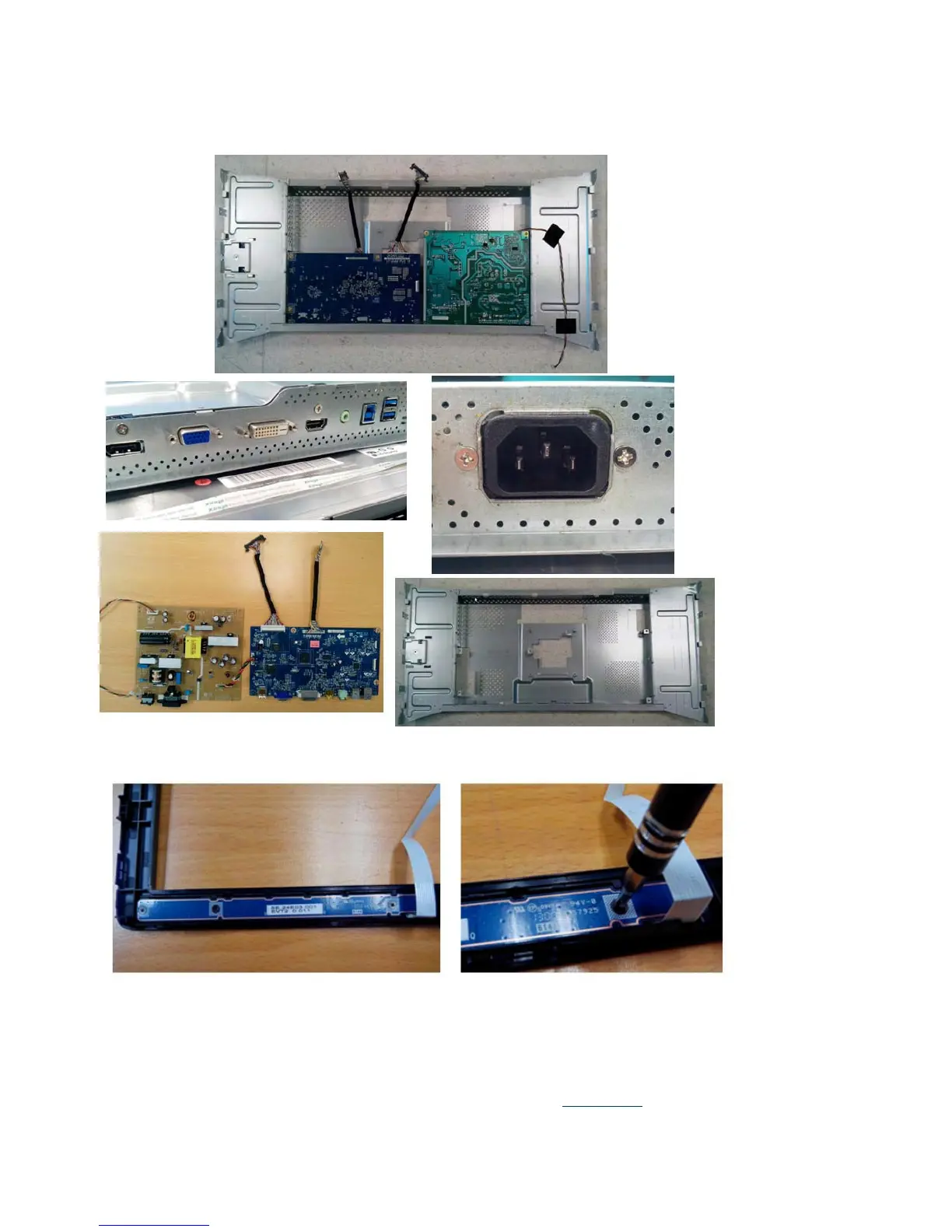

Step 8 : Use tool to release screws on PCBs. Then tear down the gaskets, rubber and AL tapes on main chassis and separate all
connector on PCBs.
Step 9: Use tool to release screws on CTRL BD and take Ctrl BD off from assy-BZL.
