HP Z420 Series User Manual

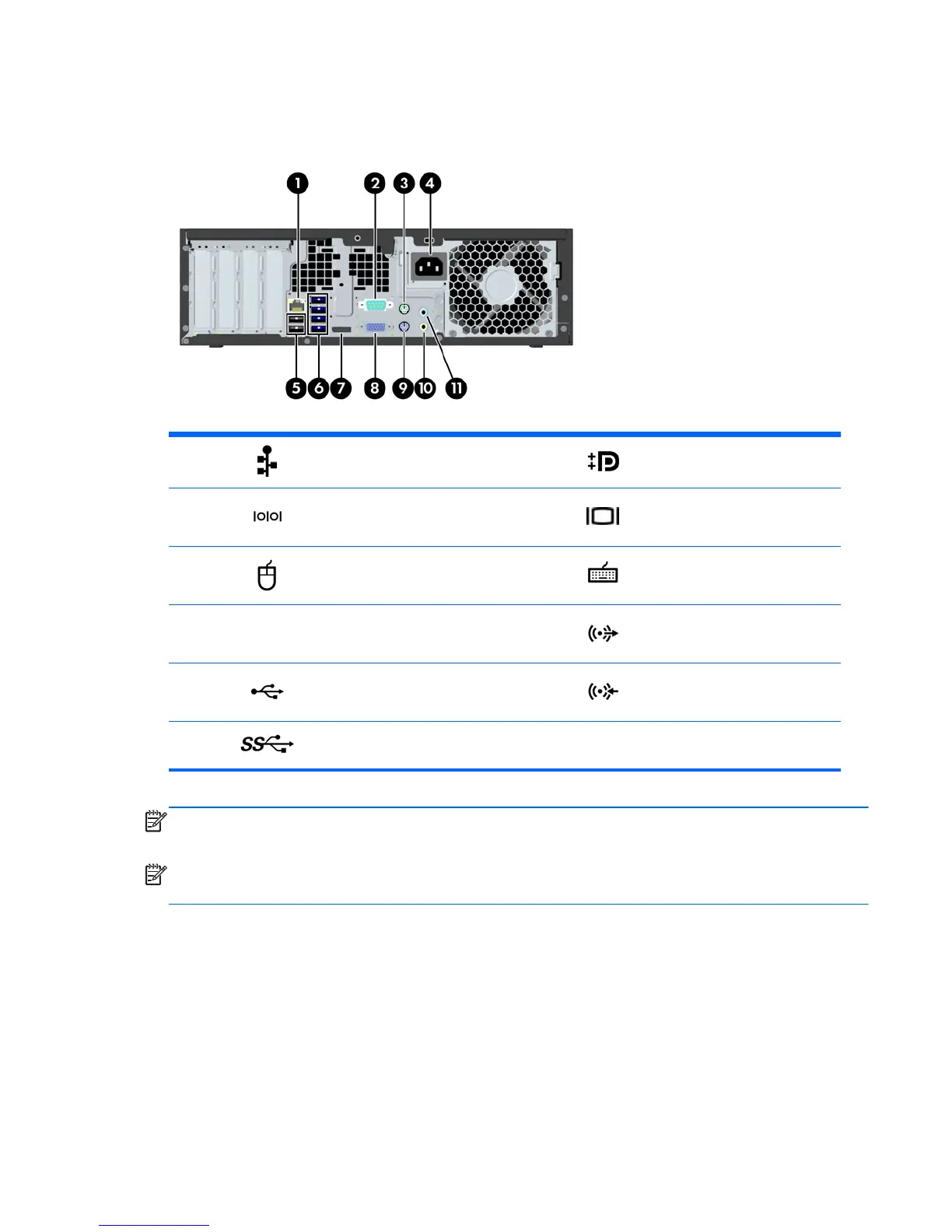

Z220 SFF Workstation rear panel
Figure 2-2 Rear panel components
Table 2-2 Component descriptions
1 RJ–45 network connector 7 DisplayPort (DP)
2
Serial port
8
VGA (monitor) (blue)
3
PS/2 mouse connector (green) 9
PS/2 keyboard connector
(purple)
4 Power cord connector 10
Audio line-out connector (green)
5
USB 2.0 ports (2) (back) 11 Audio line-in connector (blue)
6
USB 3.0 ports (4) (blue)
NOTE: The labels for the rear panel connectors use
industry-standard icons and colors.
NOTE:
The DP and VGA ports are not supported when the system is configured with Intel® Xeon E3-12x0 v2 processors. Also, if a discrete graphics
card is installed, these ports are disabled by default.
NOTE:
Simultaneous usage of integrated Intel HD graphics and discrete graphics cards (in order to drive more than two displays) can be enabled using
the Computer (F10) Setup Utility. However, HP recommends using only discrete graphics cards when attaching three or more displays.
HP Z220 SFF Workstation components
9

HP Z420 Series Specifications

General

Chipset	Intel C602
Memory Slots	8 DIMM slots
Networking	Integrated Intel 82579LM Gigabit Ethernet
Processor Options	Intel Xeon E5-1600 and E5-2600 series
Graphics Options	NVIDIA and AMD professional graphics cards
Power Supply	600W 90% efficient, wide-ranging, active Power Factor Correction (PFC)
Form Factor	Convertible Mini-tower
