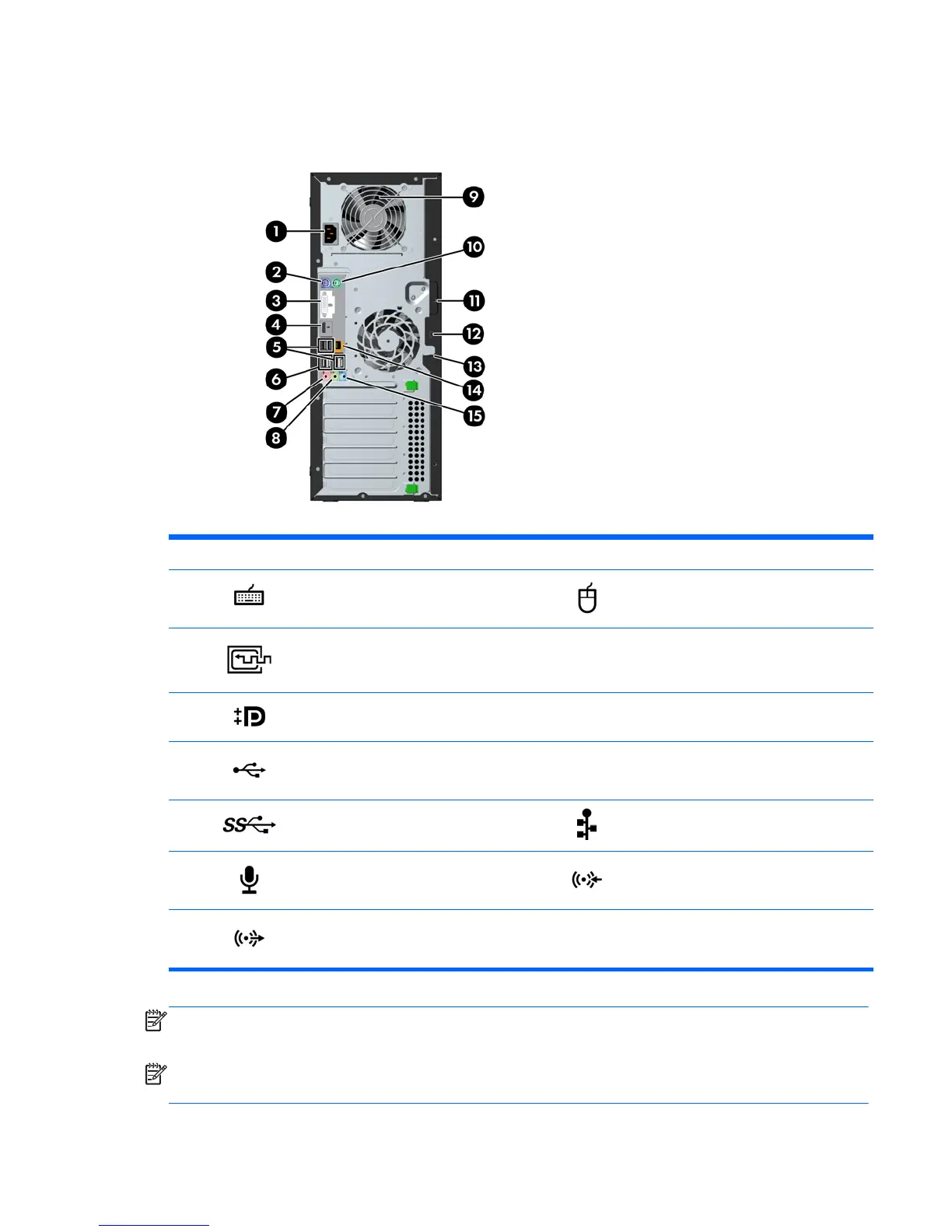

HP Z220 CMT Workstation rear panel
Figure 2-4 Rear panel components
Table 2-4 Component descriptions
1 Power cord connector 9 Power supply Built-In Self Test (BIST) LED
2
PS/2 keyboard connector (purple) 10 PS/2 mouse connector (green)
3
DVI-I connector 11 Universal chassis clamp opening
4
Display Port (DP) connector 12 Cable lock slot
5
USB 2.0 ports (4) (black) 13 Padlock loop
6
USB 3.0 ports (2) (blue) 14 RJ-45 network connector
7
Microphone connector (pink) 15 Audio line-in connector (blue)
8
Audio line-out connector (green)
NOTE: The labels for the rear panel connectors use industry-
standard icons and colors.
NOTE:
The DP and DVI-I ports are not supported when the system is configured with Intel Xeon E3-12x0 v2 processors. Also, if a discrete graphics card
is installed these ports are disabled by default.
NOTE:
Simultaneous usage of integrated Intel HD graphics and discrete graphics cards (in order to drive more than two displays) can be enabled using
the Computer (F10) Setup Utility. However, HP recommends using only discrete graphics cards when attaching three or more displays.
HP Z220 CMT Workstation components
11
