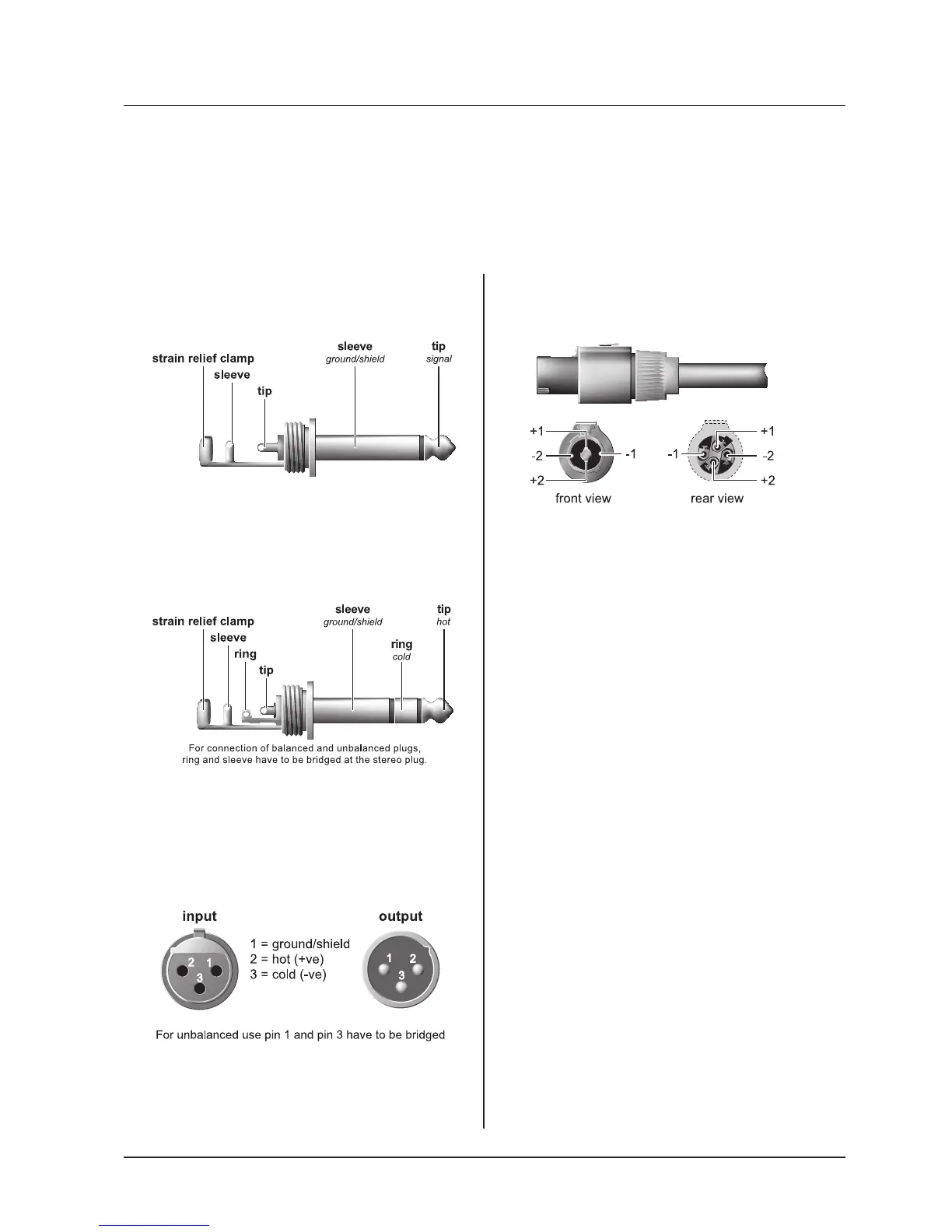

Wiring
These are several ways to interface the QA series amplifier to support a variety of applications.
The QA series features balanced inputs and outputs, so connecting balanced and unbalanced
signals is possibles.
Unbalances 1/4” Connector
Balances TRS 1/4” Connector
XLR Balanced Wiring Guide
Speakon® Output Connector
Wiring
