12
PUNCH MACHINE
™

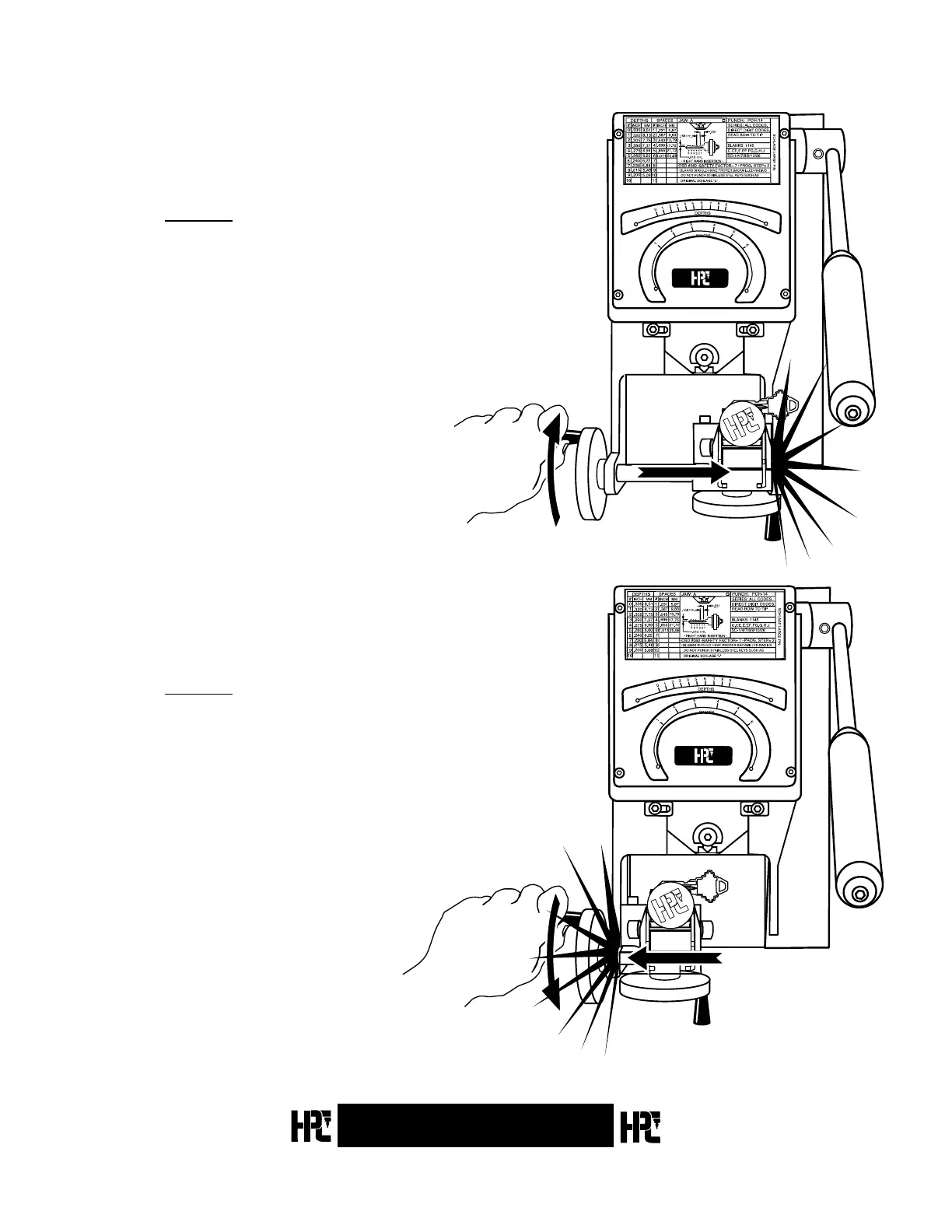

Fig. 2.5
NOTE: Never force the Key Carriage or the
Spacing Crank past full left position.
(Full left equals the centerline of the punch
with the extreme right side of the jaw).
Fig. 2.6
NOTE: Never force the Key Carriage or the
Spacing Crank past full right position.
(Full right equals the centerline of the punch
with the extreme left side of the jaw).
No. 1200PCH
