Loosen both of the Toe Clamps and
move clamps out of the way.
Loosen Punch Screw and remove it.

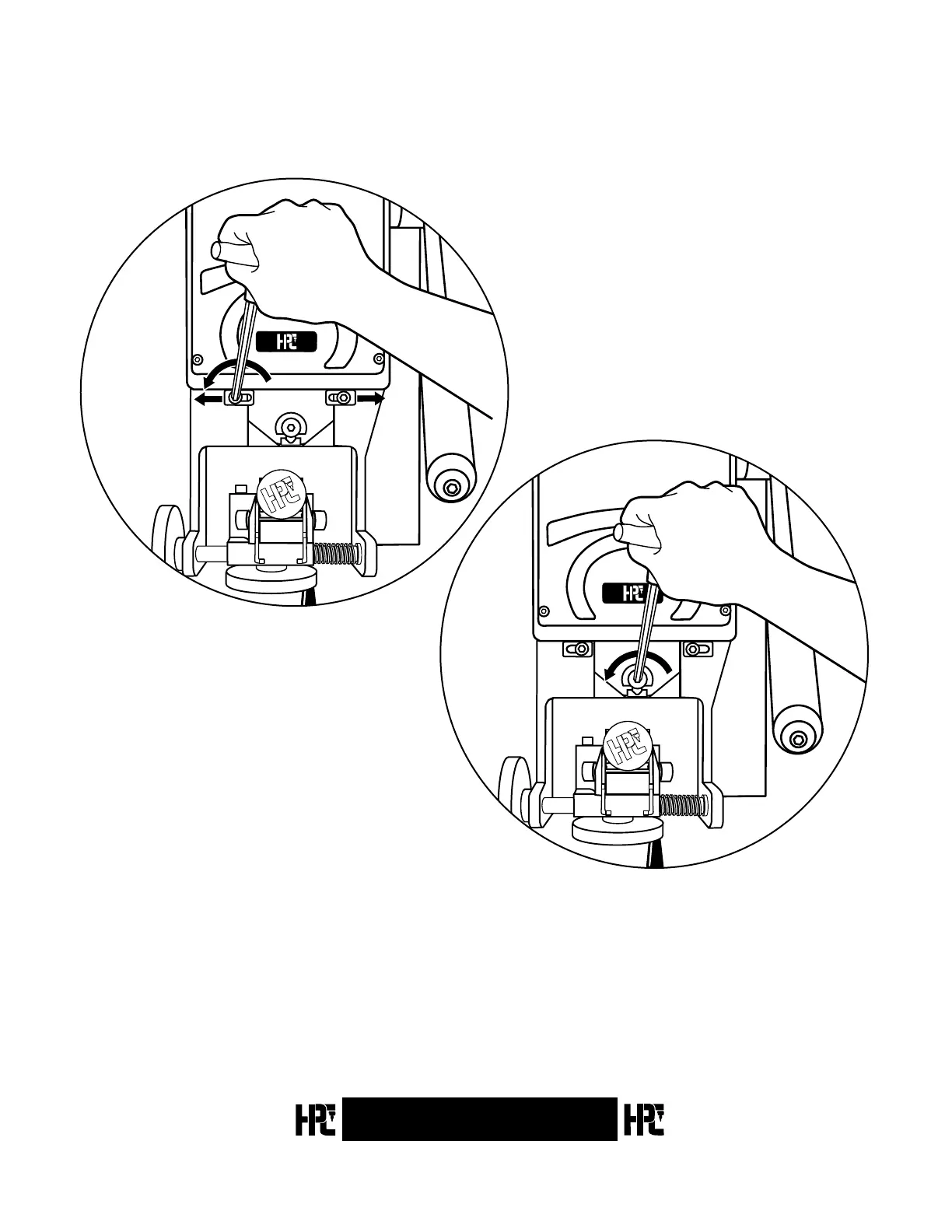

Fig. 5.1.1
44
™
PUNCH MACHINE
™
5.1
Removal of the Punch
No. 1200PCH
