HPC Punch Machine 1200PCH - Page 49

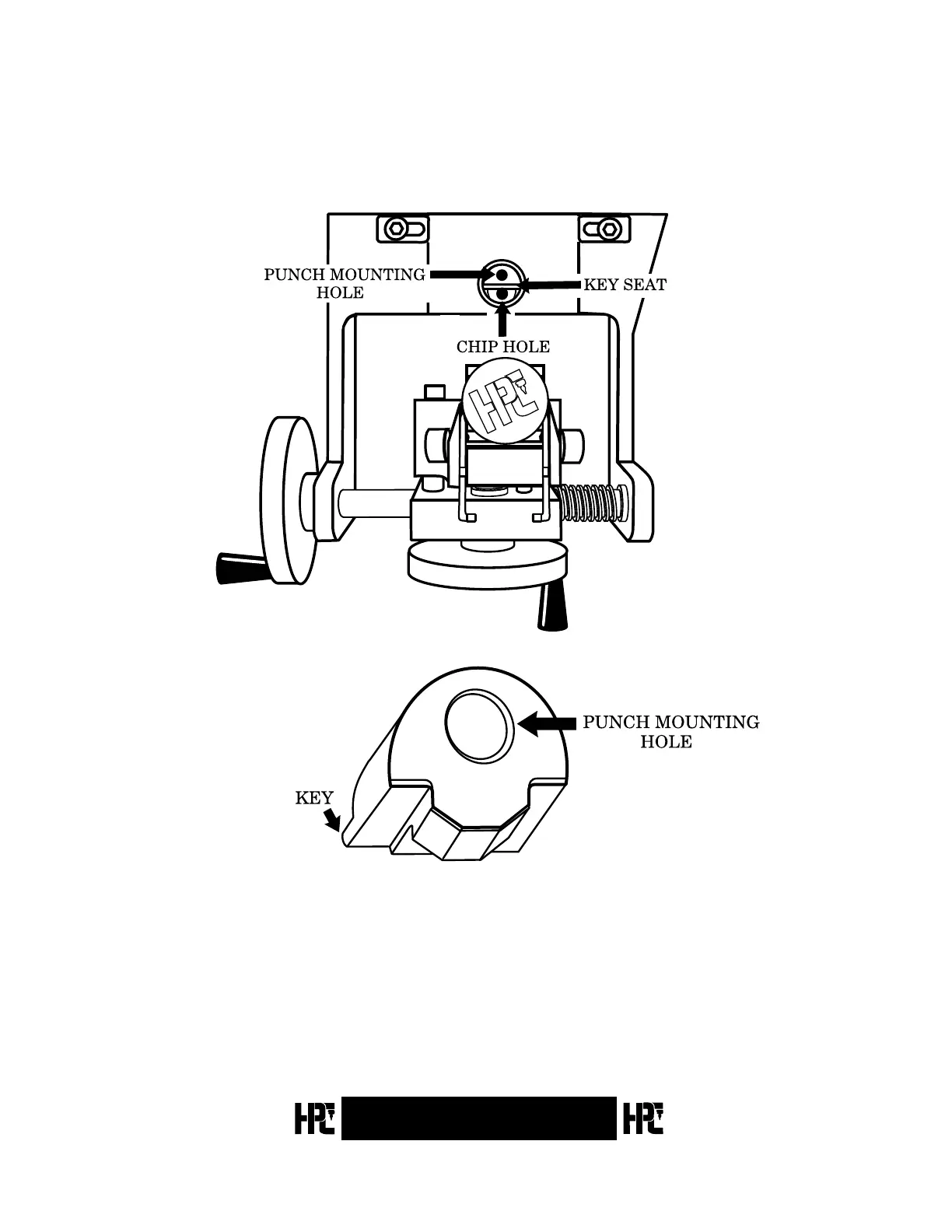

These are critical areas to mate
upon insertion of a new punch.
Note: Clean any brass chips from all of the critical areas.
Fig. 5.2.1
47
™
PUNCH MACHINE
™
5.2
Replacing the Punch
No. 1200PCH
