56
PUNCH MACHINE
™

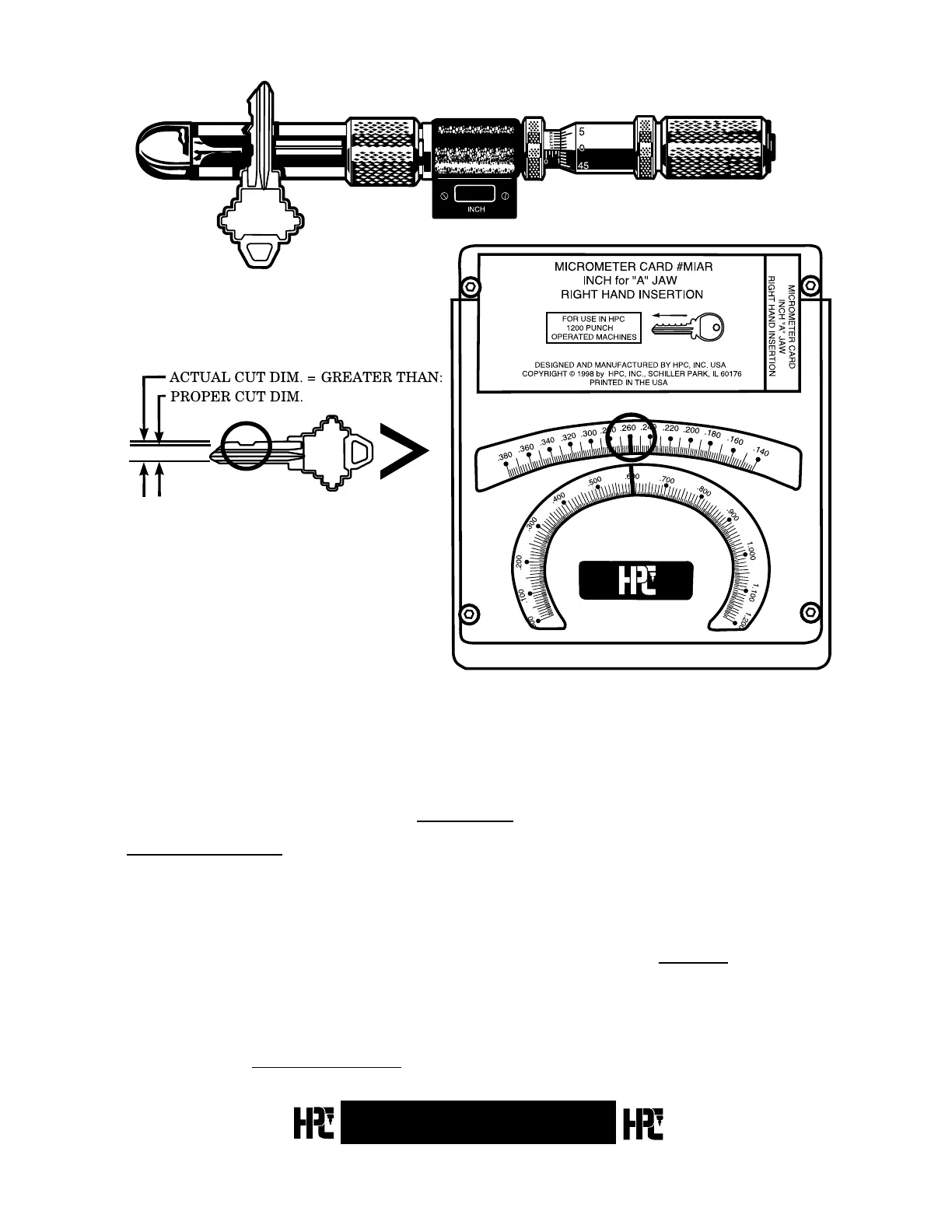

Measure the key for the actual punch cut dimension.
Note whether the key is equal to proper cut dimension or
greater than.
Example: proper cut dimension = .260
actual cut dimension = .265
+ .005
The cut is greater than the proper cut dimension.
Fig. 6.3
0.260
No. 1200PCH
