PUNCH MACHINE
™
Step 1:
Loosen the Lock Nut while holding the
Depth Plunger still.
Step 2:
For a shallower cut, turn the Depth Plunger
counterclockwise. For a deeper cut, turn the
Depth Plunger clockwise.
Step 3:
Hold the Depth Plunger still
and tighten the Lock Nut.

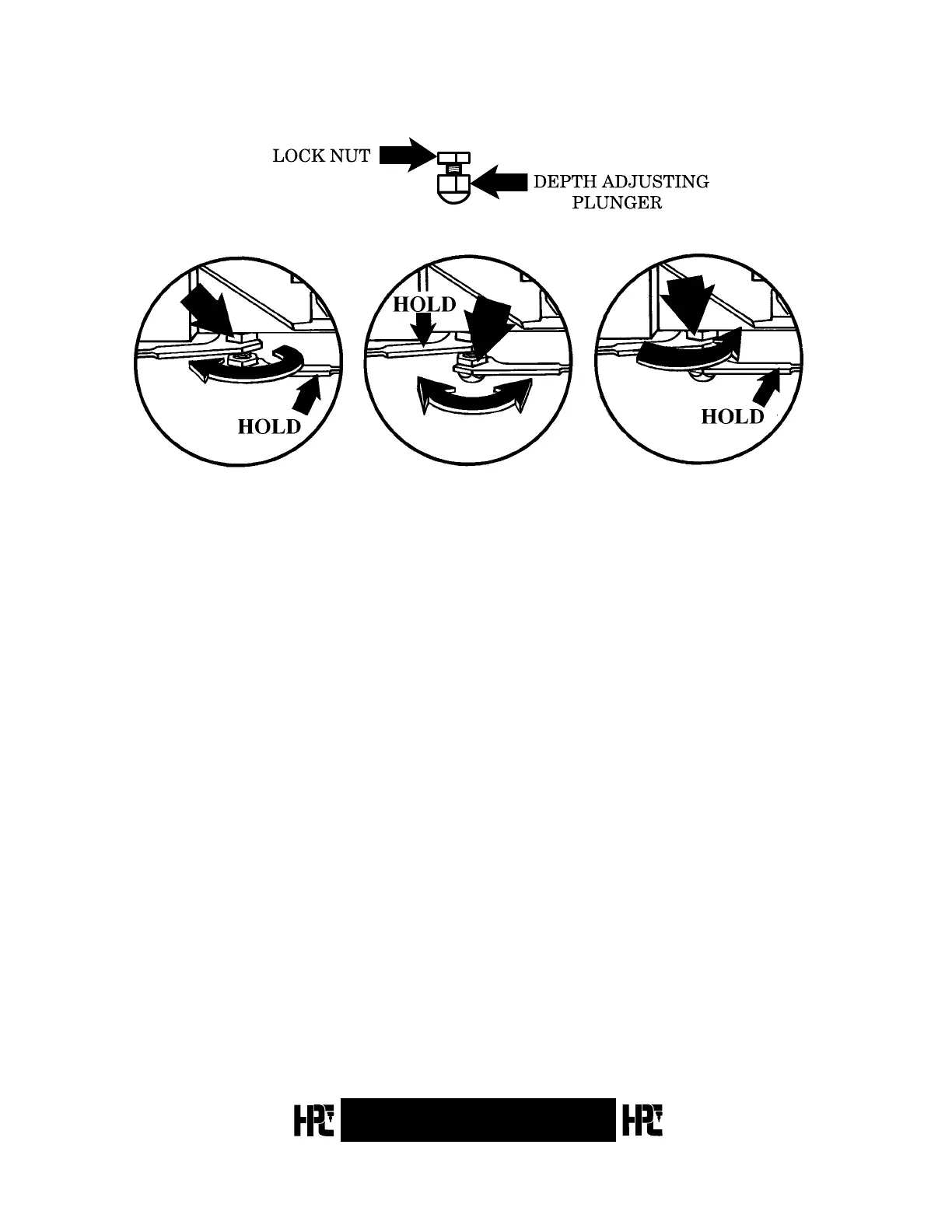

Fig. 6.8
1. 2. 3.
