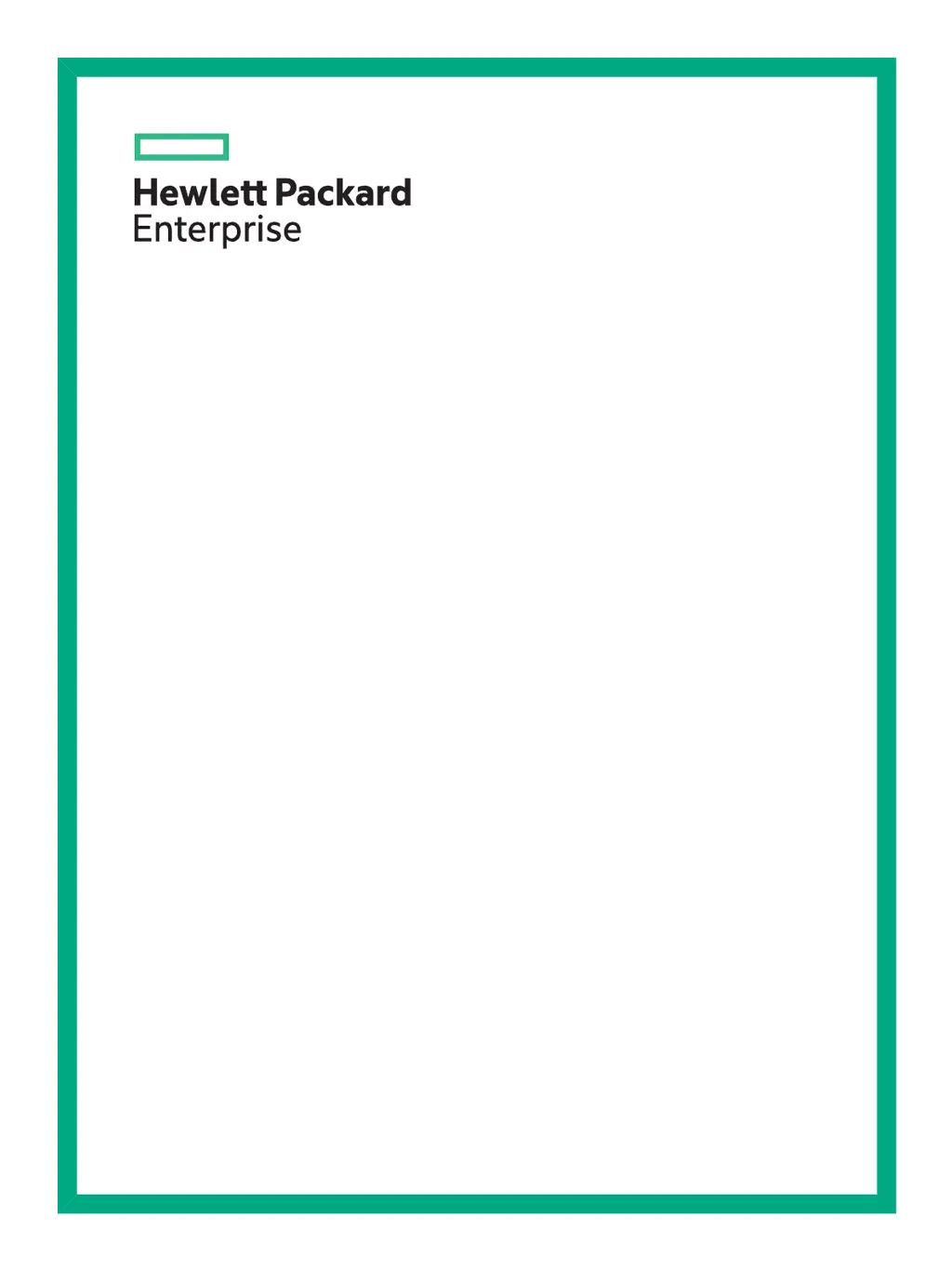

HPE D3000 Disk Enclosure User
Guide
Abstract
This guide describes the D3000 family of 12Gb SAS disk enclosures (D3600, D3610, D3700, D3710). Installation,
cabling, configuration, and troubleshooting procedures are included.
Part
Number: 734753-005
Published: September 2017
Edition: 4

Table of Contents

Other manuals for HPE D3610

Preview: Installation Guide
Installation Guide43 pages

Questions and Answers

  • L
    Lisa CollierAug 4, 2025
    What to do if HPE D3610 does not initialize?
    • B
      Benjamin RodriguezAug 4, 2025
      If the HPE Enclosure doesn't initialize, several factors could be at play. Start by ensuring power is correctly applied to the enclosure. Check that the power LED is green, indicating a working power supply. Verify the power source itself is functional. Inspect and reconnect the AC power cords on both power supplies, and confirm the power supplies are properly seated by removing and reinstalling them.
  • P
    Penny HarrisAug 9, 2025
    Why is the I/O module fault LED amber on my HPE D3610 Enclosure?
    • M
      Mrs. Vanessa Velez DDSAug 9, 2025
      An amber I/O module fault LED on your HPE Enclosure indicates that the I/O module is locked, has failed, or another fault condition exists. Ensure the I/O module is seated properly by pressing it firmly into its bay until the handle clicks into place.
  • J
    Jonathon CraigAug 12, 2025
    What does it mean if the power supply LED is amber on HPE D3610 Enclosure?
    • J
      Joseph WalkerAug 13, 2025
      If the power supply LED is amber, the power supply might not be inserted properly, the connector might be damaged, or the power supply might have failed. Ensure that the power supply is undamaged and fully seated. Also, check that all pins on connectors and components are straight.
  • J
    Jeremy GarrettAug 17, 2025
    How to fix an amber System Health LED on HPE D3610 Enclosure?
    • Q
      qwrightAug 17, 2025
      If the System Health LED is amber, it indicates that the system might have experienced a short or the controller firmware might be corrupted. Ensure that all components are fully seated. You may also need to update the controller firmware.
  • K
    Kathryn HughesAug 21, 2025
    What to do if the fan LED is amber on HPE D3610?
    • D
      Donald MarquezAug 21, 2025
      If the fan LED is amber, the fan might not be inserted properly, the connector might be damaged, or the fan might have failed. Ensure that the fan is undamaged and fully seated.
  • L
    Larry ChenAug 26, 2025
    Why is the enclosure front fault LED amber on my HPE?
    • V
      Victoria MackAug 27, 2025
      If the enclosure front fault LED is amber, the Front Status and UID module might not be inserted properly, might have a damaged connector, or might have failed. Make sure that the Front Status and UID module is undamaged and is fully seated. Check rear fault LEDs to isolate failed component.
  • T
    Terry ThompsonAug 30, 2025
    What does an amber rear fault LED on HPE D3610 Enclosure mean?
    • B
      Brian BrownAug 30, 2025
      If the enclosure rear fault LED is amber, the rear power and UID module might not be inserted properly, might have a damaged connector, or might have failed. Be sure that the rear power and UID module is undamaged and is fully seated.

Summary

Hardware Components

D3600;D3610 LFF Chassis

D3700;D3710 SFF Chassis

Disk Drives and LEDs

Explains disk drive support, hot-plug capabilities, and the status indicators (LEDs) for disk drives.

Cables

Installation Guide

Installation Overview

Outlines the steps involved in installing the disk enclosure, from required items to powering on.

Required Items for Installation

Preliminary Tasks

Planning Storage Configuration

Guides on planning storage configuration, including system expectations, striping, RAID levels, and drive types.

Preparing the Site

Racking the Disk Enclosure

Details best practices and procedures for safely installing the disk enclosure into a server rack.

Installing Disk Drives

Provides instructions and guidelines for installing disk drives into the enclosure bays, including drive options.

Connecting SAS Cables and Power Cords

Explains how to connect SAS cables and power cords, including best practices for cabling and power source connections.

Powering On the Disk Enclosure

Outlines the procedures and best practices for powering on the disk enclosure after installation.

Verifying Operating Status

Configuration

Configuration Overview

Details the essential tasks for configuring the disk enclosure and its storage, including firmware updates and LUN creation.

Operation and Management

Troubleshooting

If Enclosure Does Not Initialize

Provides steps to diagnose and resolve issues when the disk enclosure does not initialize after power application.

Diagnostic Steps for Initialization

Recognizing Disk Drive Failure

Details how to identify a failed disk drive using fault LEDs and management utilities.

Handling Disk Drive Failures

Provides procedures for handling disk drive failures, including replacement and recovery processes.

Replacement Procedures

Customer Self Repair (CSR)

Best Practices for Hardware Replacement

Offers best practices for successfully replacing hardware components, including verifying failure and handling ESD.

Replacing the Failed Component

Provides guidance on replacing failed components, including ESD precautions and considerations for rack access.

HPE D3610 Specifications

General IconGeneral
Form Factor2U
Drive Bays12 LFF
InterfaceSAS
Host Interface12 Gb SAS
CompatibilityHPE ProLiant Servers
CoolingRedundant fans
Power SupplyDual hot-plug power supplies
