Cat XL770T
The switch on the right may be switched to AUTO (timer
operation) or to MAN (manual operation). When in manual
operation the switch on the left will turn lights on and off
just like a standard switch.
The MAN/AUTO switch must be returned to AUTO before
the programmed settings are operational.
Alternative wiring to accommodate an extra switch
(Extra switches available through HPM outlets).
The switch on the left is a Duo switch and is two switches
in one.
The left half of the Duo is a manual override switch. When
switched on, the lights will always be off, regardless of the
programmed settings.
When the left half of the duo is off, the right half switches
timer operation on and off, as shown in the following table:
DUO LEFT DUO RIGHT FUNCTION
OFF ON TIMER OPERATION
OFF OFF ALWAYS ON
ON OFF ALWAYS OFF
ON ON ALWAYS OFF
Note: Back-up battery
The back-up battery ensures that programmed information is
not lost in the event of a power failure. The battery has a life of
approximately 6 years. After this 6 year period, the back-up
facility may cease to function.
HPM Cat XL770T & XL770TH are warranted as here and after
appears, against faulty material and/or workmanship for a period of
one year from date of purchase.
The obligation of the manufacturer, under this warranty, is limited
to servicing and replacing defective parts when the unit is returned
to HPM Legrand, or the distributors in your state, freight pre-paid.
This warranty becomes void on any unit which has been tampered
with or damaged by accident, short circuited, loaded beyond rating or
damaged otherwise by improper operation.
The warranty is also conditional on the unit being installed by a
licensed electrical contractor.
All other warranties, whether expressed or implied, and whether
arising by operation of law or otherwise are hereby excluded.
HPM Legrand
Warranty
www.hpm.com.au
www.hpm.co.nz

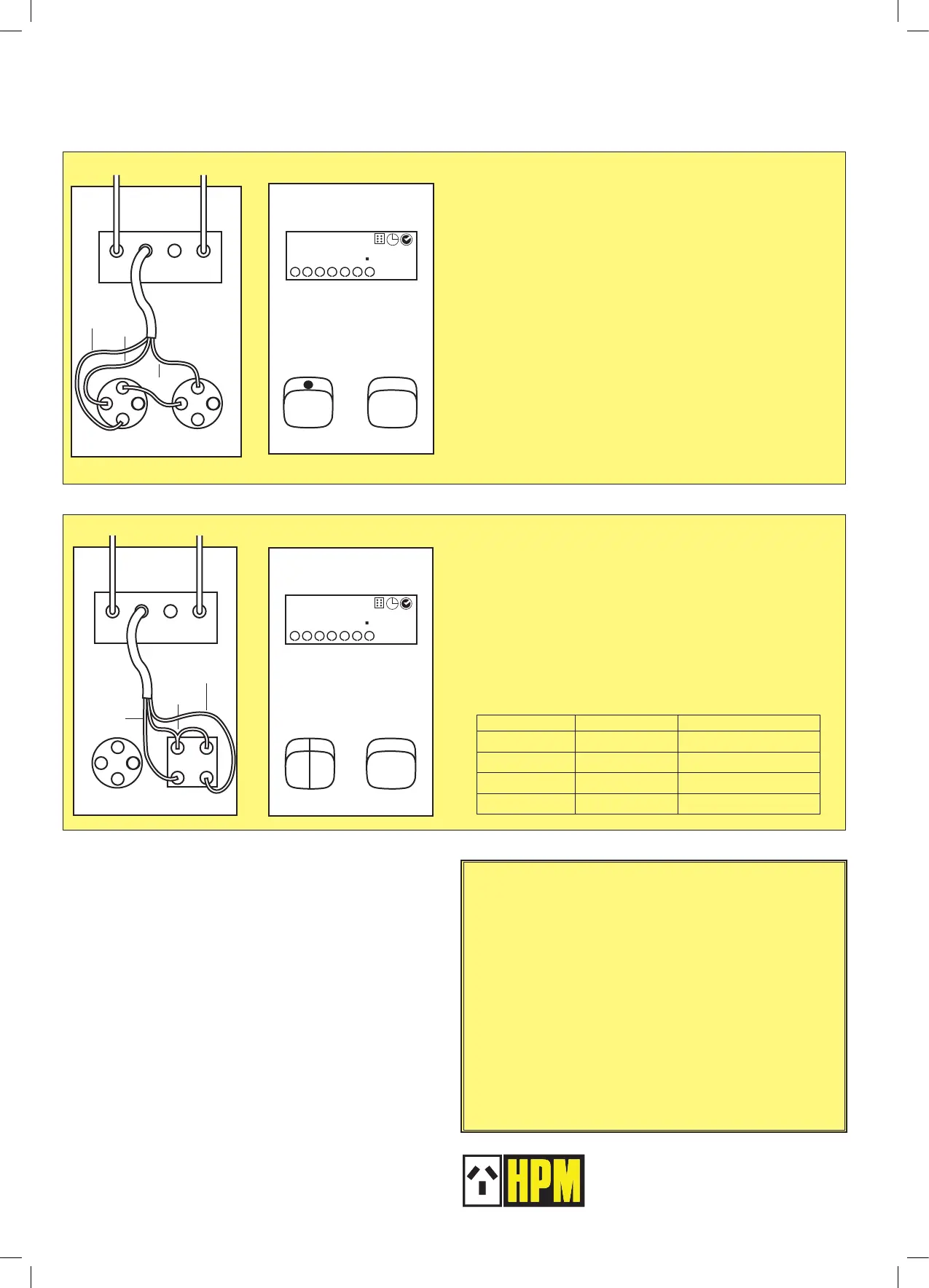

Wiring diagrams
Fig 3.
Fig 4.
4
22727A
