3.6 Plastic Cover Dismantle
The upper cover and the lower cover of the HD30 series inverter are removable. The dismantle
step is shown as Figure 3-6.
Before removing the upper cover, please take away the display panel.

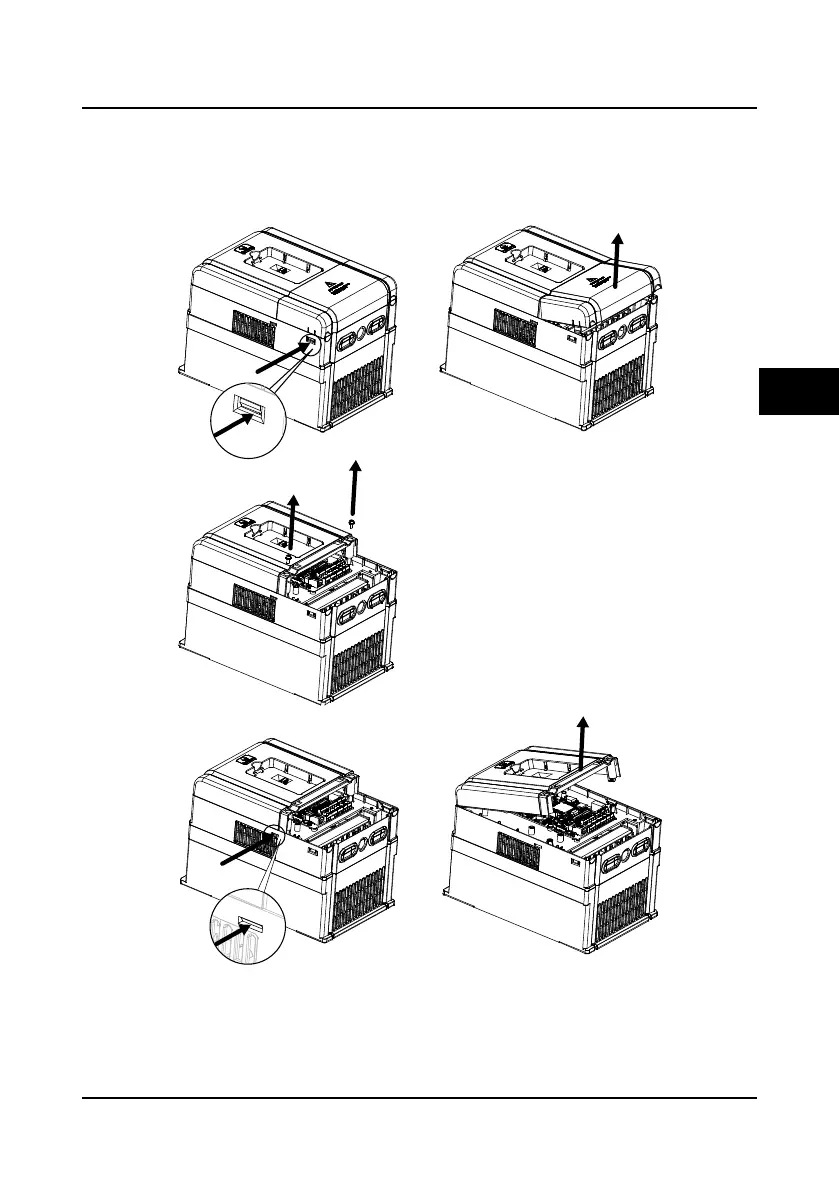

Figure 3-6 Dismantle of the plastic cover
(a)
1．Extrude the hooks at both side together,
take off the lower cover, as (a).
2．Dismantle the screws of upper cover, as (b).
3．Extrude the hooks at both side together,
take off the upper cover, as(c).
The removing proceeses
of plastic cover board:
(b)
(c)
