Braking unit (F19.24
F19.25)
No. Name Description Range
factory setting
F19.24 Action voltage of braking unit 220V inverter 330
400
380V
660V inverter 850
1200
1130V
Note: Only in inverter running status the braking is enabled.
F19.25 Reserved

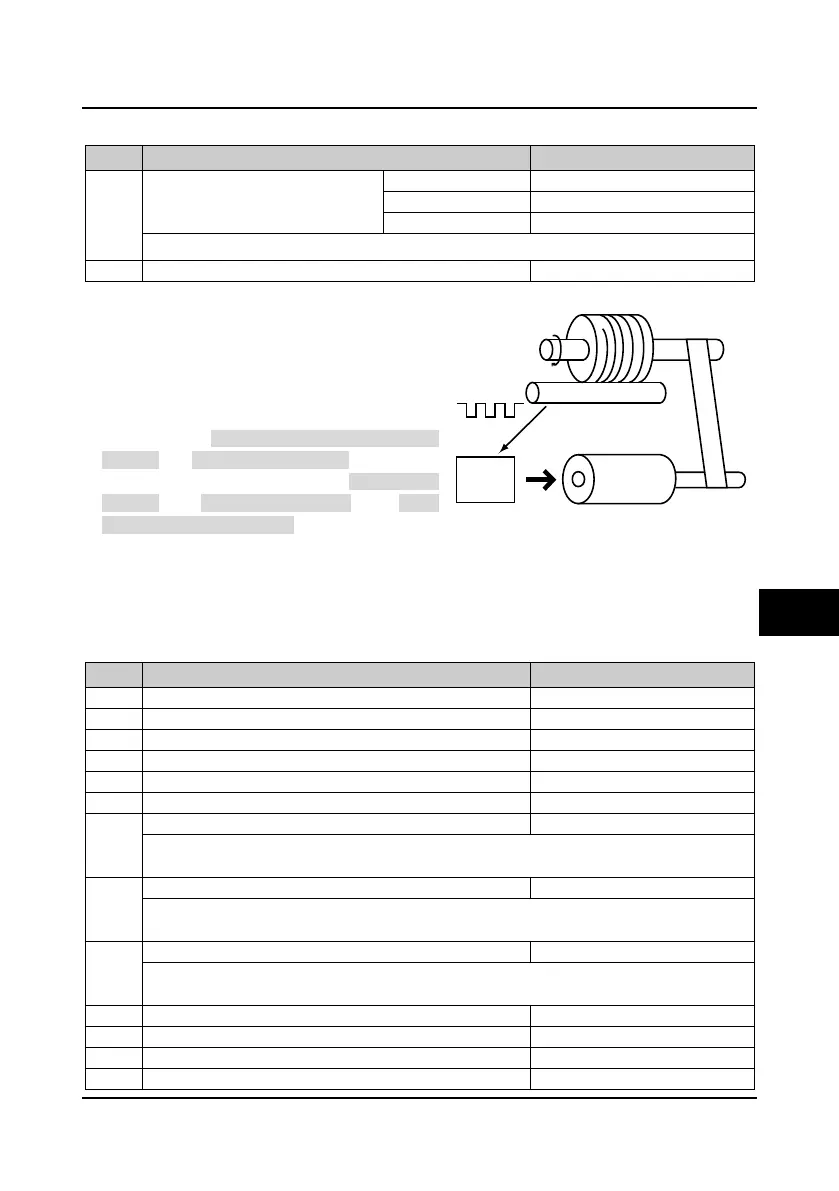

Fixed length arrive and stop function (F19.26
F19.34)
This group is used to realize
function. As the right figure:
The inverter inputs the count pulse from the
terminal (multi-
function terminal is set as No. 52
function) and gets the count length according to
the measuring number of pulses p
(F19.31) and shaft diameter (F19.30)
the count length and obtain the
(F19.27) via length ratio (F19.28) and
checking coefficient (F19.29) too.
The formula is as follows:
F19.27 = Counted length × F19.28 ÷ F19.29
Counted length = Counted pulse number ÷ F19.31 × F19.30 × π
If F19.27 ≥
F19.26, the inverter will automatically send the stop command. Before running again, it
need clear F19.27 or changed to F19.27 < F19.26. Otherwise the inverter can’t be started.
No. Name Description Range
factory setting
F19.27 Actual length 0
65535
0m
F19.29 Length checking coefficient 0.001
1.000
1.000
F19.31 Number of pulses per revolution 1
9999
1
Length arrive and output function selection
0: Output level signal.
1: Output 500ms pulse.
Record of length disposal after length arrive
0: Auto-clear.
1: No change.
Record of length disposal at stop
0: Auto-clear.
1: No change.
F19.36 Reserved
F19.38 Reserved
Inverter
Measuring speed shaft
Motor
6
