HPRT HT130

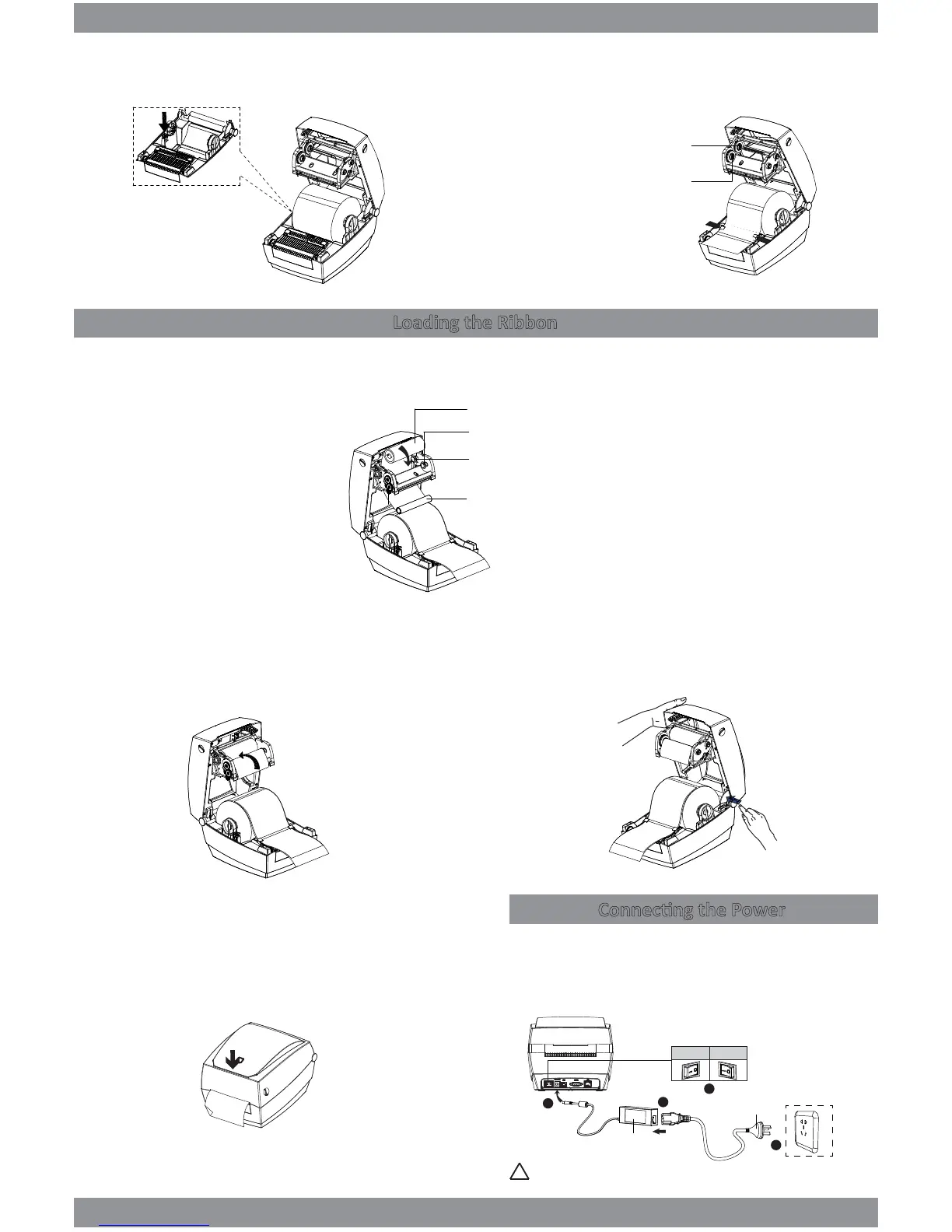

Loading the Ribbon
Connecng the Power
3.Press down the locking tab. 4.Pass the labels through label guides and adjust label guides
to label’s width.
1.Aer pung rewind spindle through printhead module, insert the right side of supply spindle into the rear pin, and then insert the
le side into the rear wheel. Then do the same procedure for the ribbon rewind spindle.
Ribbon Supply Spindle
Ribbon Rewind Spindle
Rear Ribbon Pin
Front Ribbon Pin
2.Rotate the front ribbon wheel unl the ribbon is pulled ghtly. 3.Press the lock and close the cover slightly.
4.Press down the cover unl it snaps closed.
1.Make sure the printer’s power switch is in the off posion.
2.Connect the AC adapter to power receptacle.
3.Connect the power cord to AC adapter.
4.Connect the other end of power cord to the outlet.
Note: Please refer to windows driver installaon in
HT100+HT130 User Manual.
Rev.1.0
-2-
AC Adapter
Power Cord
OFF
ON
1
2
4
3
Varies by regions
Rear Ribbon Wheel
Front Ribbon Wheel
!
