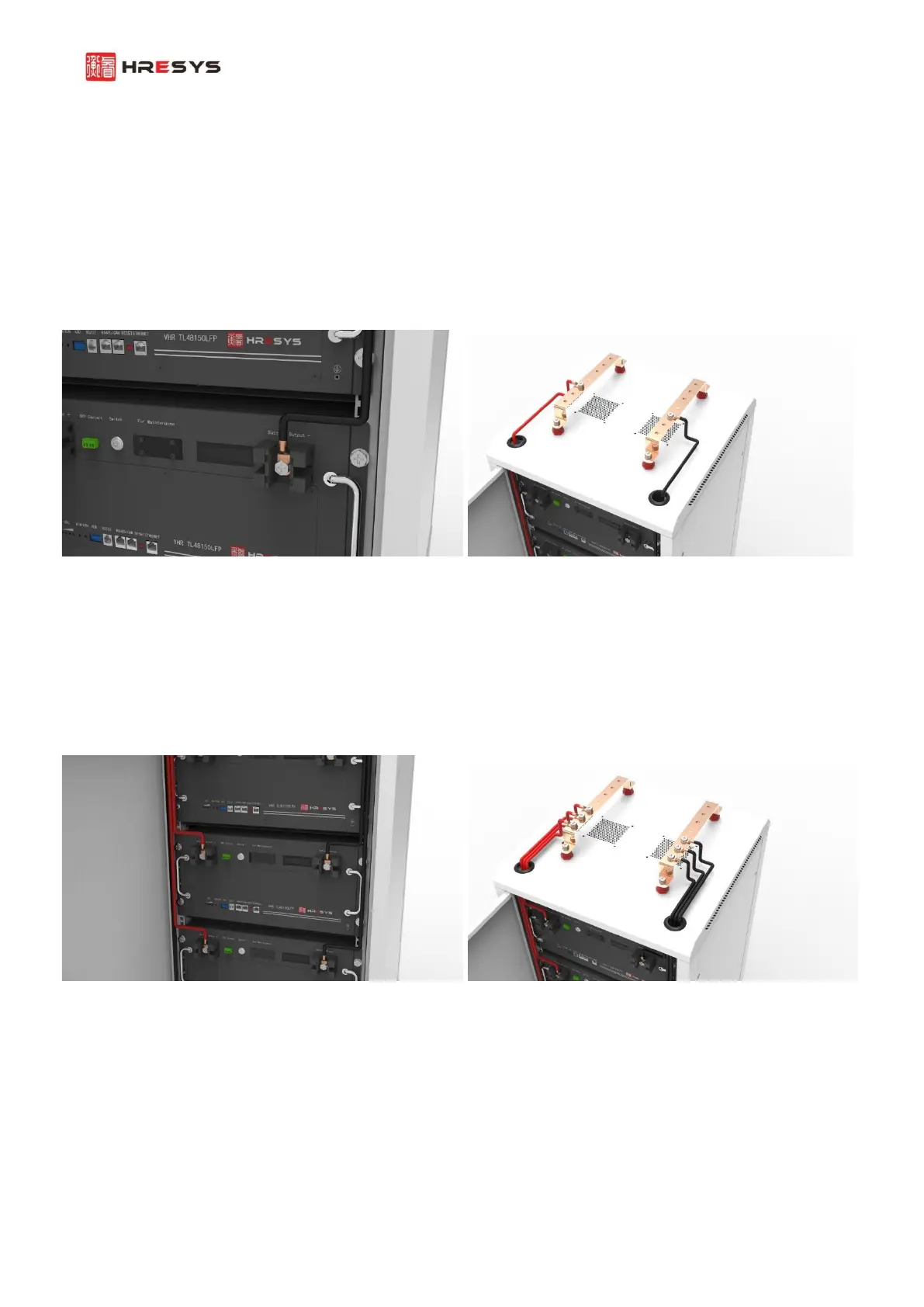

Step 7: Connect securely negative terminal of each module with the bottom end of
negative output cables . Direct the positive cable up, towards the cabinet’s top panel,
along the side panel as shown on the picture (below-left), through one of two cable holes
in the top panel of the cabinet. Then connect the top end of the negative output cables
firmly, by bolt, to the negative busbar installed on stand-off insulators on the cabinet top
panel, as its shown on the picture (below-right).
Step 8: Steps 6. and 7. to be repeated for all the modules installed in the rack (see pictures
below).
