HS 6200 - 6200 Chair Assembly Overview; Chair Top Assembly Components; Base Assembly Components; Headrest Assemblies Components

ITEM PART NO. DESCRIPTION ITEM
PART NO. DESCRIPTION
1 Chair Top Assembly* (See Figure 8) 7 1479473 Upholstered Apron Assembly**
2 Base Assembly* (See Figure 9) 8 1467673 Upholstered Arm Assembly-Right**
3 Headrest Assemblies (See Figures 11 thru 14) 9 1467773 Upholstered Arm Assembly-Left**
4 1760403 Footstep* 10 0667873 Upholstered Arm Pad Assembly**
5 1715073 Upholstered Back Assembly** 11 1765073 Scuff Pad**
6 1479373 Upholstered Seat Assembly** 12
** Please specify upholstery color when ordering.
To order complete Upholstery Set use P/N.
2727873 Designer Upholstery Set With No. 18 Headrest Pad - 6200
*Please specify paint color when ordering.
IN-6200
15
6
8, 9
M
ODEL AND SERIAL
2
N
UMBER PLATE
4
5
7
10
11

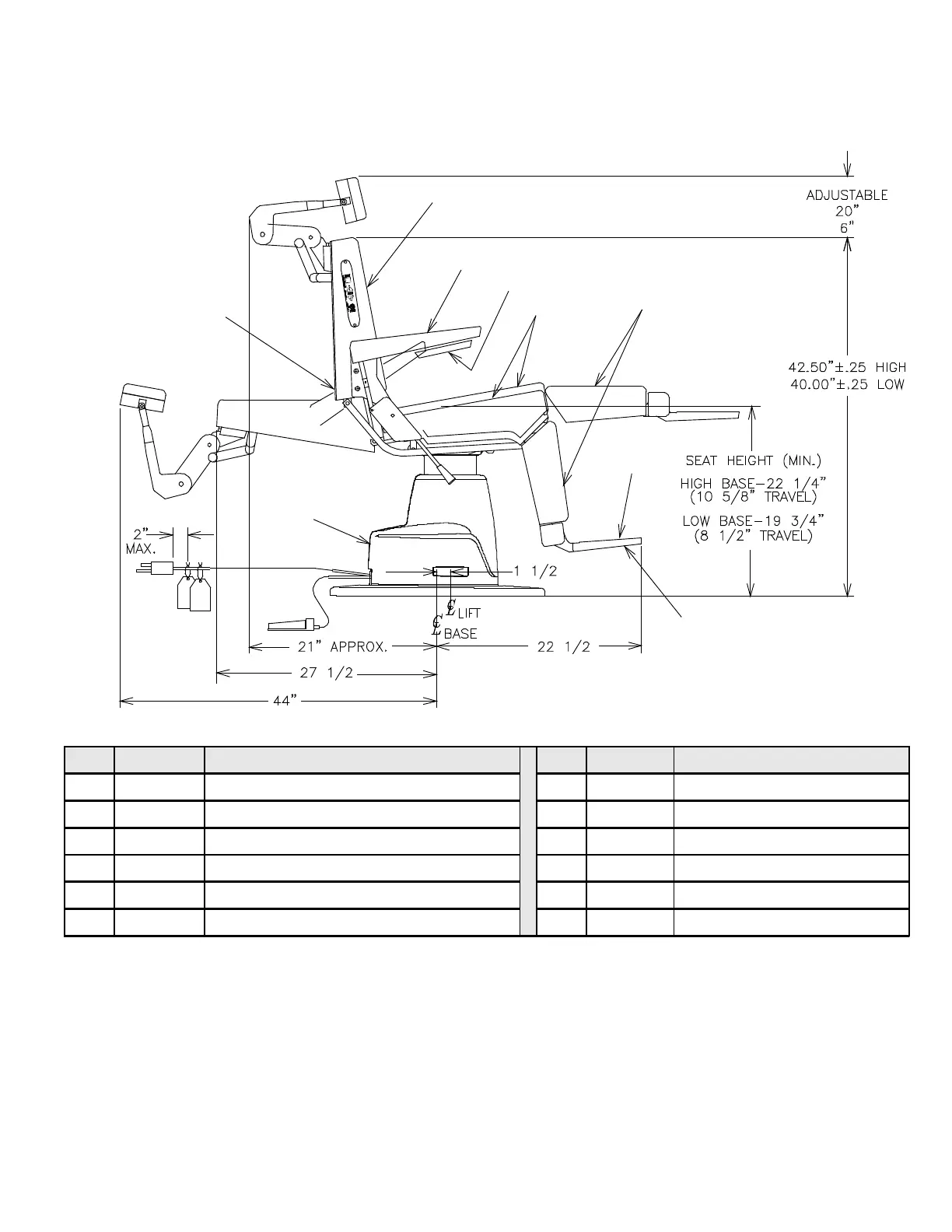

FIGURE 7
6200 CHAIR ASSEMBLY
