12
VERSIONS WITH A HSD
ENCODER:

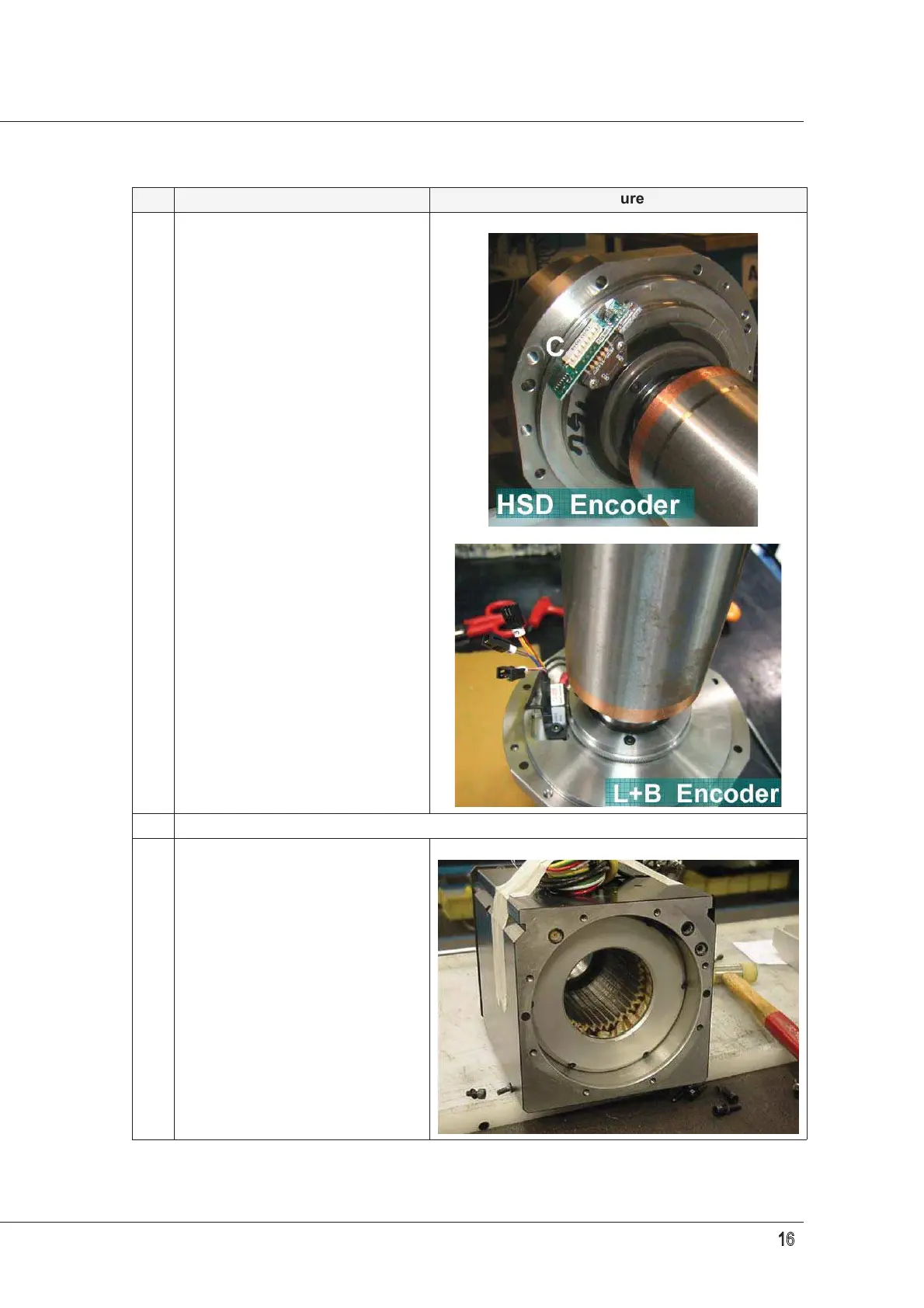

Disconnect the connector “C”.
VERSIONS WITH ENCODER
L+B:
Disconnect the 3 connectors
indicated in the figure.
13 Remove the shaft kit.
14
Clean the support surfaces and
grease the bearing seats.
Op. Description Picture
