HTP EFTC-199W Installation & Startup

77
LP-520 REV. 5.1.17

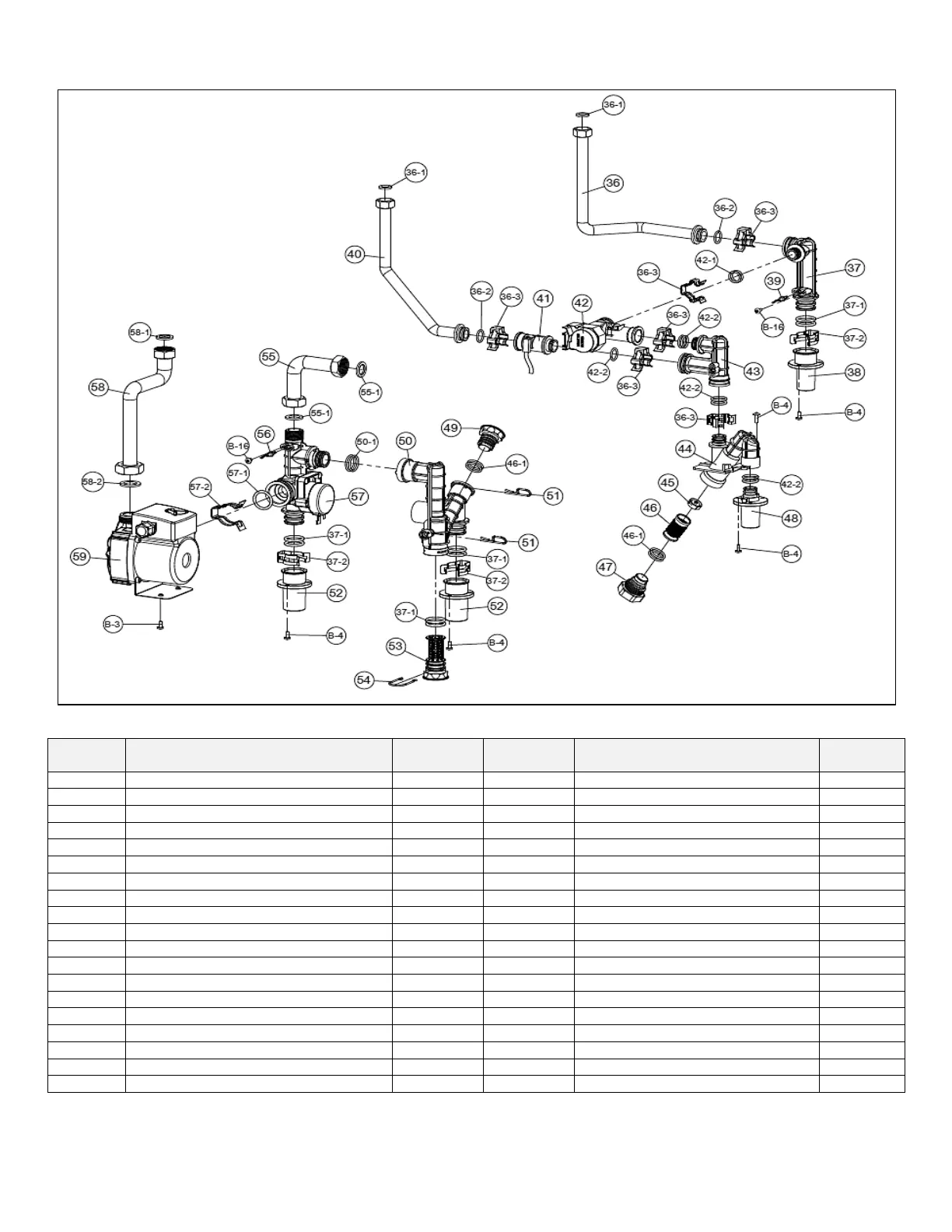

Figure 59 – Water Piping Replacement Parts – 140W Models
NUMBER
DESCRIPTION
PART
NUMBER
NUMBER
DESCRIPTION
PART
NUMBER
36
DHW Outlet Pipe
7855P-242
47
DHW Inlet Block Cap
7855P-283
36-1
1/2" Pipe Gasket
7855P-072
48
DHW Inlet Adapter
7855P-203
36-2
O-ring
7855P-044
49
DHW Inlet Block Cap
7855P-283
36-3
Clip (DHW Inlet)
7855P-246
50
CH Return Block With Filter
7855P-248
37
DHW Inner Block
7855P-251
50-1
P22 O-ring
7855P-276
37-1
O-ring P22A
7850P-262
51
CH Return Block With Filter Clips
7855P-284
37-2
Pipe Adapter Clip
7855P-278
52
CH Return Adapter
7855P-227
38
DHW Outlet Adapter
7855P-225
53
Filter for CH Return Block
7855P-265
39
DHW Temperature Sensor
7855P-094
54
CH Filter Clip
7855P-286
40
DHW Inlet Pipe
7855P-241
55
CH Return Pipe
7855P-243
41
DHW Flow Sensor
7855P-083
55-1
3/4" Pipe Gasket
7855P-073
42
Mixing Valve
7855P-043
56
CH Return Temperature Sensor
7855P-097
42-1
P15 O-ring
7855P-044
57
3 Way Valve Assembly
7855P-247
42-2
P16 O-ring
7855P-075
57-1
P22A O-ring
7850P-262
43
DHW Outer Block
7855P-259
57-2
Pump clip
7855P-263
44
DHW Inlet Filter Block
7855P-257
58
CH Supply Lower Pipe
7855P-244
45
Flow Restrictor (15L)
7855P-261
58-1
3/4" Pipe Gasket
7855P-073
46
DHW Inlet Filter
7855P-281
58-2
1" Pipe Gasket
7855P-074
46-1
P20 O-ring
7855P-282
59
Internal Pump
7855P-245
Table 35 – Water Piping Replacement Parts – 140W Models
