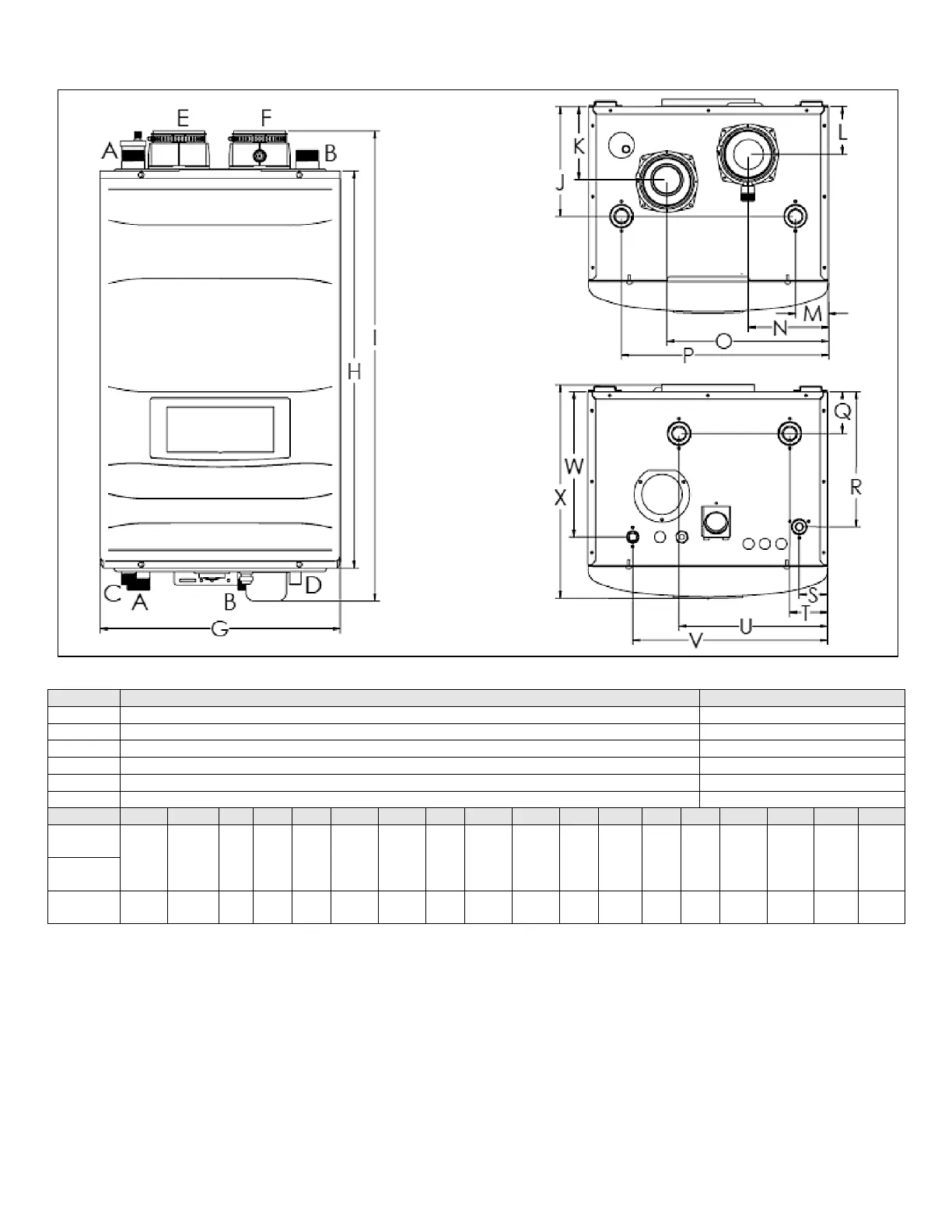

Figure 1 – Specifications and Dimensions
DESCRIPTION
DIAMETER
A
CH Supply Adapter
1 ¼”
B
CH Return Adapter
1 ¼”
C
Gas Inlet Adapter
¾”
D
Condensate Adapter
½”
E
Intake Pipe Connection
3”
F
Exhaust Vent Connection
3”
MODEL
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
80W
100W
17.5
28.75
34
7.9
5.3
3.5
2.4
5.8
11.7
14.9
3.0
9.8
2.1
2.7
10.7
14.1
10.5
15.4
120W
140W
175W
199W
19.7
31.9
37
7.2
5.1
3.2
3.75
5.8
12.5
17.5
4.0
11.1
2.1
2.2
11.7
15.8
11.8
16.8
Table 4 – Specifications
