HTP UFT-100W - Error Tree Analysis; Flame Detection; Gas Detection

63
LP-542 REV. 6.2.16
M. ERROR TREE ANALYSIS
1. FLAME DETECTION

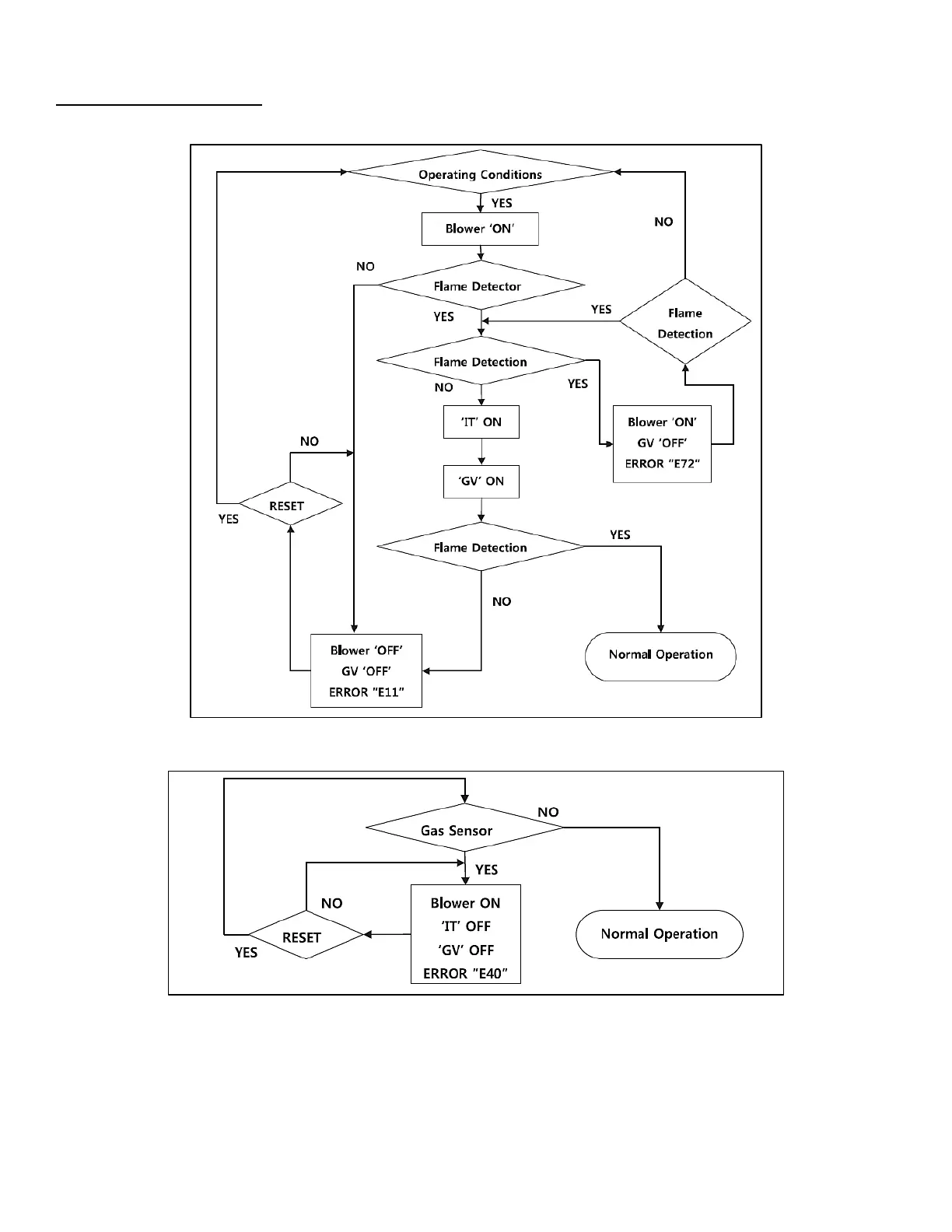

Figure 52 – Flame Detection Error Analysis Tree
2. GAS DETECTION
Figure 53 – Gas Detection Error Analysis Tree
