HTP UFT-140W User Manual

13
LP-542 REV. 6.2.16

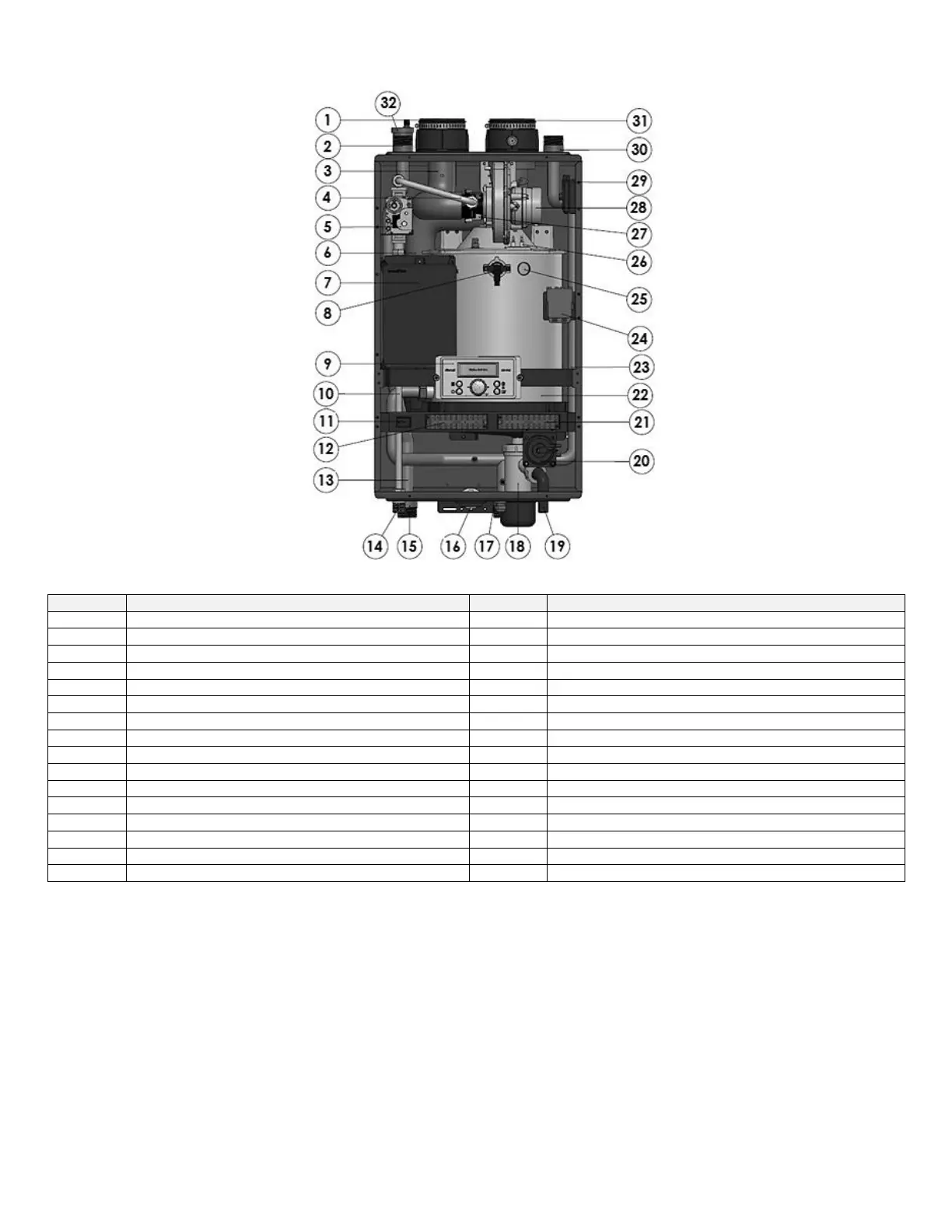

Figure 2 – Components (All Models)
NUMBER
COMPONENT DESCRIPTION
NUMBER
COMPONENT DESCRIPTION
1
Intake Pipe Adapter
17
CH Bottom Return Adapter
2
CH Top Supply Adapter
18
Condensate Trap
3
Air / Gas Mixing Pipe
19
Condensate Adapter
4
Gas Inlet Pipe 2
20
Condensate Air Pressure Switch
5
Gas Valve
21
Low Voltage Terminal Strip
6
Exhaust Duct
22
Heat Exchanger
7
Main PCB
23
CH Return Pipe
8
Flame Detection Sensor
24
Ignition Transformer
9
Control Panel
25
Flame viewing window
10
Gas Inlet Pipe 1
26
Ignitor rod
11
Manual ON/OFF Power Switch
27
Air/gas Mixer
12
High Voltage Terminal Block
28
BLDC Fan
13
CH Supply Pipe
29
Air Pressure Switch
14
Gas Inlet Adapter
30
CH Supply Adapter
15
CH Bottom Supply Adapter
31
Exhaust Vent Adapter
16
CH Pressure Gauge
32
Automatic Air Vent
Table 5 – Component List
How the Boiler Operates
Condensing technology intelligently delivers hydronic heating while maximizing efficiency. Outlined below are the features of the system
and how they operate:
Stainless Steel Heat Exchanger - The highly efficient 316L stainless steel fire tube heat exchanger with internal aluminum is designed
to extract all available heat from the combustion process and pass it into heat transfer fluid. The stainless steel construction provides
protection for longer service life. The heat exchanger offers greater water content, providing lower system pressure and greater overall
system efficiency.
10 to 1 Modulating Combustion System - The combustion system is specially designed to provide very high turn down. This
combustion system will modulate the burner output to very low levels to match the system demand and achieve better overall control of
the heating system for maximum efficiency and reliability.
