7.InstallationExplanations
1. Installation Explanations:

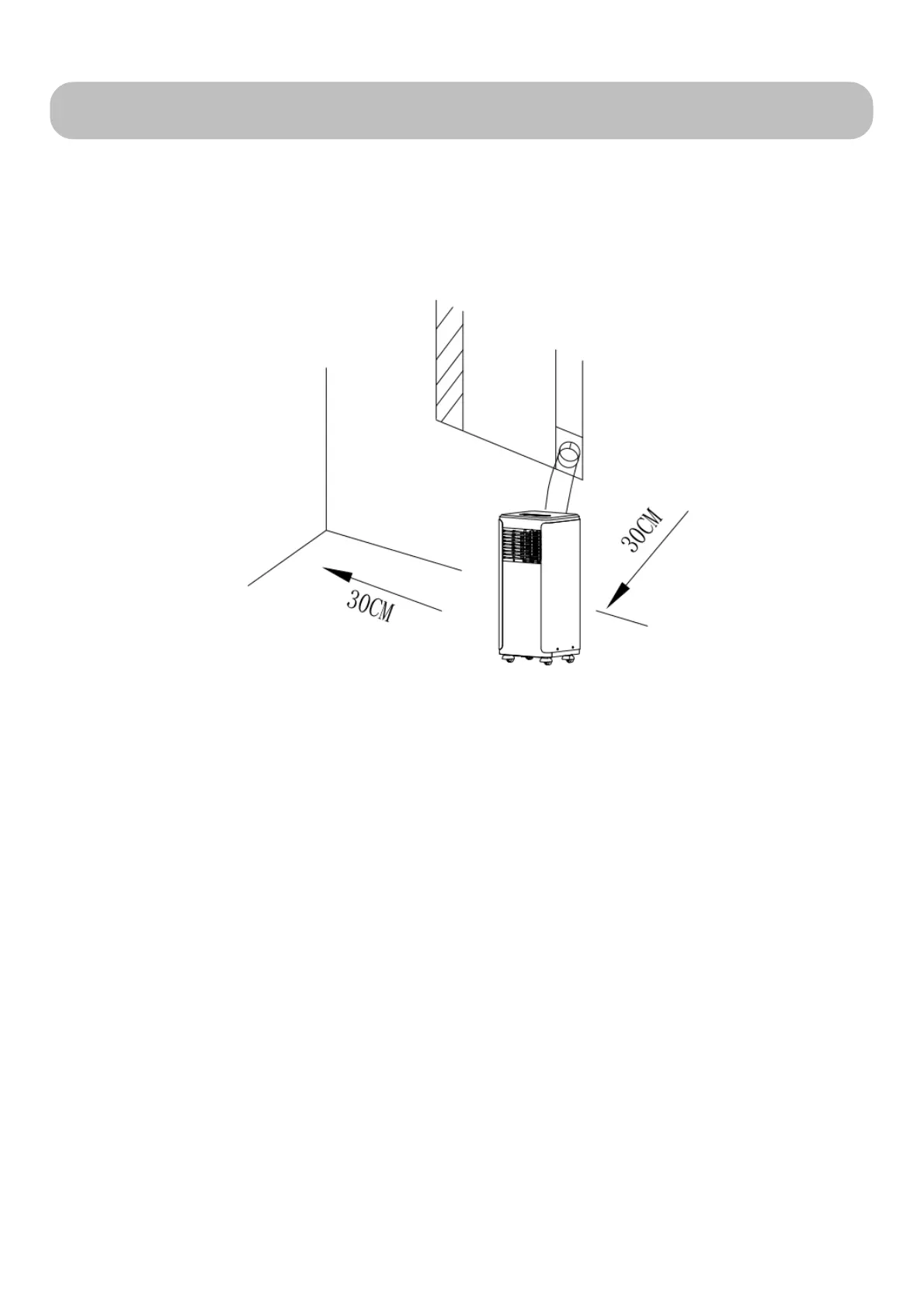

- A removal air-conditioner shall be installed in the flat and empty place all around. Don’t block
the air outlet, and the required distance around should be at least 30cm. (See Fig.3)
- Should not be installed in wet location, such as the laundry room.
- Socket wiring should be in accordance with the local electric safety requirements.
2. Introduction to Exhaust Hose Installation
A) Temporary installation
1. Twist the housing Connector and the window Connector to the ends of the exhaust hose.
2. Insert the fixing clip of the housing adaptor into the openings at back of the air conditioner.
3. Put the other end of the exhaust hose to the near windowsill (see Fig.4).
7. Installation Explanations
