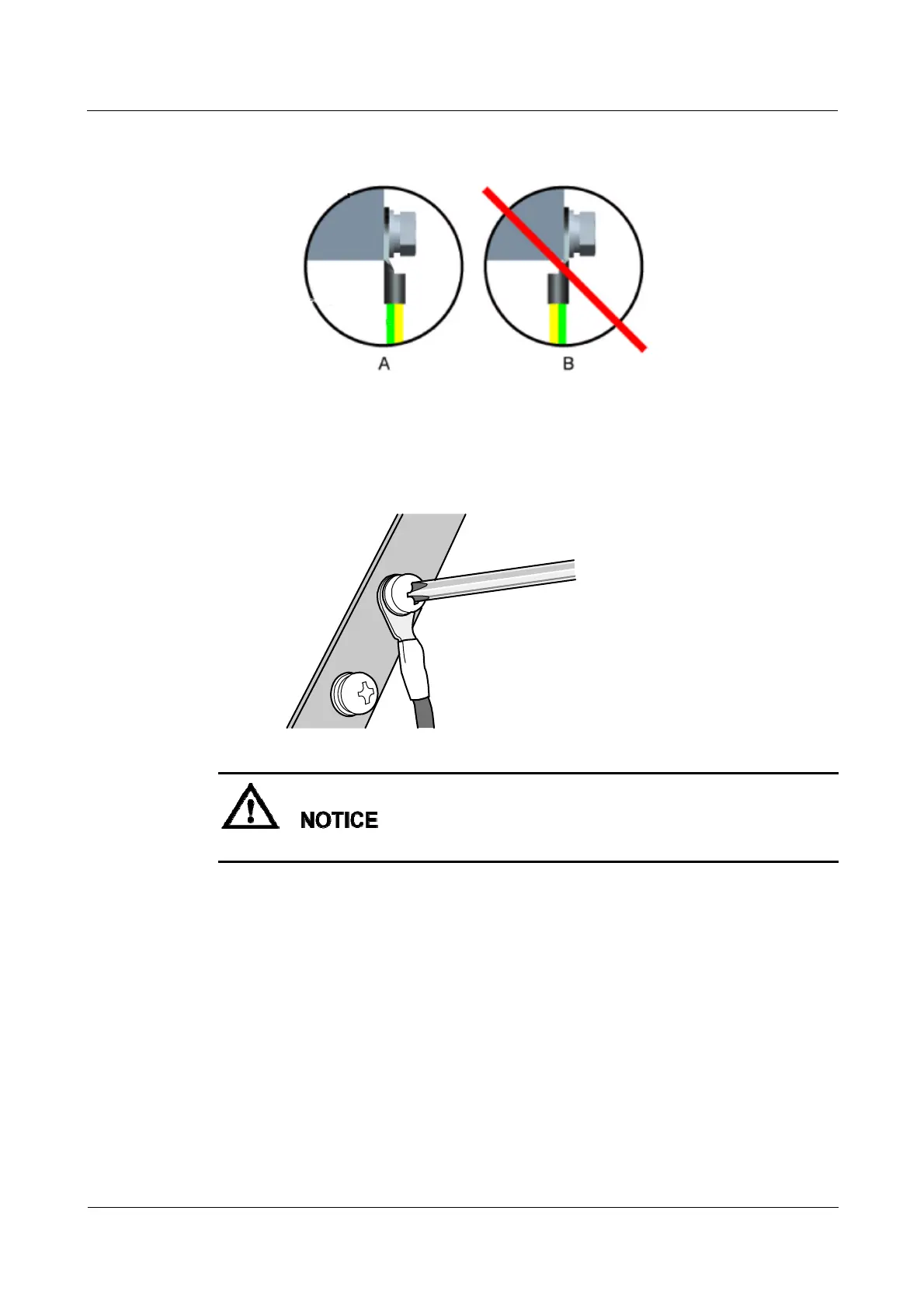

Figure 5-43 Installing an OT terminal, showing the orientation of crimping sleeve
b. Place the spring washer and flat washer in turn, mount a matching screw, and fasten
it clockwise, as shown in Figure 5-44.
Figure 5-44 Installing two terminals back to back
Ensure that the OT terminal is not in contact with other terminals or metal components.
c. Move the cable slightly and ensure that it is securely connected, as shown in Figure
5-45.
