Installing the AP
4. Installing the AP
Against the Wall

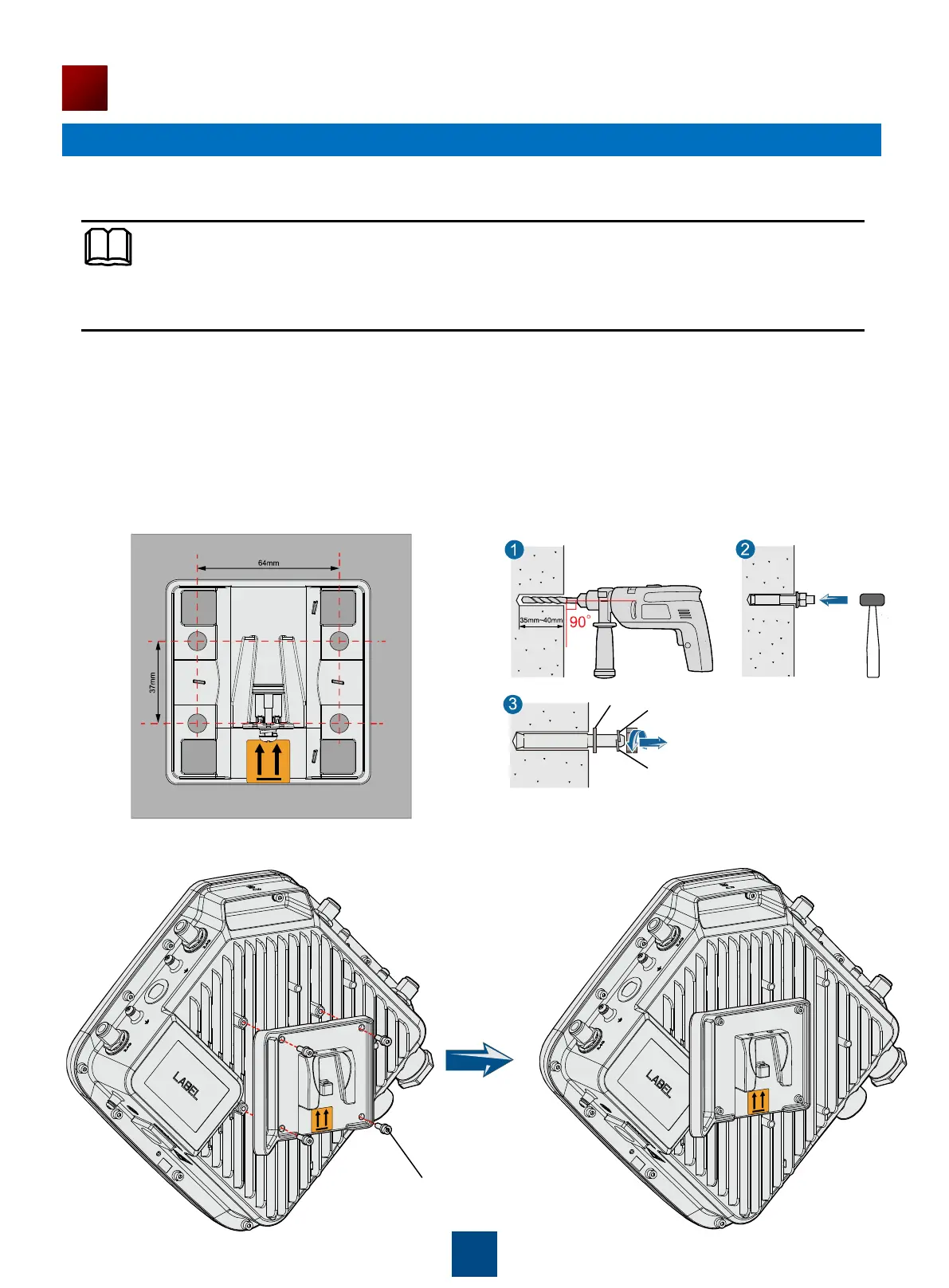

The procedures for installing all models of outdoor APs are the same unless otherwise stated. The
following figures use the AP6610DN-AGN as an example.
(1) Fix the wall-mounting bracket to the wall,
adjust the installation position, and use the
marker to mark the drilling positions where
expansion bolts are installed. (Mark the two
holes on either diagonal line on the wall-
mounting bracket.)
(2) Use 8 mm drill bit to drill 35 mm to 40 mm deep
holes in the drilling positions and install expansion
bolts. Screw the nut into the expansion tube,
hammer the expansion bolt into a hole until the flat
washer is flattened against the wall, and remove the
nuts, spring washer, and flat washer in order.
(3) Use four M4x12 hexagon socket head cap screws to fasten the wall-mounting bracket to the AP.
You need the sheet metal wall-mounting bracket and expansion bolt to install the outdoor AP
against the wall. The procedures are as follows:
Flat washer
Spring washer
Nuts
Hexagon socket
head cap screw
