Installing the AP
The procedure for installing the AP6610DN-AGN against a horizontal pole is similar to the procedure
for installing the AP6610DN-AGN against a vertical pole.

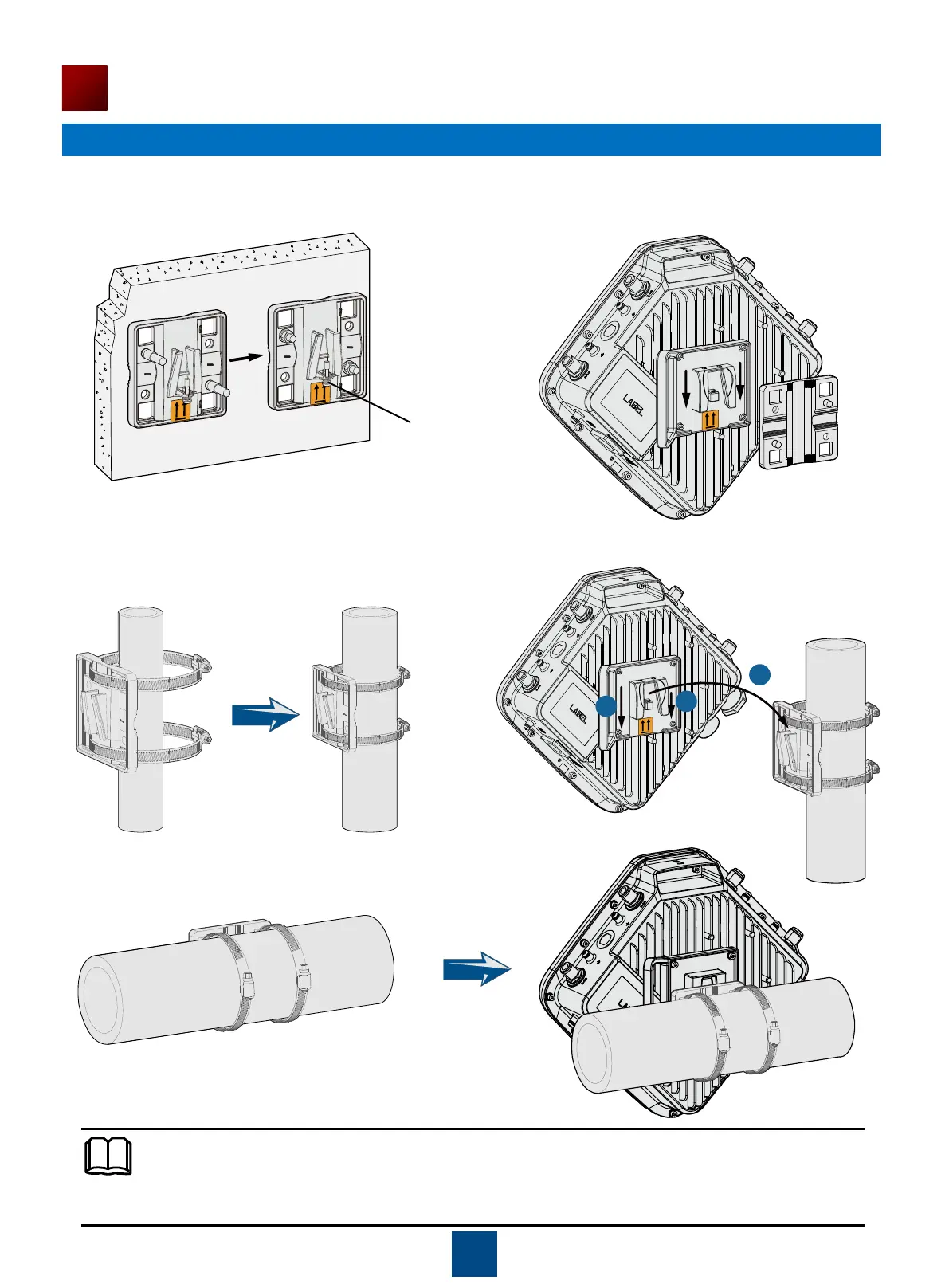

(4) Pinch the wall-mounting bracket on the
expansion bolts, and fasten the flat washer, spring
washer, and nuts in order.
(5) Slide the AP into the wall-mounting bracket
and fasten the screw on the wall-mounting
bracket.
Against the vertical pole
(1) Determine the AP installation position, slide the
hose clamp through the hole of the wall-mounting
bracket and attach it to the pole, and use the hex
key to secure screws on the hose clamp.
(2) Slide the AP into the wall-mounting bracket and
fasten the screw on the wall-mounting bracket.
1
2
2
Against the horizontal pole
Screw
