Huawei ATOM GPS - Installing the NE05 E; Scenario I: Mounting on a Pole

b
Install the multi-functional accessory
Installing the NE05E
9
1

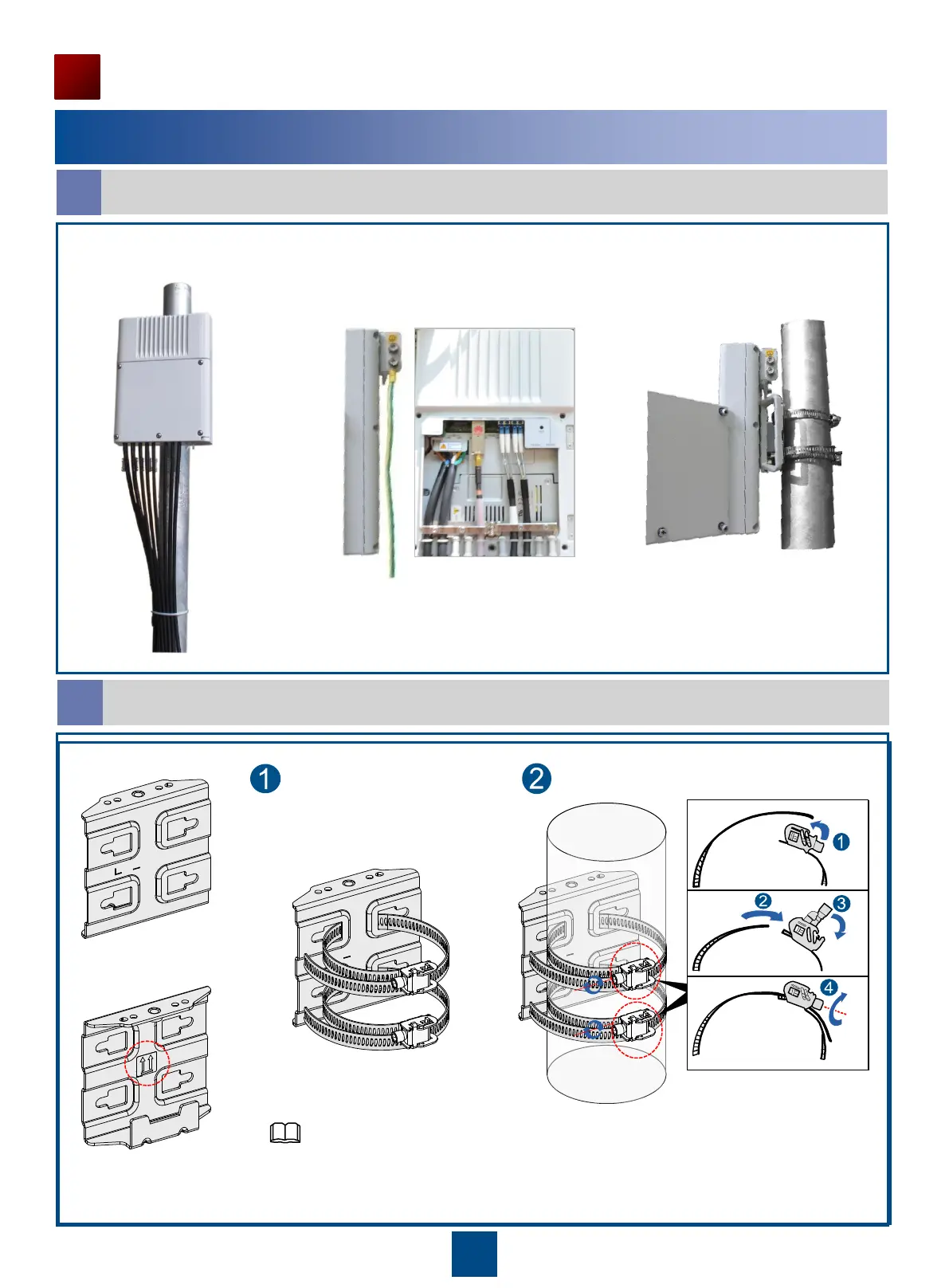

Scenario I: Mounting the NE05E on a Pole
Cable installation effect
Pole-mounting effect
Overall installation effect
a
Understand the expected installation effect
Front view
Rear view
Lead the hose clamps through
the holes in the multi-functional
accessory
Wear the hose clamps around the pole body
and tighten the hose clamps
Install the multi-functional accessory according to the direction shown in
the left figure. Ensure that the installation direction is not reversed.
NOTE
