EC2108E STB
User Guide
3 Appearance
Issue 01 (2010-01-05)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
3-1
3 Appearance
3.1 Front Panel

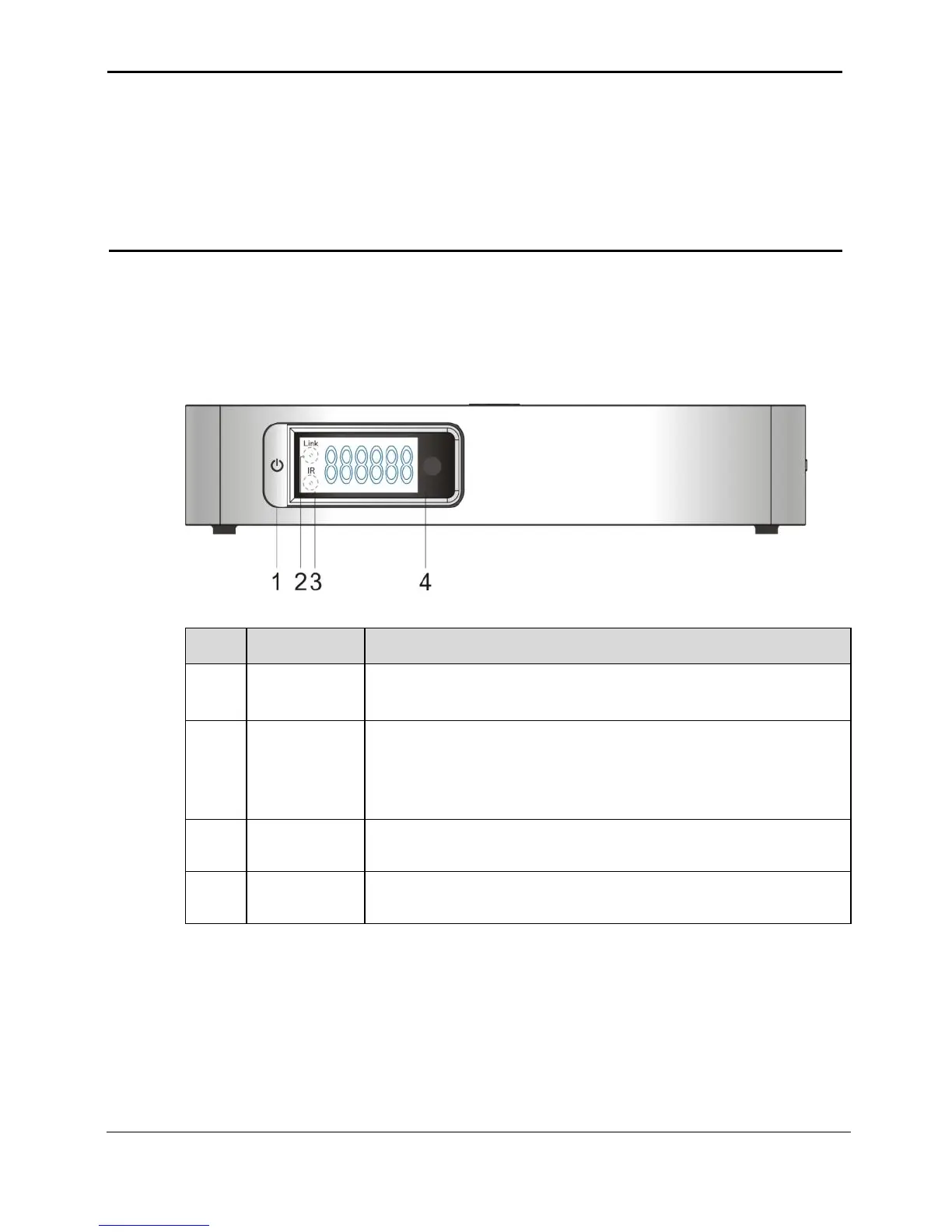

Figure 3-1 shows the front panel of the EC2108E STB.
Figure 3-1 Front panel of the EC2108E STB
No.
Name
Description
1
Power
indicator
When the EC2108E STB is working, the indicator is green.
When the EC2108E STB is standby, the indicator is red.
2
Link
indicator
When the EC2108E STB is properly connected to a network
cable, the indicator is on.
When the EC2108E STB is disconnected from a network
cable, the indicator is off.
3
IR indicator
When the EC2108E STB is receiving signals from the remote
control, the indicator blinks.
4
LED
Monitor
The working status of the EC2108E STB is displayed on the
LED monitor.
Figure 3-2 shows the uncovered front panel of the EC2108E STB.
